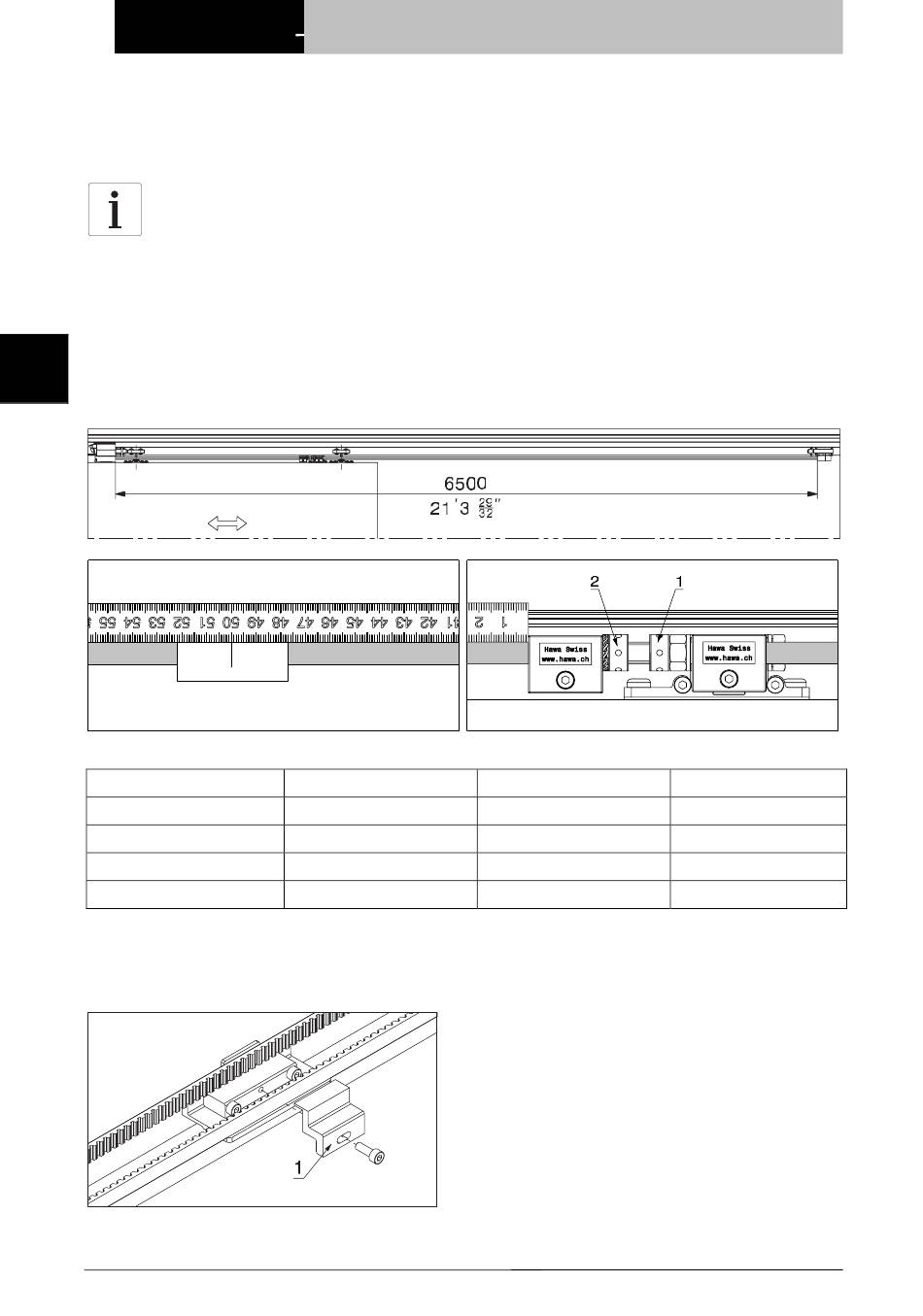

Tensioning the toothed belt

Information
1. Measure the axis-centre distance (6.50 m in our example)
2. Read the "un-stretched length" dimension from the table below (500 mm in our example).
3. Apply an adhesive strip to the appropriate area of the toothed belt.
4. Mark the adhesive strip at the right point (length before stretching).
5. Use the supplied pin to rotate the tensioning ring (1) and tighten the toothed belt to the "length after
stretching" specified in the table.
6. Secure the tensioning ring with the locking ring (2), then align the entire component parallel to the sliding
shutter, so it does not later scrape against the cover.
Axis-centre distance
0.90 to 1.99 m
2.00 to 3.99 m
4.00 to 5.99 m
6.00 to 7.50 m
«Symmetric» installations with supplementary driver
Both sliding shutters must be in the "open" position (at the end stop). Slide the front-facing piece (1) along the
driver and fix it with the securing bolt.
18 Hawa AG CH-8932 Mettmenstetten www.hawa.ch Tel. +41-1-767 91 91 Fax +41-1-767 91 78
– Frontslide 60/matic
The toothed belt must be correctly fitted and tensioned in order for the
installation to operate correctly!
Un-stretched length
700 mm (350 mm)
600 mm
550 mm
500 mm
aussen
a l'extérieur
outside
all'esterno
Length after stretching
701 mm (350.5 mm)
601 mm
551 mm
501 mm
Belt elongation
1 mm (0.5 mm)
1 mm
1 mm
1 mm
