Installation Instructions
7
H x4
P x8
N x8
4
1
C x2
x8
2
x4, x6, x8
C x2
3

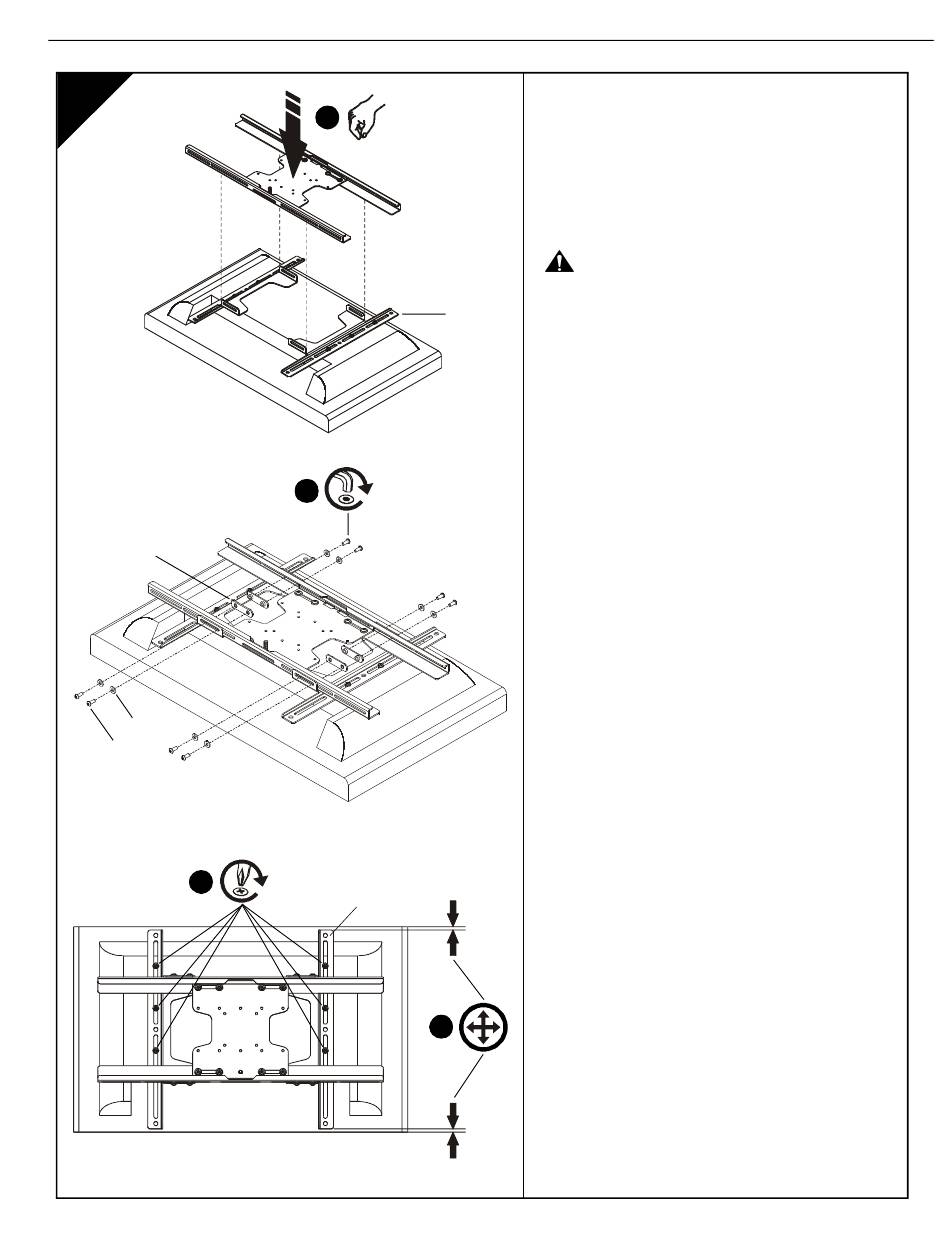

INSTALL FACEPLATE TO DISPLAY
1. Align horizontal brackets of faceplate assembly
with vertical brackets (C) and slide into position.
2. Using hex key (K), install screws (N) through
washers (P) and horizontal brackets (B) into
backing plates (H). Tighten securely.
3. Center faceplate assembly on back of display.
CAUTION:
Do not overtighten screws!
4. Tighten all screws (4, 6, or 8) through vertical
brackets (C) into display.
