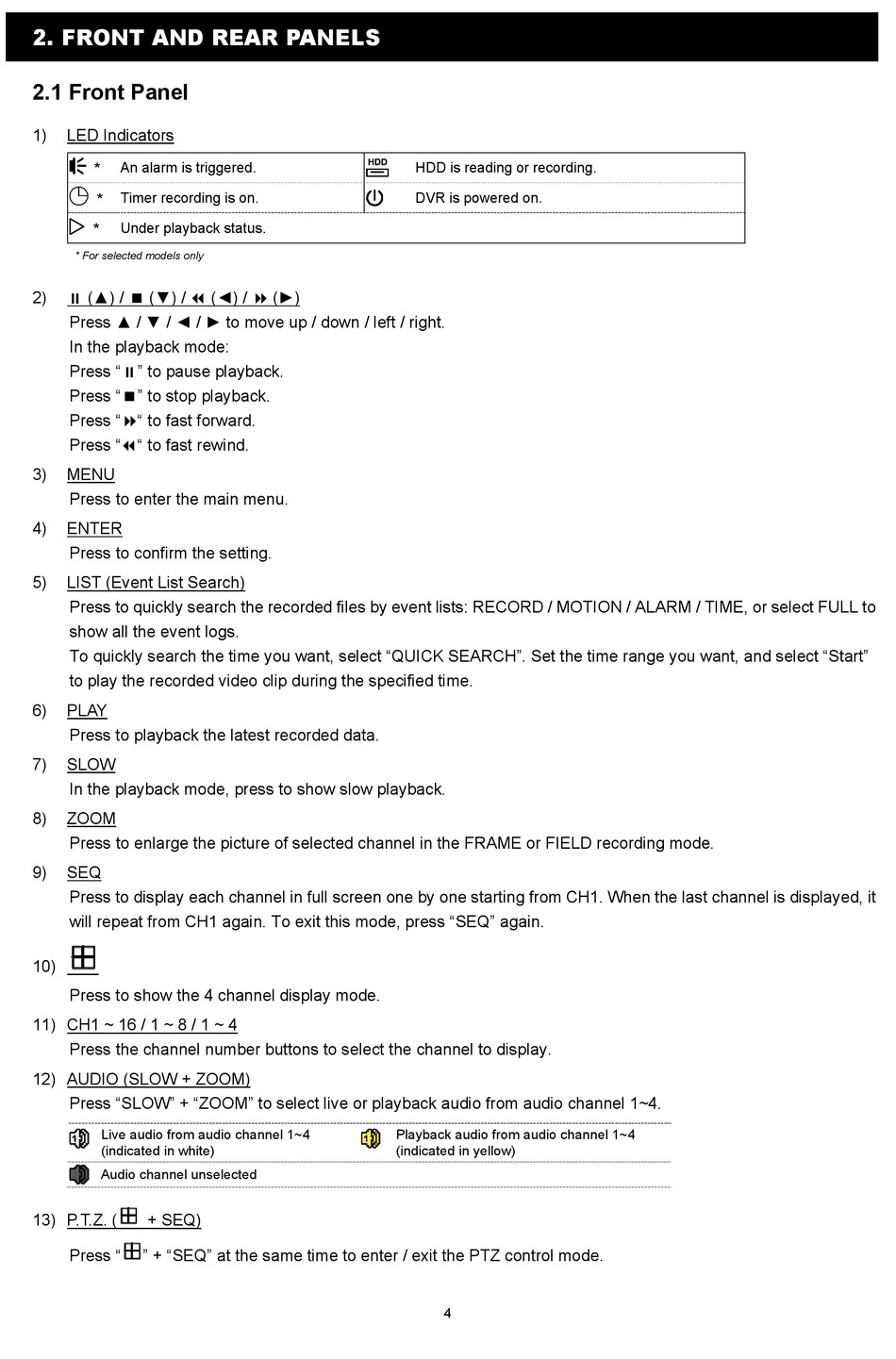

2. FRONT AND REAR PANELS

2.1 Front Panel

1) LED Indicators
* An alarm is triggered.
Timer recording is on.
*
* Under playback status.
* For selected models only
2)  (▲) /  (▼) /  (◄) /  (►)
Press ▲ / ▼ / ◄ / ► to move up / down / left / right.
In the playback mode:
Press "" to pause playback.
Press "" to stop playback.
Press "" to fast forward.
Press "" to fast rewind.
3) MENU
Press to enter the main menu.
4) ENTER
Press to confirm the setting.
5) LIST (Event List Search)
Press to quickly search the recorded files by event lists: RECORD / MOTION / ALARM / TIME, or select FULL to
show all the event logs.
To quickly search the time you want, select "QUICK SEARCH". Set the time range you want, and select "Start"
to play the recorded video clip during the specified time.
6) PLAY
Press to playback the latest recorded data.
7) SLOW
In the playback mode, press to show slow playback.
8) ZOOM
Press to enlarge the picture of selected channel in the FRAME or FIELD recording mode.
9) SEQ
Press to display each channel in full screen one by one starting from CH1. When the last channel is displayed, it
will repeat from CH1 again. To exit this mode, press "SEQ" again.
10)
Press to show the 4 channel display mode.
11) CH1 ~ 16 / 1 ~ 8 / 1 ~ 4
Press the channel number buttons to select the channel to display.
12) AUDIO (SLOW + ZOOM)
Press "SLOW" + "ZOOM" to select live or playback audio from audio channel 1~4.
Live audio from audio channel 1~4
(indicated in white)
Audio channel unselected
13) P.T.Z. ( + SEQ)
Press " " + "SEQ" at the same time to enter / exit the PTZ control mode.
HDD is reading or recording.
DVR is powered on.
Playback audio from audio channel 1~4
(indicated in yellow)
