CAMERA
DETECTION
ALERT
NETWORK
DISPLAY
RECORD
DEVICES
NOTIFY
EXIT

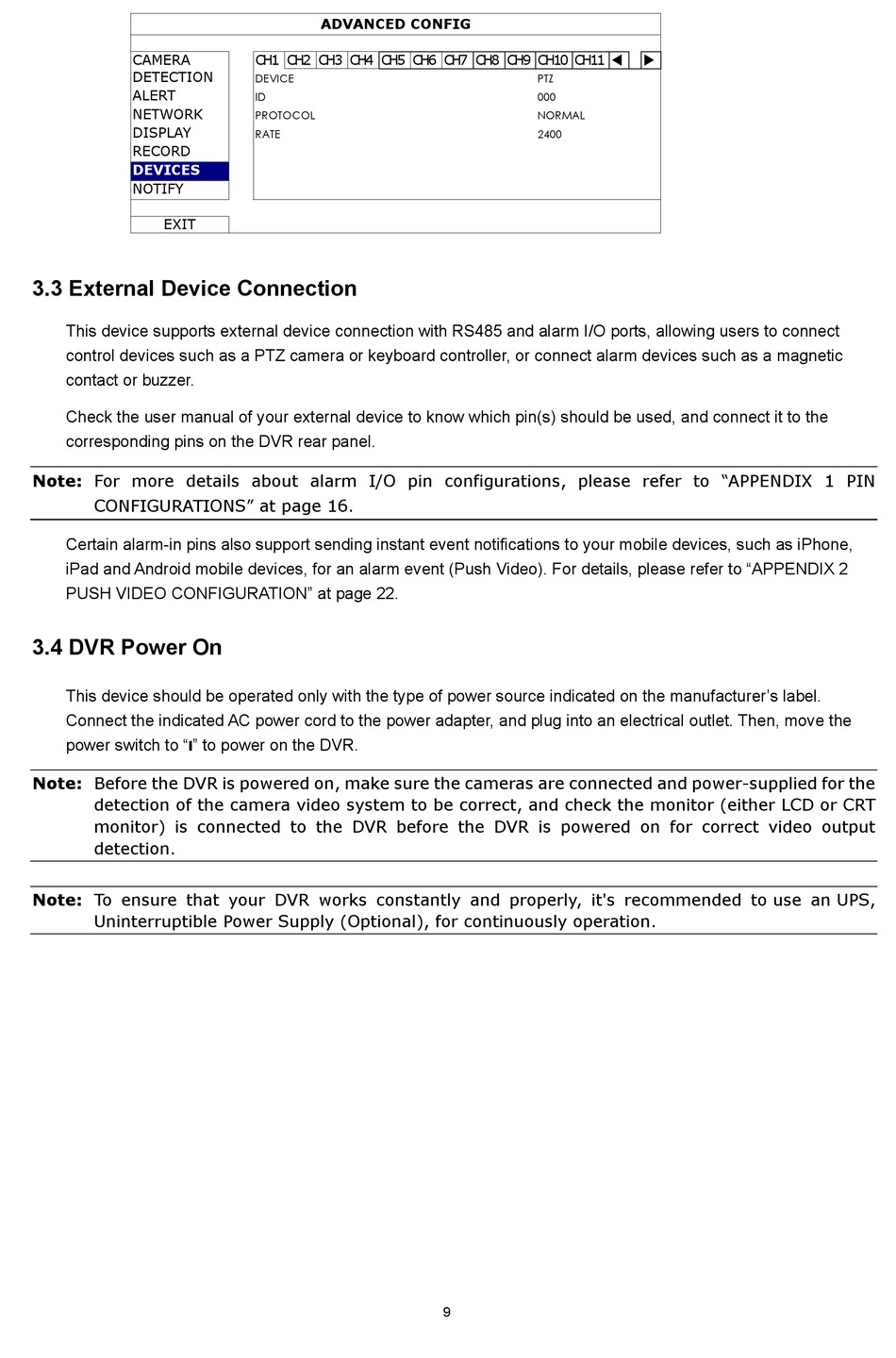

3.3 External Device Connection

This device supports external device connection with RS485 and alarm I/O ports, allowing users to connect
control devices such as a PTZ camera or keyboard controller, or connect alarm devices such as a magnetic
contact or buzzer.
Check the user manual of your external device to know which pin(s) should be used, and connect it to the
corresponding pins on the DVR rear panel.
Note: For more details about alarm I/O pin configurations, please refer to "APPENDIX 1 PIN
CONFIGURATIONS" at page 16.
Certain alarm-in pins also support sending instant event notifications to your mobile devices, such as iPhone,
iPad and Android mobile devices, for an alarm event (Push Video). For details, please refer to "APPENDIX 2
PUSH VIDEO CONFIGURATION" at page 22.

3.4 DVR Power On

This device should be operated only with the type of power source indicated on the manufacturer's label.
Connect the indicated AC power cord to the power adapter, and plug into an electrical outlet. Then, move the
power switch to " " to power on the DVR.

Note: Before the DVR is powered on, make sure the cameras are connected and power-supplied for the
detection of the camera video system to be correct, and check the monitor (either LCD or CRT
monitor) is connected to the DVR before the DVR is powered on for correct video output
detection.
Note: To ensure that your DVR works constantly and properly, it's recommended to use an UPS,
Uninterruptible Power Supply (Optional), for continuously operation.
ADVANCED CONFIG
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 
DEVICE
ID
PROTOCOL
RATE
PTZ
000
NORMAL
2400
9

