TECHNICAL DATA

See tables and "Connection chart" at the back of
the manual.

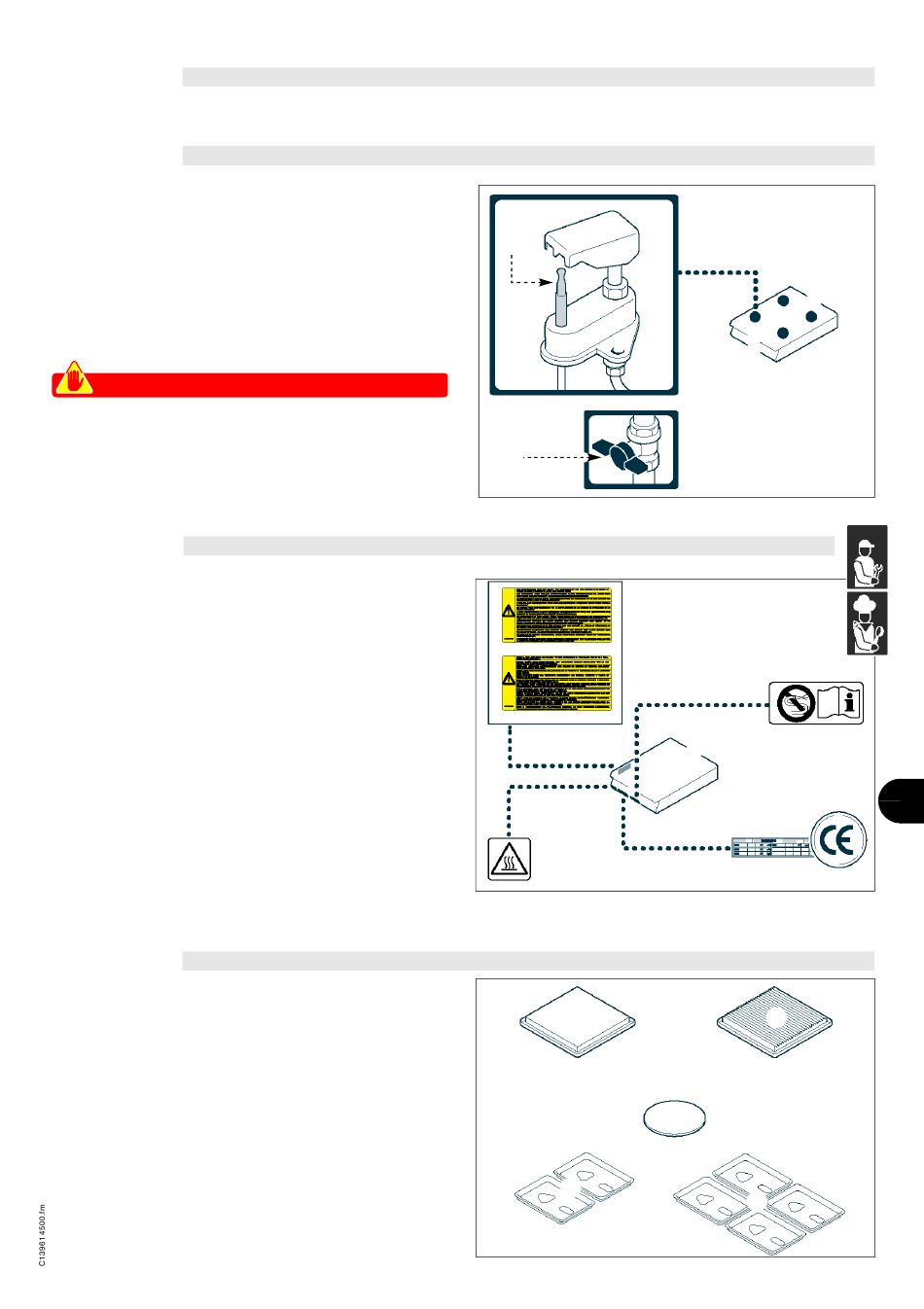

SAFETY DEVICES
Although the appliance is complete with all safety
devices, during installation and connection addi-
tional devices must be added if necessary to com-
ply with the relevant legal requirements.
The illustration shows the position of the devices.
A)Gas supply tap: for turning the connection to the
gas supply line on and off.
B)Safety thermocouple: cuts out the gas supply if the
flame goes out.
Caution - warning
Make a daily check that the safety devices are
properly installed and in good working order.
SAFETY AND INFORMATION SIGNS
The illustration shows the position of the signs provid-
ed.
A)Nameplate with manufacturer and appliance da-
ta.
B)Burn hazard: watch out for hot surfaces.
C)General hazard: when washing the appliance do
not point pressurised water jets at internal parts.
D)General hazard: read the manual carefully before
carrying out any procedure.
E)General hazard: all relevant regulations must be
complied with. "Install in compliance with the rele-
vant regulations and use in well ventilated premises
only".
F) General hazard: all relevant regulations must be
complied with. "No liability is accepted in case of fail-
ure to comply with the installation and commission-
ing instructions".
G)CE marking: indicates that the appliance is compli-
ant with the relevant norms.
OPTIONAL ACCESSORIES
The appliance can be equipped with the following
accessories on request.
A)Smooth radiant plate
B)Ribbed radiant plate
C)Reduction plate
D)Burner surround kit (VSX2)
E)Burner surround kit (VSX4)
F) "Over cupboard" installation kit
G)"Bridge" installation kit
H)Supporting beam kit
B
A
B
A
D
- 5 -
IDM-39614500400.tif
F
C
E
A
IDM-39614500500.tif
B
C
E
IDM-39614500600.tif
D
