Connecting the auxiliary temperature sensor

Always connect the auxiliary tem-
perature sensor into the connector
terminals a and b on wall RT2 plate
(Picture 45). Set the parameters for
this sensor in service group S1.
If wireless module (TX) is installed, connection of auxiliary temperature
i i i i
sensor isn't possible.
On the RT2 only MURATA type sensors can be connected .
This sensors are: outdoor sensor AF/M, room sensor PS10-12/M , im-
mersion sensor TF/M.

Error reports

Sensor malfunction
If auxiliary temp. sensor is in short circuit, the display writes out
If the auxiliary sensor is disconnected, the display writes out
Installation manual

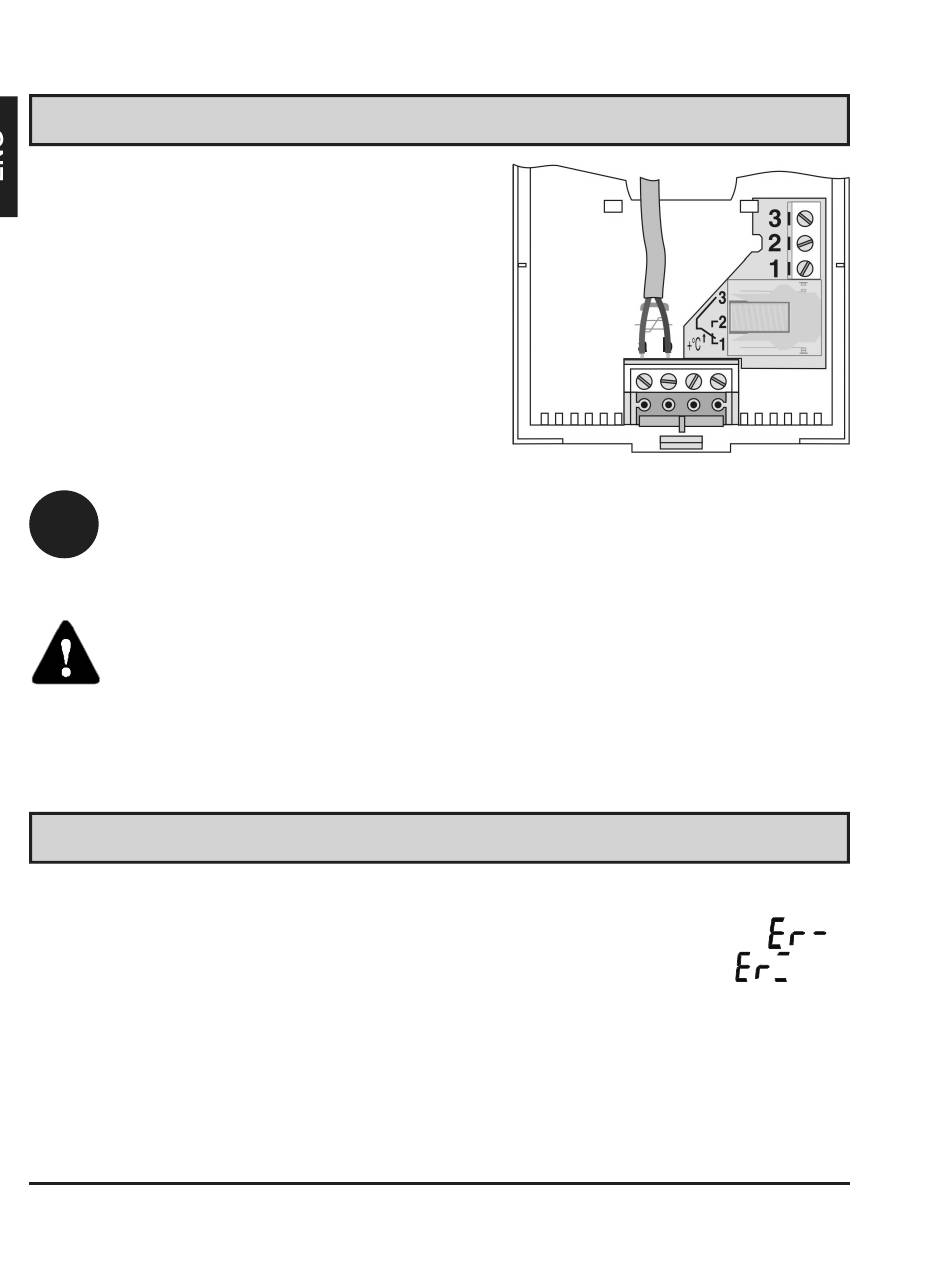

Picture 45
