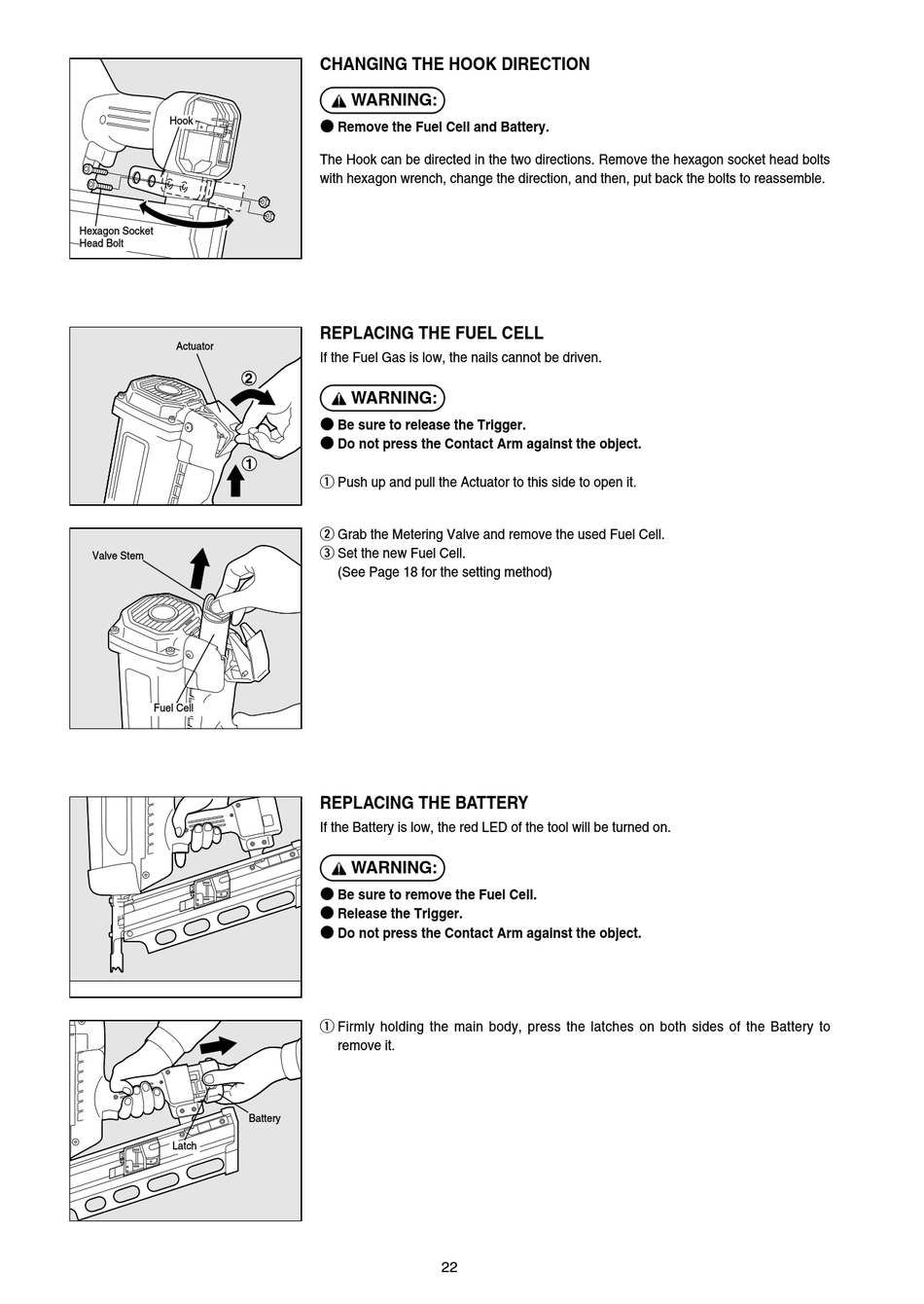

CHANGING THE HOOK DIRECTION
WARNING:
● Remove the Fuel Cell and Battery.
The Hook can be directed in the two directions. Remove the hexagon socket head bolts
with hexagon wrench, change the direction, and then, put back the bolts to reassemble.
REPLACING THE FUEL CELL
If the Fuel Gas is low, the nails cannot be driven.
2
WARNING:
● Be sure to release the Trigger.
● Do not press the Contact Arm against the object.
1
q Push up and pull the Actuator to this side to open it.
w Grab the Metering Valve and remove the used Fuel Cell.
e Set the new Fuel Cell.
(See Page 18 for the setting method)

REPLACING THE BATTERY

If the Battery is low, the red LED of the tool will be turned on.
WARNING:
● Be sure to remove the Fuel Cell.
● Release the Trigger.
● Do not press the Contact Arm against the object.
q Firmly holding the main body, press the latches on both sides of the Battery to
remove it.
