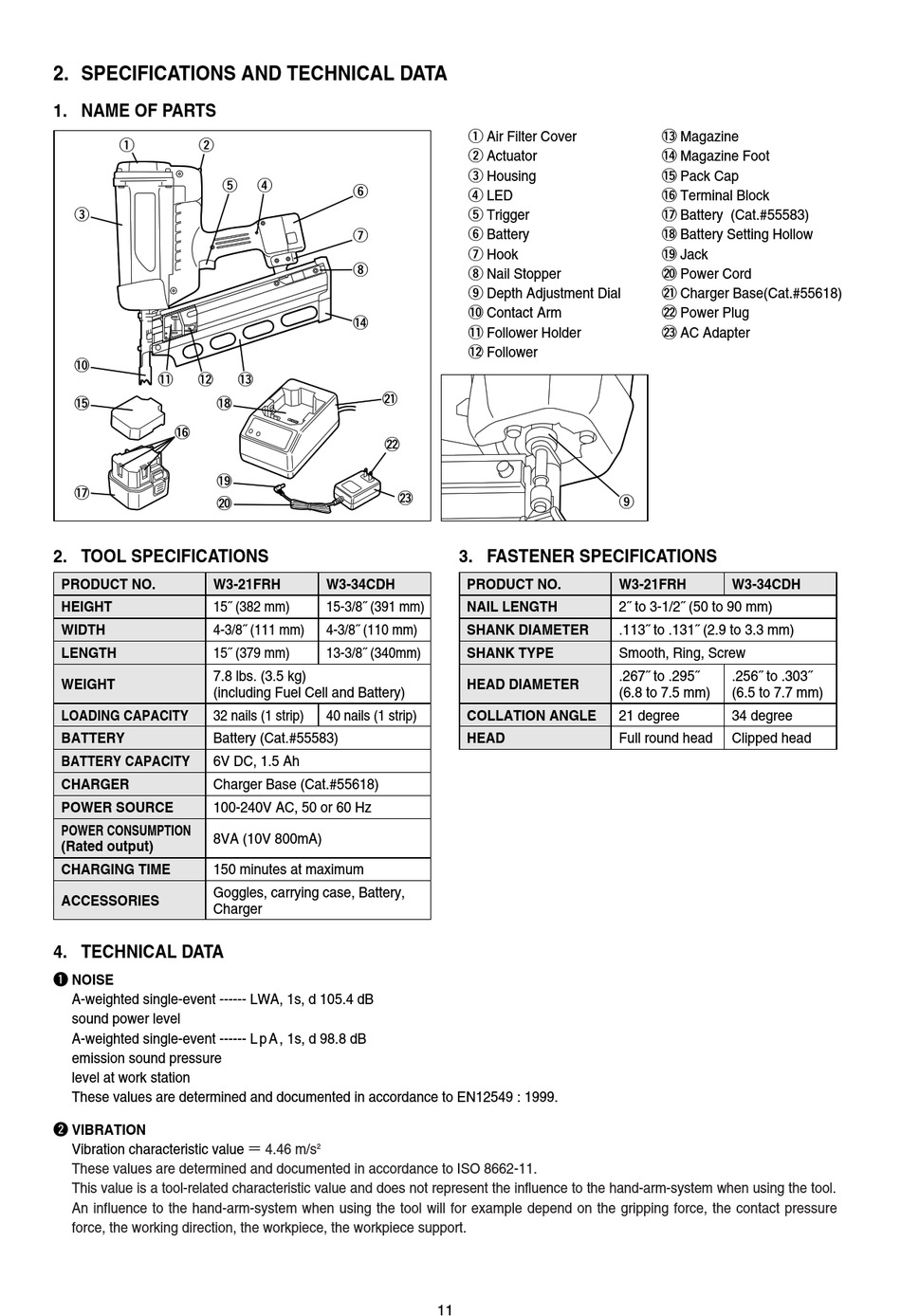

2. SPECIFICATIONS AND TECHNICAL DATA

1. NAME OF PARTS

q w
t
e
!0
!1 !2
!5 !8
!6
!9
!7
@0

2. TOOL SPECIFICATIONS

PRODUCT NO. W3-21FRH
HEIGHT 15˝ (382 mm)
WIDTH 4-3/8˝ (111 mm)
LENGTH 15˝ (379 mm)
7.8 lbs. (3.5 kg)
WEIGHT
(including Fuel Cell and Battery)
LOADING CAPACITY 32 nails (1 strip)
BATTERY Battery (Cat.#55583)
BATTERY CAPACITY 6V DC, 1.5 Ah
CHARGER Charger Base (Cat.#55618)
POWER SOURCE 100-240V AC, 50 or 60 Hz
POWER CONSUMPTION
8VA (10V 800mA)
(Rated output)
CHARGING TIME 150 minutes at maximum
Goggles, carrying case, Battery,
ACCESSORIES
Charger
4. TECHNICAL DATA
q NOISE
A-weighted single-event ------ LWA, 1s, d 105.4 dB
sound power level
A-weighted single-event ------ L p A , 1s, d 98.8 dB
emission sound pressure
level at work station
These values are determined and documented in accordance to EN12549 : 1999.
w VIBRATION
Vibration characteristic value
These values are determined and documented in accordance to ISO 8662-11.
This value is a tool-related characteristic value and does not represent the influence to the hand-arm-system when using the tool.
An influence to the hand-arm-system when using the tool will for example depend on the gripping force, the contact pressure
force, the working direction, the workpiece, the workpiece support.
r
y
u
i
!4
!3
@1
@2
@3
W3-34CDH
15-3/8˝ (391 mm)
4-3/8˝ (110 mm)
13-3/8˝ (340mm)
40 nails (1 strip)
＝ 4.46 m/s
2
q Air Filter Cover
w Actuator
e Housing
r LED
t Trigger
y Battery
u Hook
i Nail Stopper
o Depth Adjustment Dial
!0 Contact Arm
!1 Follower Holder
!2 Follower

3. FASTENER SPECIFICATIONS

PRODUCT NO.
NAIL LENGTH
SHANK DIAMETER
SHANK TYPE
HEAD DIAMETER
COLLATION ANGLE
HEAD
11
!3 Magazine
!4 Magazine Foot
!5 Pack Cap
!6 Terminal Block
!7 Battery (Cat.#55583)
!8 Battery Setting Hollow
!9 Jack
@0 Power Cord
@1 Charger Base(Cat.#55618)
@2 Power Plug
@3 AC Adapter
o
W3-21FRH W3-34CDH
2˝ to 3-1/2˝ (50 to 90 mm)
.113˝ to .131˝ (2.9 to 3.3 mm)
Smooth, Ring, Screw
.267˝ to .295˝ .256˝ to .303˝
(6.8 to 7.5 mm) (6.5 to 7.7 mm)
21 degree 34 degree
Full round head Clipped head
