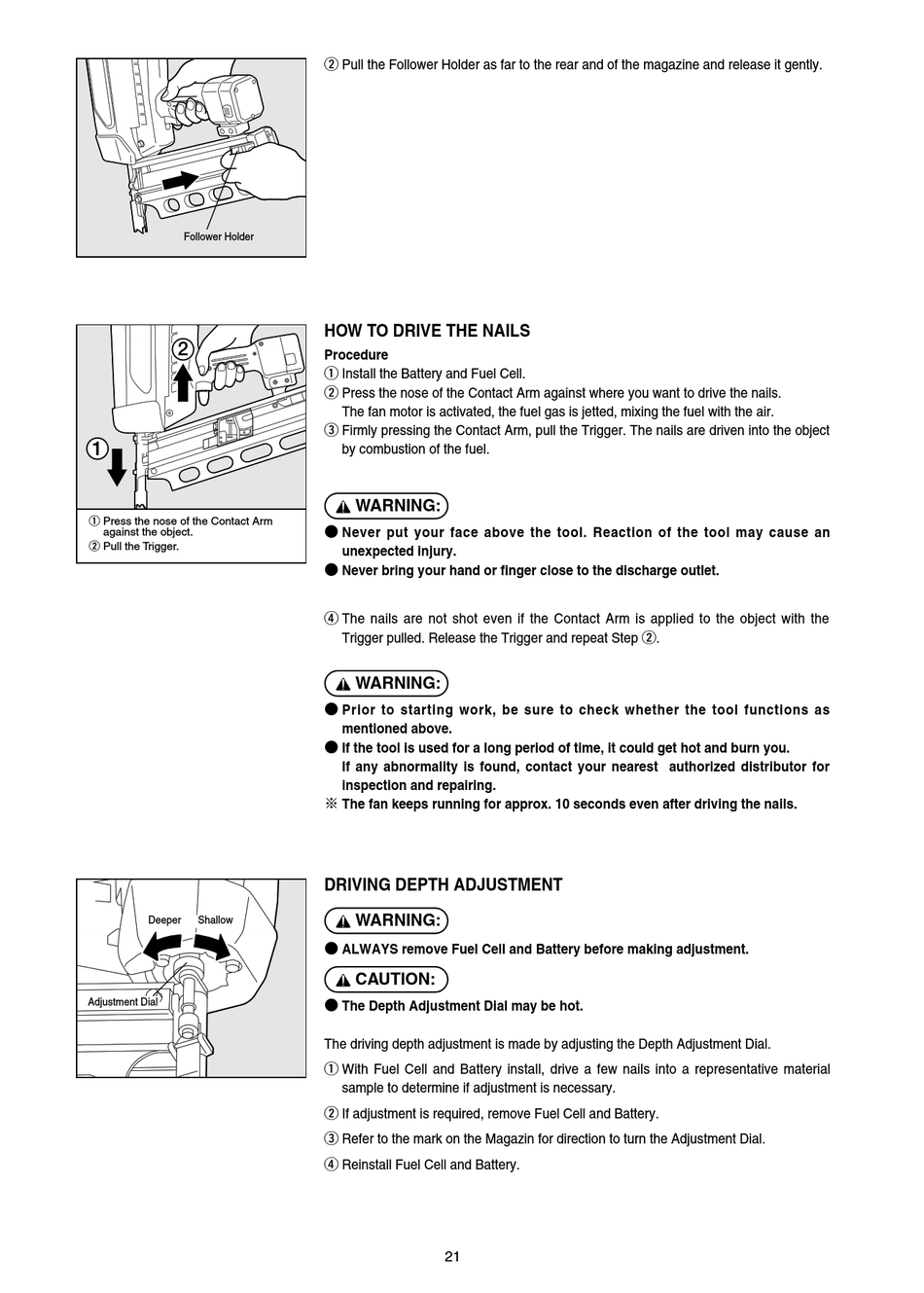

TRAK-IT TOOL W3-21FRH Betriebsanleitung Seite 21

Follower Holder
2
1
q Press the nose of the Contact Arm
against the object.
w Pull the Trigger.
Deeper Shallow
Adjustment Dial
w Pull the Follower Holder as far to the rear and of the magazine and release it gently.
HOW TO DRIVE THE NAILS
Procedure
q Install the Battery and Fuel Cell.
w Press the nose of the Contact Arm against where you want to drive the nails.
The fan motor is activated, the fuel gas is jetted, mixing the fuel with the air.
e Firmly pressing the Contact Arm, pull the Trigger. The nails are driven into the object
by combustion of the fuel.
WARNING:
● Never put your face above the tool. Reaction of the tool may cause an
unexpected injury.
● Never bring your hand or finger close to the discharge outlet.
r The nails are not shot even if the Contact Arm is applied to the object with the
Trigger pulled. Release the Trigger and repeat Step w.
WARNING:
● Prior to starting work, be sure to check whether the tool functions as
mentioned above.
● If the tool is used for a long period of time, it could get hot and burn you.
If any abnormality is found, contact your nearest authorized distributor for
inspection and repairing.
※ The fan keeps running for approx. 10 seconds even after driving the nails.
DRIVING DEPTH ADJUSTMENT
WARNING:
● ALWAYS remove Fuel Cell and Battery before making adjustment.
CAUTION:
● The Depth Adjustment Dial may be hot.
The driving depth adjustment is made by adjusting the Depth Adjustment Dial.
q With Fuel Cell and Battery install, drive a few nails into a representative material
sample to determine if adjustment is necessary.
w If adjustment is required, remove Fuel Cell and Battery.
e Refer to the mark on the Magazin for direction to turn the Adjustment Dial.
r Reinstall Fuel Cell and Battery.
