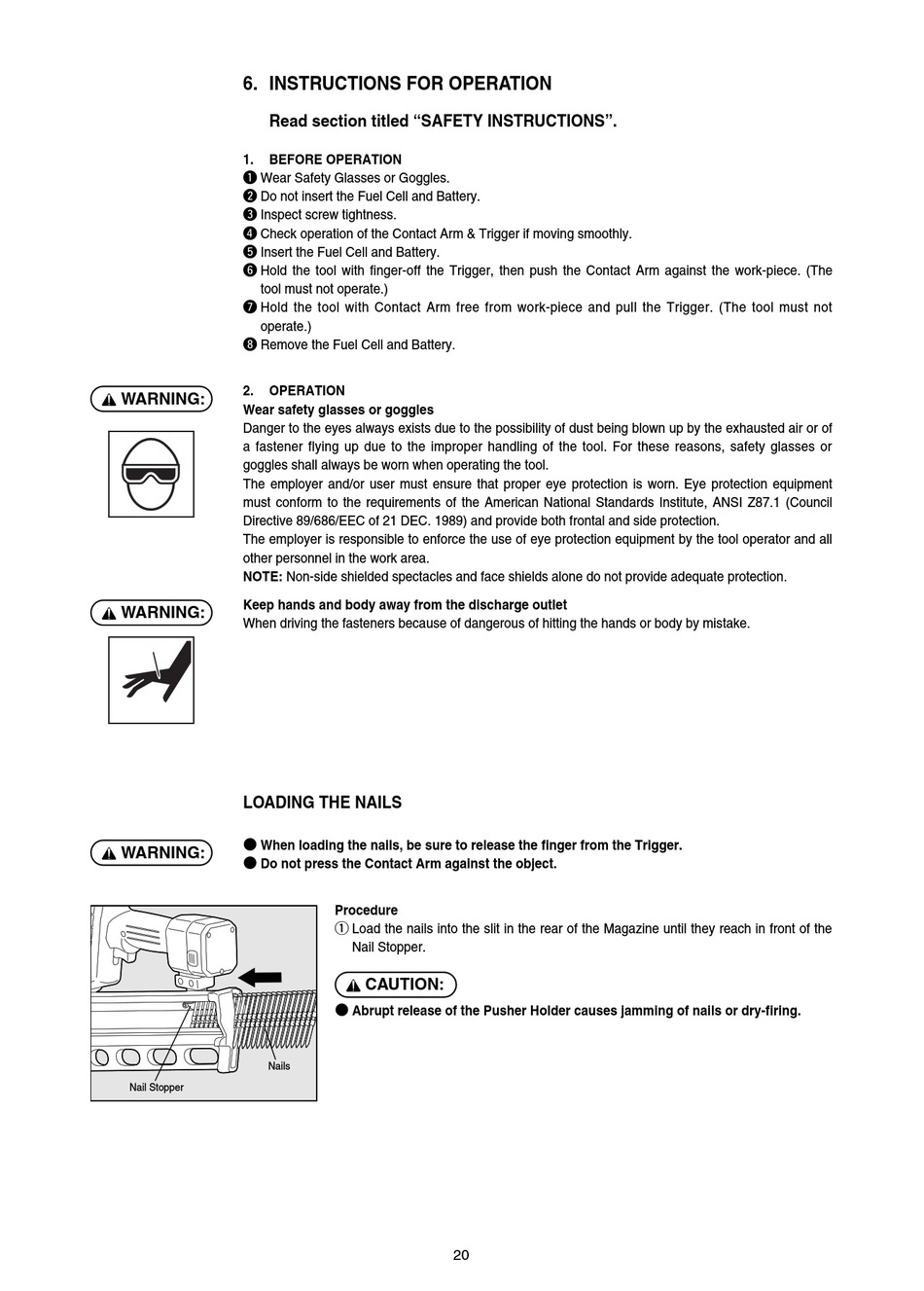

6. INSTRUCTIONS FOR OPERATION

Read section titled "SAFETY INSTRUCTIONS".
1. BEFORE OPERATION
q Wear Safety Glasses or Goggles.
w Do not insert the Fuel Cell and Battery.
e Inspect screw tightness.
r Check operation of the Contact Arm & Trigger if moving smoothly.
t Insert the Fuel Cell and Battery.
y Hold the tool with finger-off the Trigger, then push the Contact Arm against the work-piece. (The
tool must not operate.)
u Hold the tool with Contact Arm free from work-piece and pull the Trigger. (The tool must not
operate.)
i Remove the Fuel Cell and Battery.
2. OPERATION
WARNING:
Wear safety glasses or goggles
Danger to the eyes always exists due to the possibility of dust being blown up by the exhausted air or of
a fastener flying up due to the improper handling of the tool. For these reasons, safety glasses or
goggles shall always be worn when operating the tool.
The employer and/or user must ensure that proper eye protection is worn. Eye protection equipment
must conform to the requirements of the American National Standards Institute, ANSI Z87.1 (Council
Directive 89/686/EEC of 21 DEC. 1989) and provide both frontal and side protection.
The employer is responsible to enforce the use of eye protection equipment by the tool operator and all
other personnel in the work area.
NOTE: Non-side shielded spectacles and face shields alone do not provide adequate protection.
Keep hands and body away from the discharge outlet
WARNING:
When driving the fasteners because of dangerous of hitting the hands or body by mistake.
LOADING THE NAILS
● When loading the nails, be sure to release the finger from the Trigger.
WARNING:
● Do not press the Contact Arm against the object.
Nails
Nail Stopper
Procedure
q Load the nails into the slit in the rear of the Magazine until they reach in front of the
Nail Stopper.
CAUTION:
● Abrupt release of the Pusher Holder causes jamming of nails or dry-firing.
20
