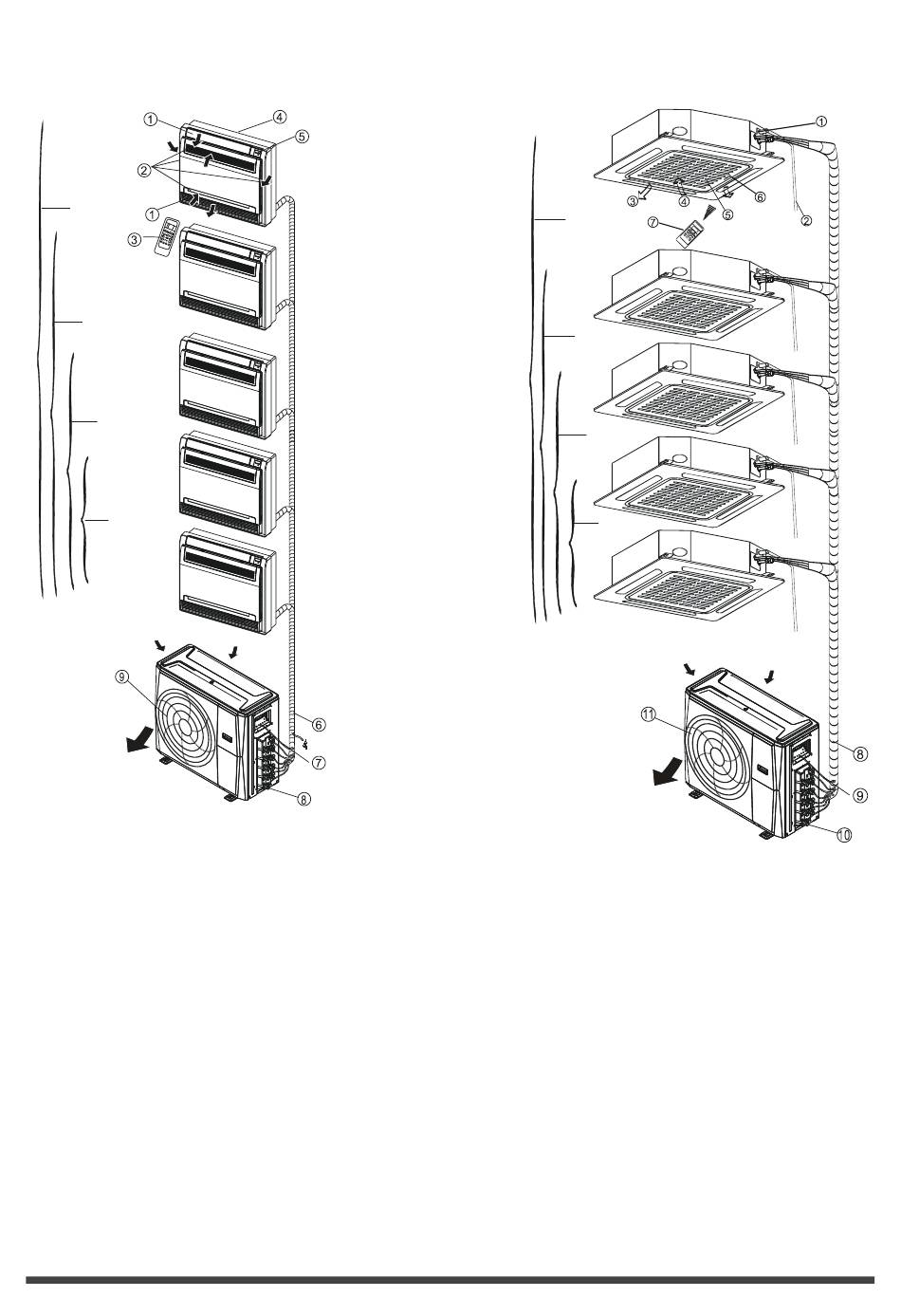

Console type
One-five
One-four
One-three
One-twin
Fig. 2.3
Indoor unit
1. Airflow louver (at air outlet)
2. Air inlet (containing air filter)
3. Remote controller
4. Installation part
5. Display panel
Outdoor unit
6. Drain hose, refrigerant connecting pipe
7. Connective cable
8. Stop valve
9. Fan hood
Compact four-way cassette type
One-five
One-four
One-three
One-twin
Fig. 2.4
Indoor unit
1. Drain pump(drain water from
indoor unit) (optional)
2. Drain hose (optional)
3. Air outlet
4. Air inlet
5. Air-in grill
6. Display panel
7. Remote controller
Outdoor unit
8. refrigerant connecting pipe
9. Connective cable
10. Stop valve
11. Fan hood
