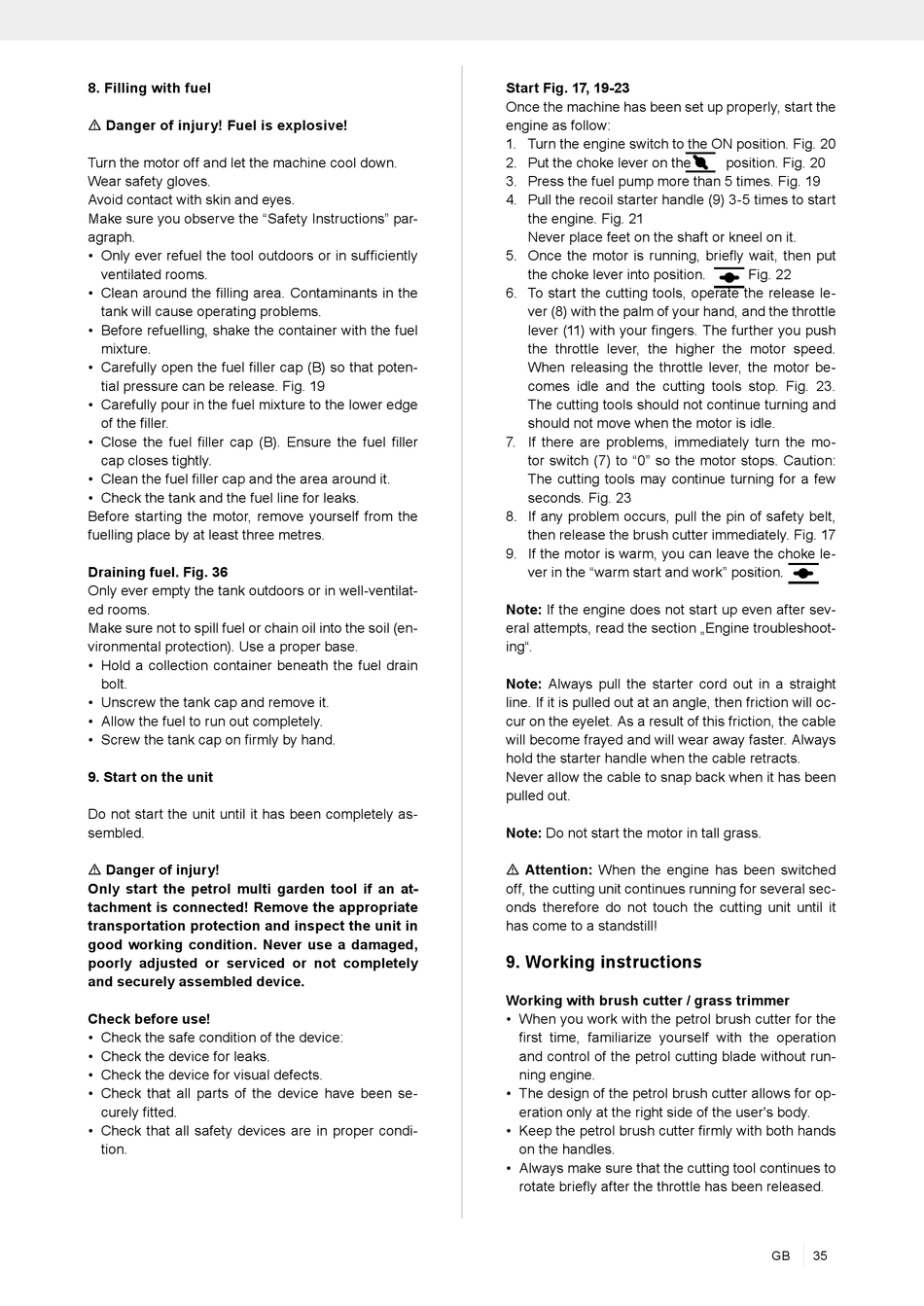

8. Filling with fuel
m Danger of injury! Fuel is explosive!
Turn the motor off and let the machine cool down.
Wear safety gloves.
Avoid contact with skin and eyes.
Make sure you observe the "Safety Instructions" par-
agraph.
• Only ever refuel the tool outdoors or in sufficiently
ventilated rooms.
• Clean around the filling area. Contaminants in the
tank will cause operating problems.
• Before refuelling, shake the container with the fuel
mixture.
• Carefully open the fuel filler cap (B) so that poten-
tial pressure can be release. Fig. 19
• Carefully pour in the fuel mixture to the lower edge
of the filler.
• Close the fuel filler cap (B). Ensure the fuel filler
cap closes tightly.
• Clean the fuel filler cap and the area around it.
• Check the tank and the fuel line for leaks.
Before starting the motor, remove yourself from the
fuelling place by at least three metres.
Draining fuel. Fig. 36
Only ever empty the tank outdoors or in well-ventilat-
ed rooms.
Make sure not to spill fuel or chain oil into the soil (en-
vironmental protection). Use a proper base.
• Hold a collection container beneath the fuel drain
bolt.
• Unscrew the tank cap and remove it.
• Allow the fuel to run out completely.
• Screw the tank cap on firmly by hand.
9. Start on the unit
Do not start the unit until it has been completely as-
sembled.
m Danger of injury!
Only start the petrol multi garden tool if an at-
tachment is connected! Remove the appropriate
transportation protection and inspect the unit in
good working condition. Never use a damaged,
poorly adjusted or serviced or not completely
and securely assembled device.
Check before use!
• Check the safe condition of the device:
• Check the device for leaks.
• Check the device for visual defects.
• Check that all parts of the device have been se-
curely fitted.
• Check that all safety devices are in proper condi-
tion.
Start Fig. 17, 19-23
Once the machine has been set up properly, start the
engine as follow:
1. Turn the engine switch to the ON position. Fig. 20
2. Put the choke lever on the
3. Press the fuel pump more than 5 times. Fig. 19
4. Pull the recoil starter handle (9) 3-5 times to start
the engine. Fig. 21
Never place feet on the shaft or kneel on it.
5. Once the motor is running, briefly wait, then put
the choke lever into position.
6. To start the cutting tools, operate the release le-
ver (8) with the palm of your hand, and the throttle
lever (11) with your fingers. The further you push
the throttle lever, the higher the motor speed.
When releasing the throttle lever, the motor be-
comes idle and the cutting tools stop. Fig. 23.
The cutting tools should not continue turning and
should not move when the motor is idle.
7. If there are problems, immediately turn the mo-
tor switch (7) to "0" so the motor stops. Caution:
The cutting tools may continue turning for a few
seconds. Fig. 23
8. If any problem occurs, pull the pin of safety belt,
then release the brush cutter immediately. Fig. 17
9. If the motor is warm, you can leave the choke le-
ver in the "warm start and work" position.
Note: If the engine does not start up even after sev-
eral attempts, read the section „Engine troubleshoot-
ing".
Note: Always pull the starter cord out in a straight
line. If it is pulled out at an angle, then friction will oc-
cur on the eyelet. As a result of this friction, the cable
will become frayed and will wear away faster. Always
hold the starter handle when the cable retracts.
Never allow the cable to snap back when it has been
pulled out.
Note: Do not start the motor in tall grass.
m Attention: When the engine has been switched
off, the cutting unit continues running for several sec-
onds therefore do not touch the cutting unit until it
has come to a standstill!

9. Working instructions

Working with brush cutter / grass trimmer
• When you work with the petrol brush cutter for the
first time, familiarize yourself with the operation
and control of the petrol cutting blade without run-
ning engine.
• The design of the petrol brush cutter allows for op-
eration only at the right side of the user's body.
• Keep the petrol brush cutter firmly with both hands
on the handles.
• Always make sure that the cutting tool continues to
rotate briefly after the throttle has been released.
position. Fig. 20
Fig. 22
GB 35
