Hardware Setup
(7).

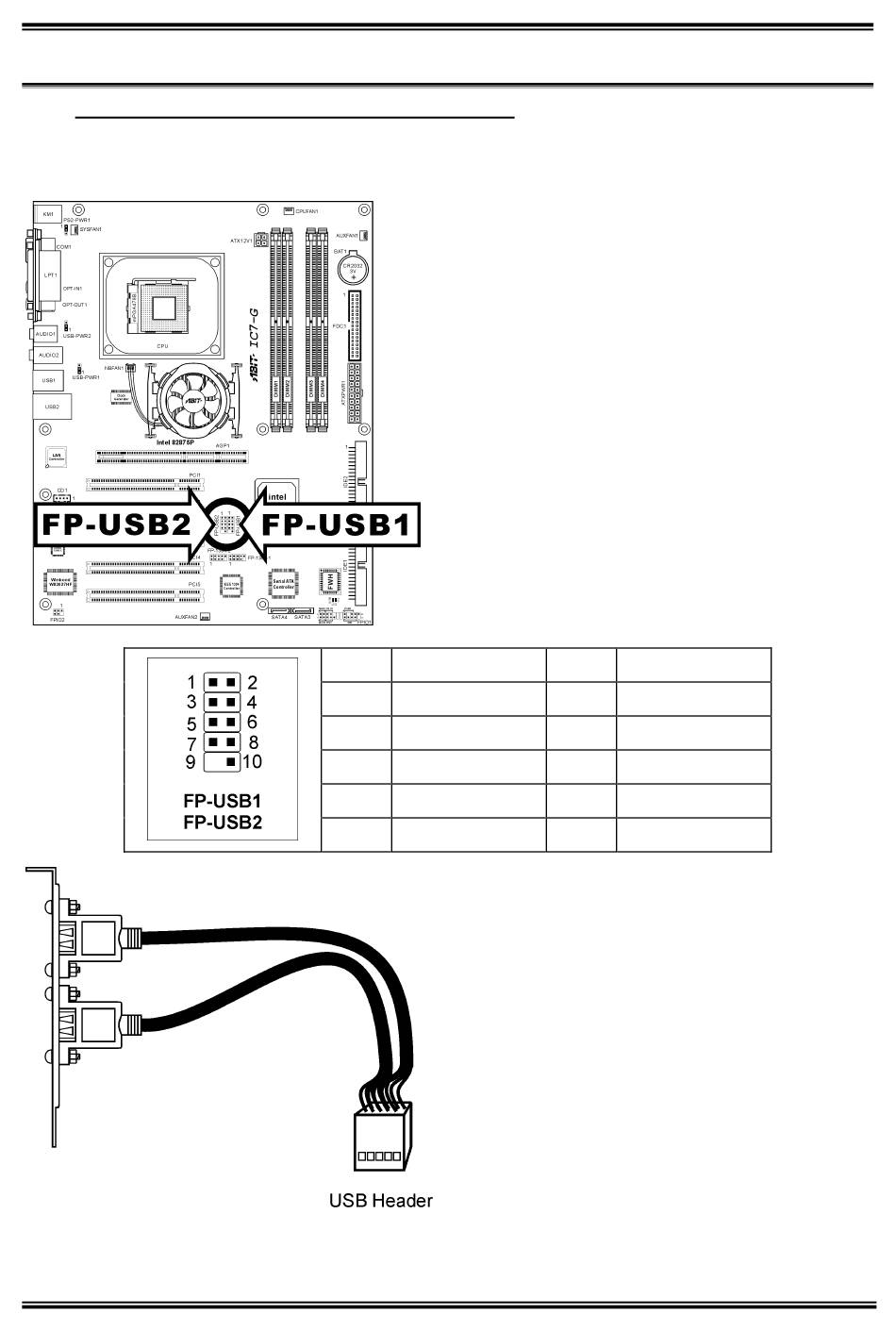

Additional USB Port Headers [FP-USB1, FP-USB2]

These headers each provide 2 additional USB 2.0 ports connection through an USB cable designed for
USB 2.0 specifications.
Pin Pin Assignment
1 VCC
3 Data0 -
5 Data0 +
7 Ground
9 NC
Pin Pin Assignment
2 VCC
4 Data1 -
6 Data1 +
8 Ground
10 NC
2-11
