2-18 Chapter 2

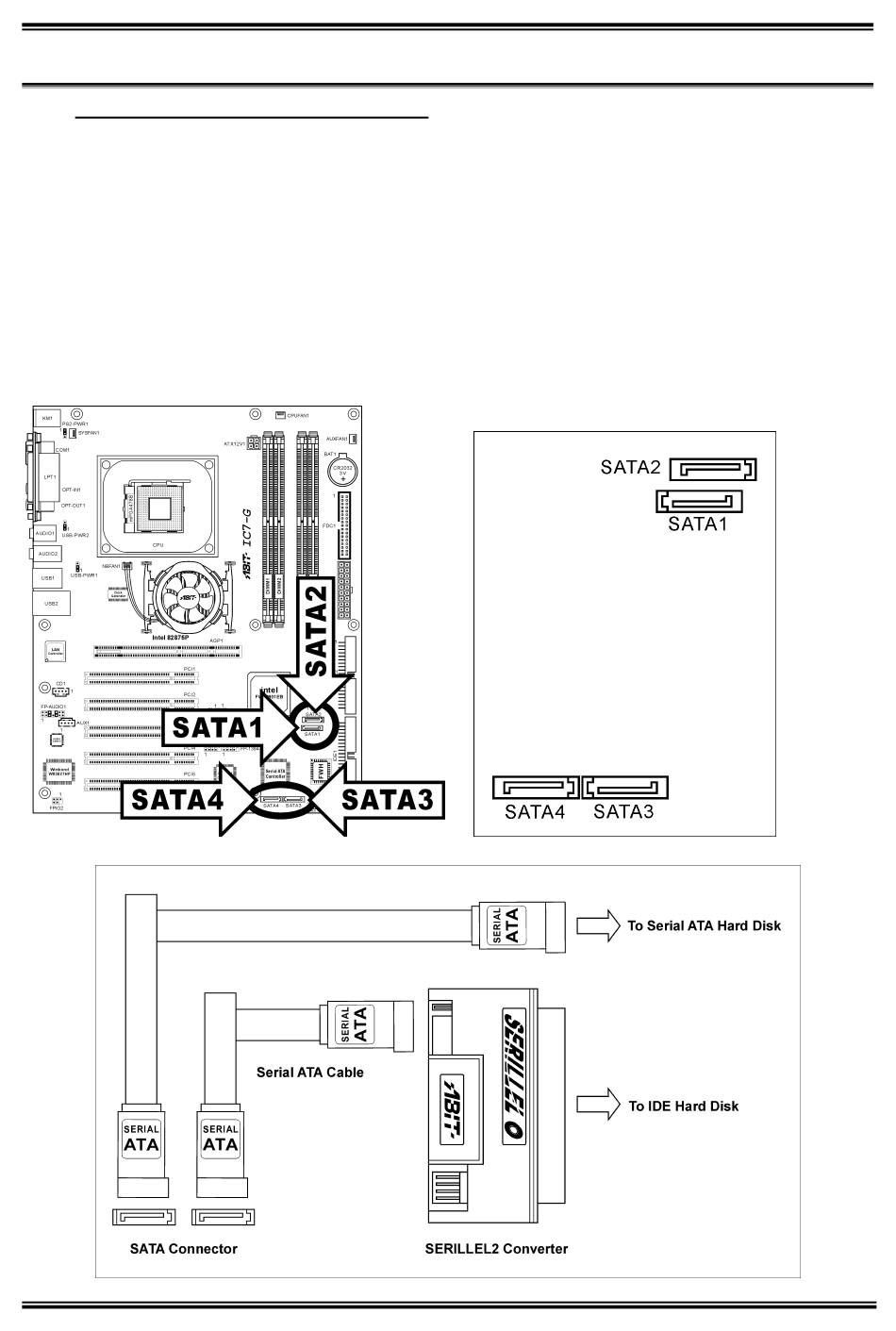

(15). Serial ATA Connectors [SATA1~SATA4]

These connectors are provided to attach one Serial ATA device at each channel via Serial ATA cable. It is
also possible to connect legacy IDE hard disk through an optional SERILLEL2 Converter.
SATA1 and SATA2 are controlled by ICH5R South Bridge. To enable the SATA1 and SATA2 controller,
you have to enable the item "OnChip Serial ATA" first in the BIOS menu of "OnChip IDE Device".
SATA3 and SATA4 are controlled by Silicon Image PCI Chip. To enable the SATA3 and SATA4
controller, you have to enable the item "Serial ATA Controller" first in the BIOS menu of "Onboard PCI
Device".
For more information on how to configure the function mode for SATA1 and SATA2, please refer to the
item "Serial ATA 1 Mode" and "Serial ATA 2 Mode" in the BIOS menu of "OnChip IDE Device".
IC7-G
