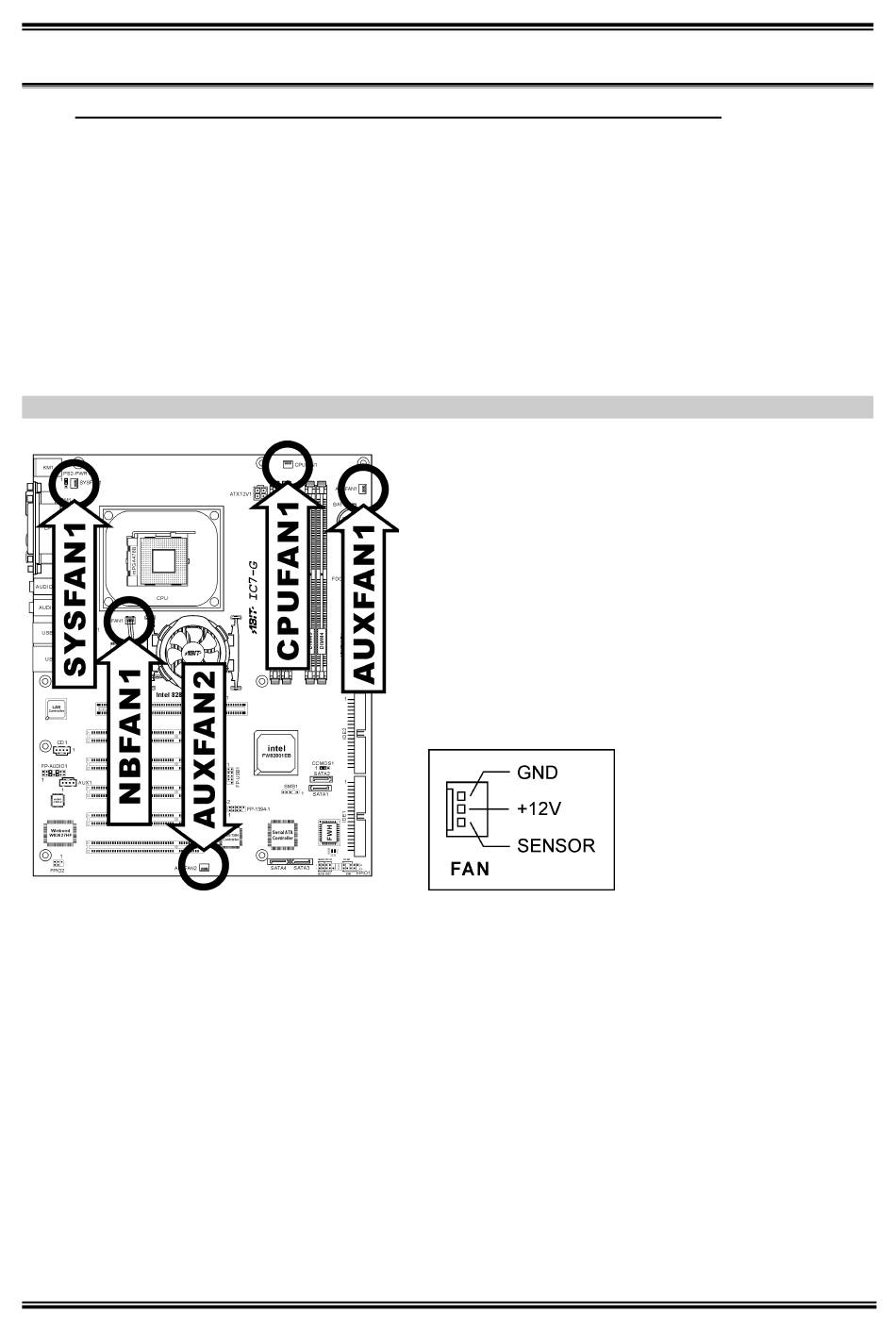

FAN Connectors [CPUFAN1, NBFAN1, SYSFAN1, AUXFAN1, AUXFAN2]

These 3-pin connectors each provide power to the cooling fans installed in your system.
The CPU must be kept cool by using a powerful fan with heatsink. The system is capable of monitoring
the speed of the CPU fan.
•
CPUFAN1: CPU Fan
•
NBFAN1: Chipset Fan
•
SYSFAN1: System Fan
•
AUXFAN1, AUXFAN2: Auxiliary Fan (No monitoring support in BIOS menu)
WARNING: These fan connectors are not jumpers. DO NOT place jumper caps on these connectors.
