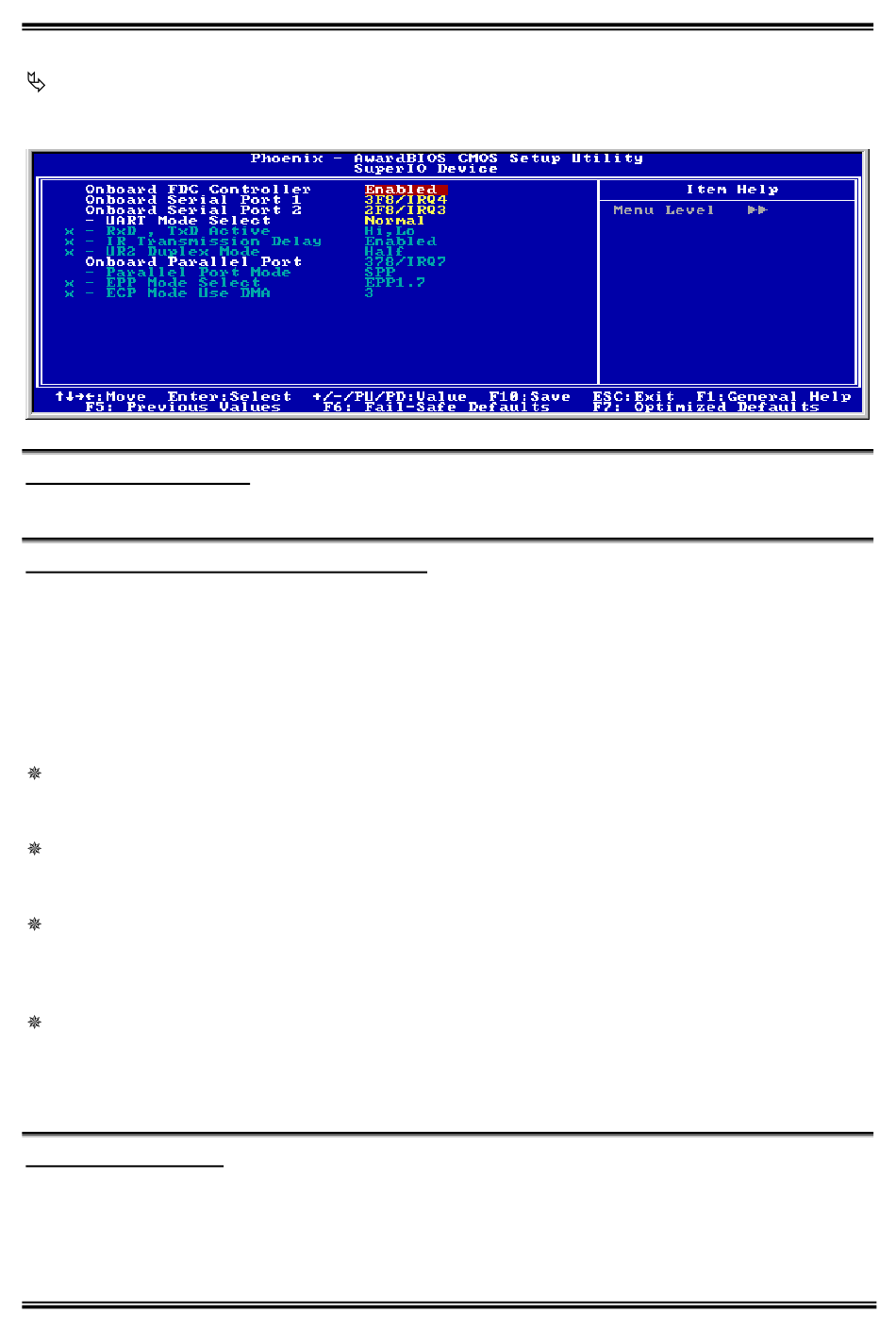

BIOS Setup
SuperIO Device:
Click <Enter> key to enter its submenu:
Onboard FDC Controller:
This option enables or disables the onboard FDC controller.
Onboard Serial Port 1 / Onboard Serial Port 2:
This item determines which I/O addresses the onboard Serial Port 1 & 2 controller will access.
[Auto]: The system automatically select an I/O address for the onboard Serial Port 1 & 2.
[3F8/COM1, 2F8/COM2, 3E8/COM3, 2E8/COM4]: Allows you to manually select an I/O address for
the onboard Serial Port 1 & 2.
[Disabled]: Disables the onboard Serial Port 1 and/or 2.
UART Mode Select:
This item selects the Infrared (IR) function mode.
RxD, TxD Active:
This item sets the IR transmission/reception polarity.
IR Transmission Delay:
This option enables or disables the IR transmission delay. When set to [Enabled], the transmission will be
slower. This is recommended when transmission problem arise.
UR2 Duplex Mode:
This item selects the duplex mode required by the IR device connected to the IR port. Full-duplex mode
permits simultaneous two-direction transmission. Half-duplex mode permits transmission in one direction
only at a time. Refer to your IR KIT user's guide to find out which setting is correct.
Onboard Parallel Port:
This item specifies the I/O address used by the parallel port.
[Disabled]: This option prevents the parallel port from accessing any system resources. When the value
of this option is set to [Disabled], the printer port becomes unavailable.
