Hardware Setup

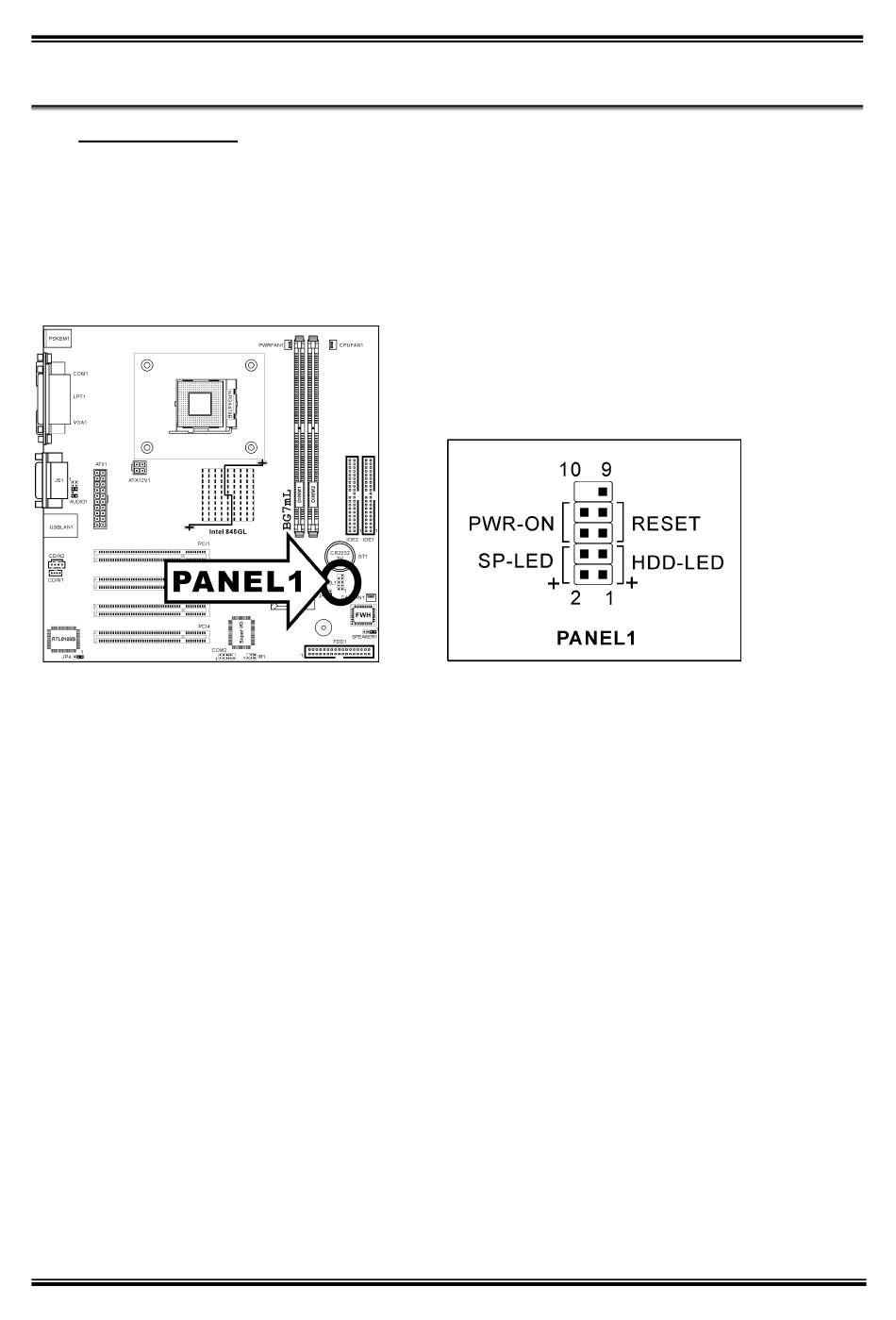

(13). PANEL1 Header
This header is used for connecting switches and LED indicators on the chassis front panel.
Watch the power LED pin position and orientation. The mark "+" align to the pin in the figure
below stands for positive polarity for the LED connection. Please pay attention to connect
these headers. A wrong orientation will only cause the LED not lighting, but a wrong
connection of the switches could cause system malfunction.
•
Pin 1-3: HDD-LED
Connects to the HDD LED cable of chassis front panel.
•
Pin 5-7: RESET
Connects to the Reset Switch cable of chassis front panel.
•
Pin 2-4: SP-LED
Connects to the Suspend LED cable (if there is one) of chassis front panel.
•
Pin 6-8: PWR-ON
Connects to the Power Switch cable of chassis front panel.
3-11
User's Manual
