3-2
3-2. Install Pentium
This motherboard provides a ZIF (Zero
Insertion Force) Socket 478 to install Intel
®
Pentium
4 CPU. The CPU you bought should
have a kit of heatsink and cooling fan along
with. If that's not the case, buy one specially
designed for Pentium
refer to figure 2-3 to install CPU.
1. Locate the Socket 478. Fasten the heatsink
supporting-base onto the motherboard.
ATTENTION: If you are using chassis
specially designed for Pentium
attention to the location of metal studs or
spacers if they are already installed on the
chassis. Be careful not let the metal studs or
spacers contact the printed circuit wire or parts
on the PCB.
2. Pull the CPU socket lever sideways away
from the socket and then upwards to 90
degree. Insert the CPU with the correct
orientation. Do not use extra force to insert
CPU; it only fit in one orientation. Closing
down the socket lever while holding down the
CPU.
3. Put the heatsink faces down onto the CPU
until it completely covers the CPU.
4. Put the heatsink supporting-cover onto the
heatsink. Make sure all the four locking clasp
at each side of the supporting cover reach in
the locking holes.
5. Push down the retaining clip at both sides of
the supporting cover to lock up together with
the supporting base. Watch out the direction
for pushing down the clip.
6. The heatsink supporting cover and base
should now firmly locking up with each other
with the heatsink inside.
ATTENTION: Do not forget to set the correct
bus frequency and multiple for your processor.
BG7mL
®
4 CPU and Heatsink Supporting-Base
®
4 Socket 478. Please
®
4, please pay
®

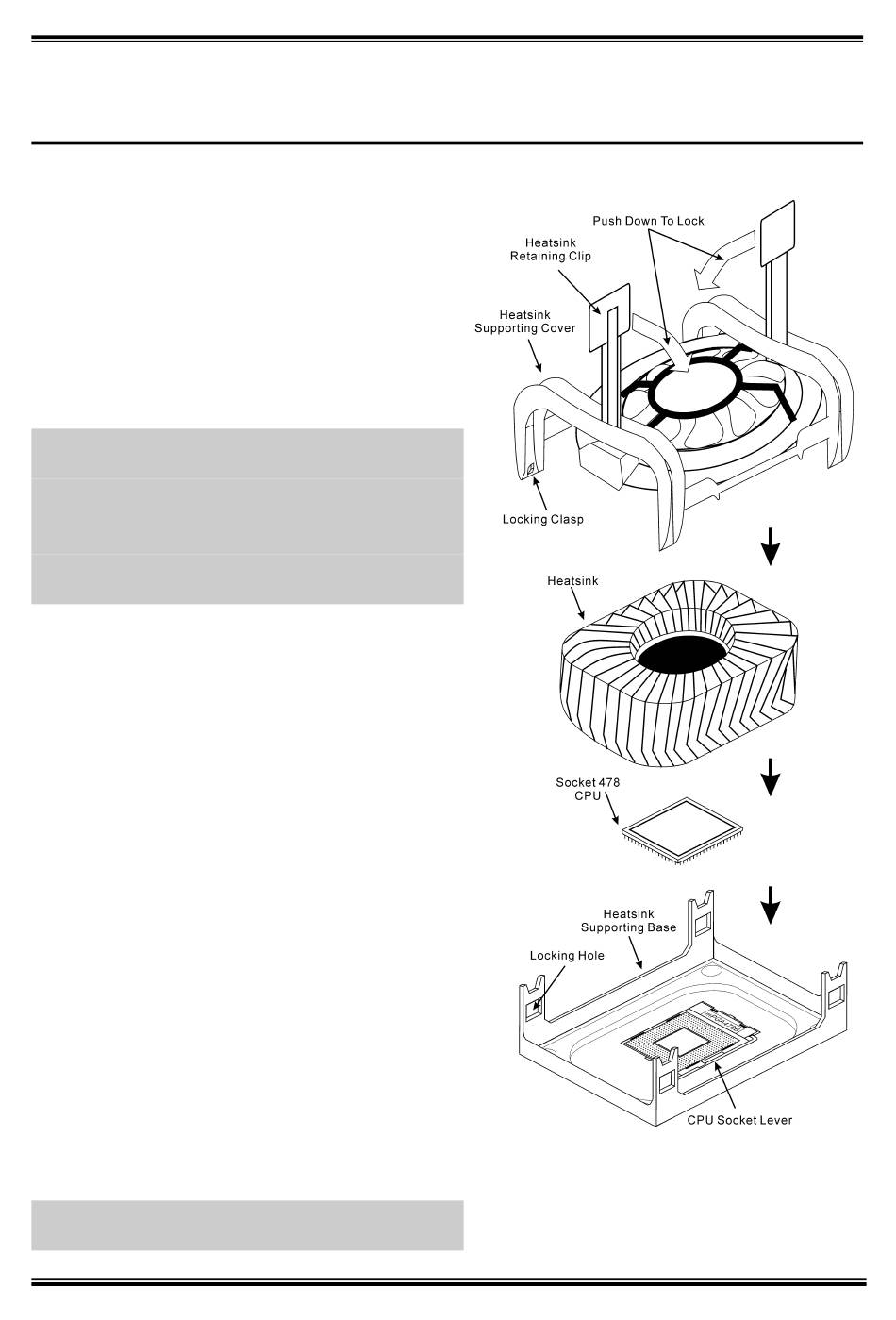

Figure 2-3. Installing P4 Socket 478
CPU and its heatsink into supporting
base.
Chapter 3
