4.5 Cover detaching
1. Remove the embellisher (A) situated in the cover.
2. Unscrew the cover fixation screw (B).
3. Remove the cover by sliding it upwards and outwards.
4.6. Controls and indicators

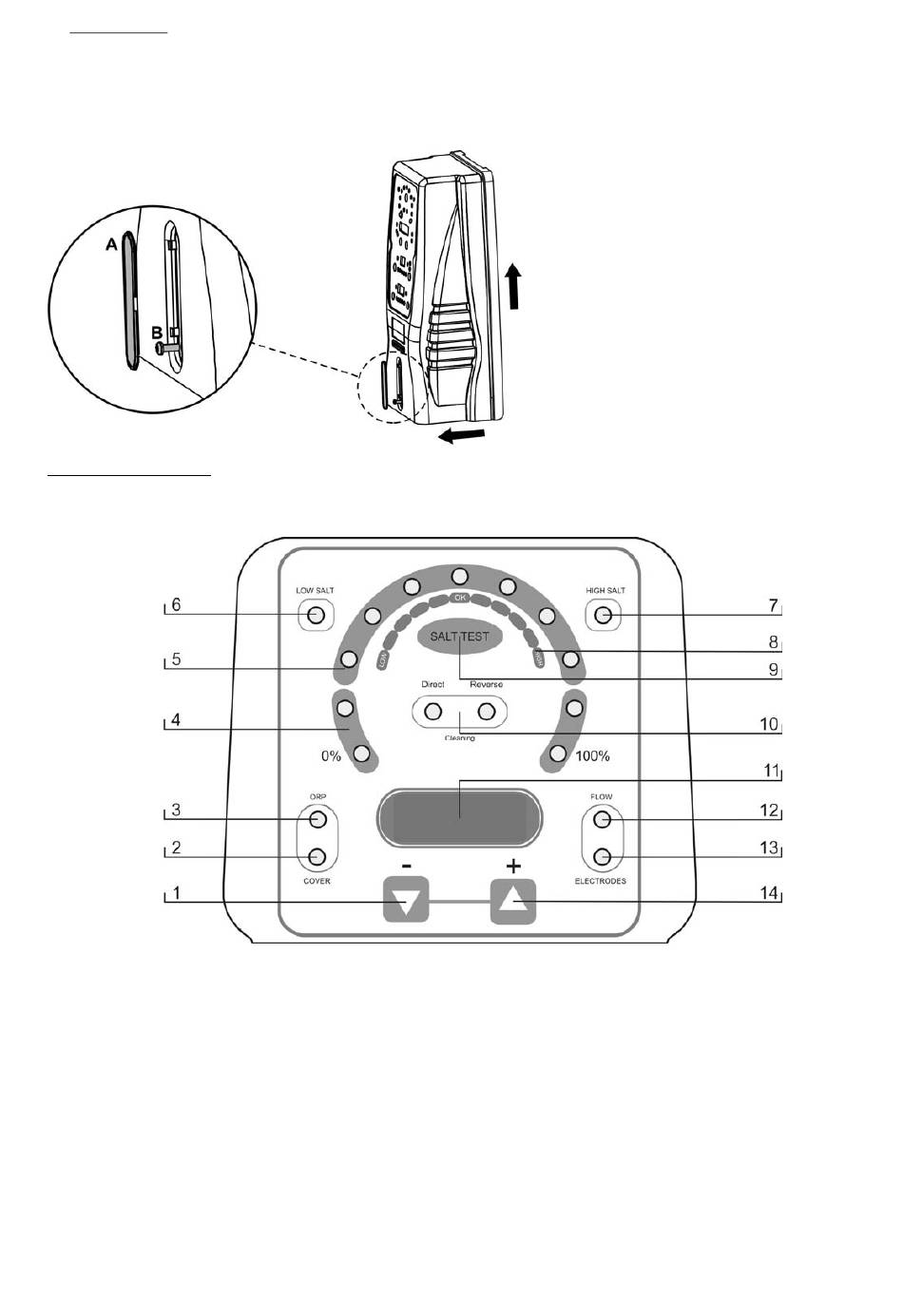

AstralPool Chlore Smart+ Electrolysis systems are equipped with a control panel on the front (Fig. 12).
1.
2.
3.
4.
5.
6.
7.
8.
9.
10. SELF-CLEANING indicators
11. Display of SYSTEM INFORMATION.
12. Indicator of FLOW ALARM.
13. Indicator of ELECTRODE passivation ALARM.
14. Key "
-
Key " " (decrease production / programming menu navigation).
Indicator of activated AUTOMATIC COVER control.
Indicator of activated ORP CONTROL.
Production scale (%).
PRODUCTION+SALINITY TEST scale.
Indicator of LOW SALINITY.
Indicator of HIGH SALINITY.
SALINITY scale (qualitative).
Key for "SALINITY TEST".
(DIRECT/REVERSE) polarity.
+
" (increase production / programming menu navigation).
