Setting the Transport Interlocks

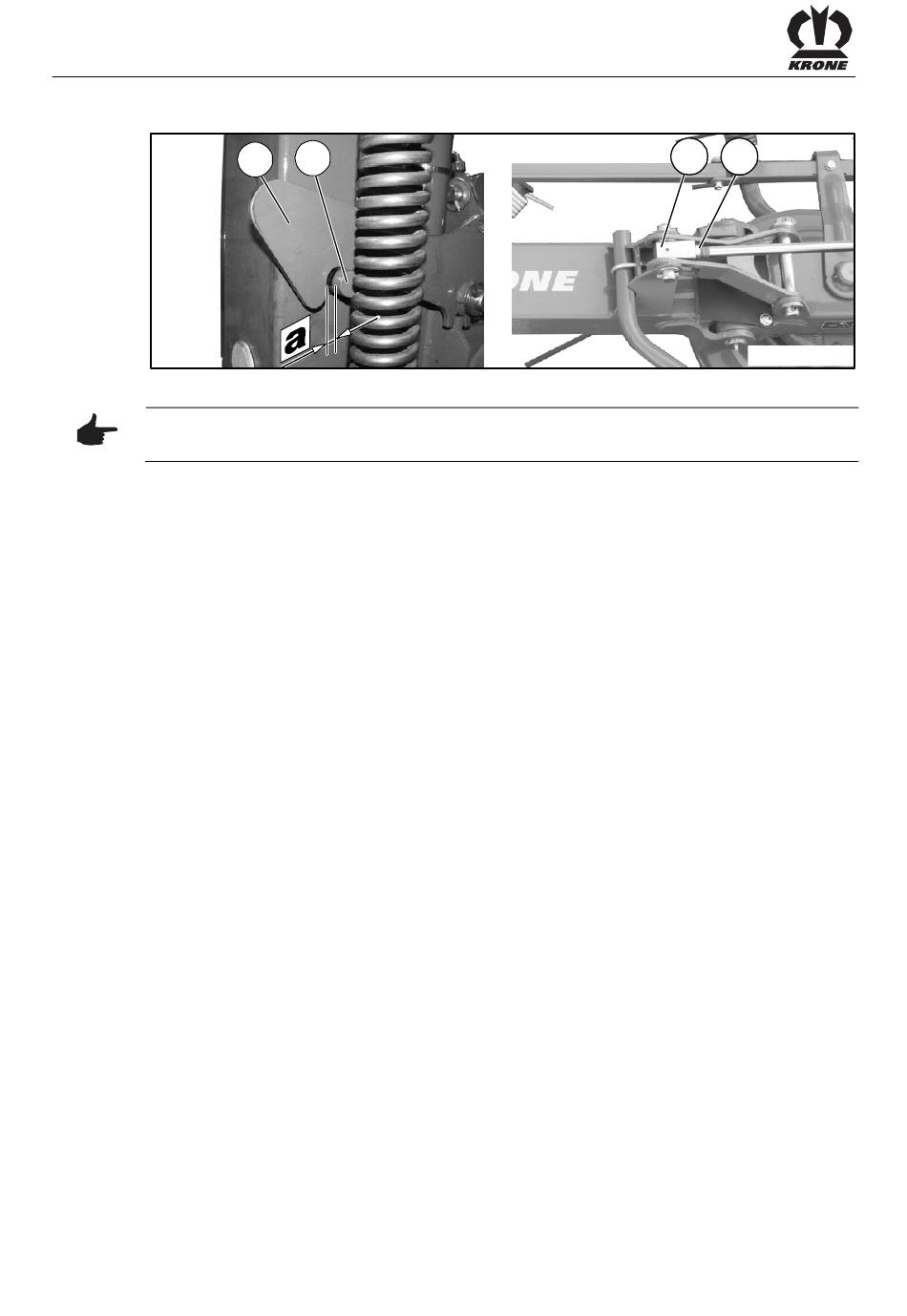

Pos: 22.28 /BA/Einstellungen/Wender/Grafik Verriegelungshaken KW 4.62 bis 8.82 @ 27\mod_1247119085261_78.docx @ 269696 @ @ 1
Fig. 49
Pos: 22.29 /BA/Einstellungen/Wender/Verriegelungshaken einstellen @ 27\mod_1247119130324_78.docx @ 269721 @ @ 1
Note
The setting of the locking hook (1) must be checked before the beginning of the season.
The distance dimension from the locking hook (1) to the bolt (2) must be a= 1-3 mm with
the cylinder retracted. If it is not, the locking must be readjusted:
1
Move the machine into working position.
2.
Loosen nut (3).
3.
Apply matching key to key entry of the piston rod.
4.
By turning the piston rod in or out, into or out of the cylinder retainer (4) the piston rod
length changes:
Extend the length of the piston rod =>
Reduce the length of the piston rod =>
5.
Bring the machine into the transport position.
6.
Check dimension "a" and repeat the entire process if necessary.
7.
Tighten nut (3).
Pos: 23 /BA/---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
62
2
1
4
dimension "a" on the trap becomes smaller
dimension "a" on the trap becomes larger
3
KW672031
