13.3
Jockey wheel front
Pos: 26.9.2 /BA/Sonderausstatung/Wender/Bild Tastrad KWT 7.82 bis 11.22 @ 22\mod_1239777431070_78.docx @ 233011 @ @ 1

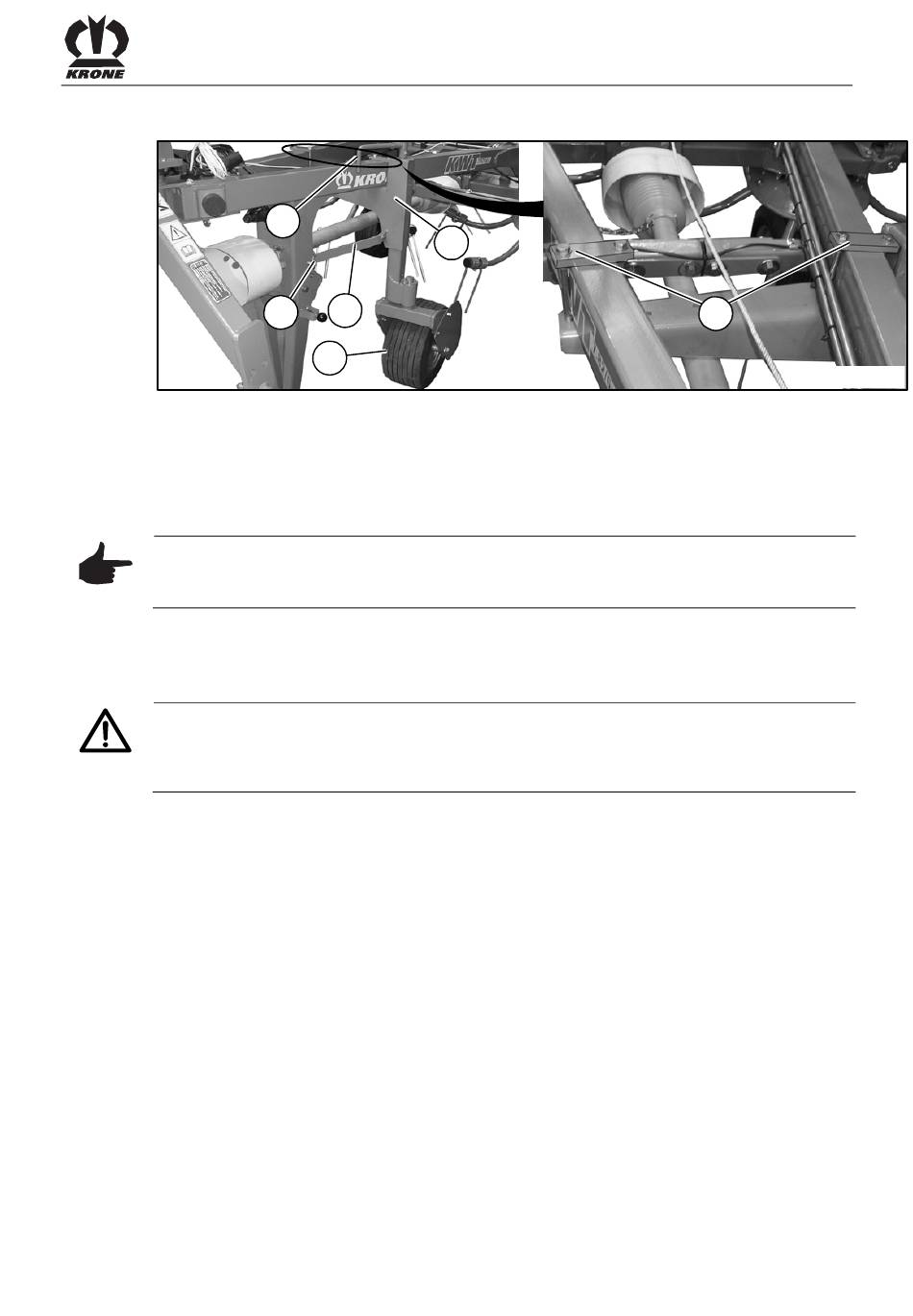

Fig. 60
Pos: 26.9.3 /BA/Sonderausstatung/Wender/Tastrad KW 7.82 bis 11.22 @ 22\mod_1239782272320_78.docx @ 233146 @ @ 1
Assemble the jockey wheel (3) on the right in the direction of travel as follows:
•
Install jockey wheel holder (2) with flange plates (3), screws, washers and nuts on top of
the frame
•
Install the strut (4) of the jockey wheel support (2) with bolt and nut (5) on the frame
Note
Two different supports (4) are supplied for different frame dimensions. Install the support (4)
which is suitable for the frame!
Pos: 26.9.4 /BA/Sonderausstatung/Wender/Höheneinstellung Tastrad KWT 7.82 bis 11.22 @ 22\mod_1239782713805_78.docx @ 233191 @ @ 1
Height adjustment:
The raking height is adjusted with the crank (6).
Pos: 26.9.5 /BA/Sonderausstatung/Wender/Achtung Tastrad Wender @ 20\mod_1238658524070_78.docx @ 224236 @ @ 1
CAUTION! – Machine is parked on jockey wheel
Effect: Machine damages
•
Never park the machine on the jockey wheel. Always use the front parking support to
lower the machine
Pos: 26.10 /BA/---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
6
2
4
5
1
Special equipment
3
KWT8828040_2
77
