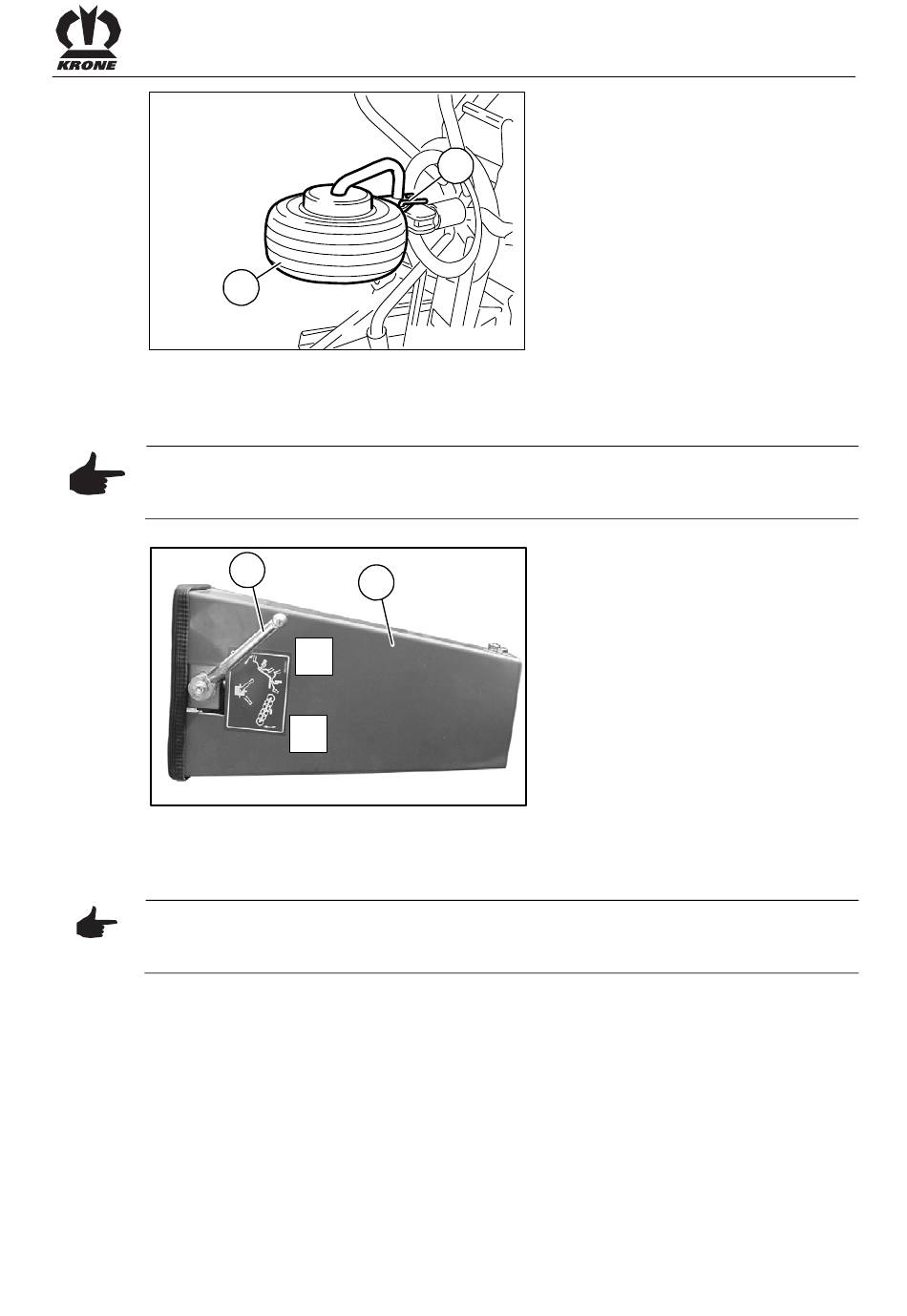

Fig. 22
• Swivel impeller (2) of the second rotor from the inside into working position.
• Secure with bolt (1) and cotter pin.
Note
Mind the position of the single wheels (refer to chapter "Spreading Angle Setting of the Rotors")
when swivelling into working position.
Pos: 20.11 /BA/Bedienung /Wender/Bild Umschalthahn KWT 7.82 bis 11.22 @ 21\mod_1239084957574_78.docx @ 228486 @ @ 1
Fig. 23
Pos: 20.12 /BA/Bedienung /Wender/Umschalthahn öffnen @ 21\mod_1239085607261_78.docx @ 228531 @ @ 1
• Move the switching valve (4) on the control unit (5) to position A
Pos: 20.13 /BA/Bedienung /Wender/KWT 11.22/10 @ 31\mod_1252415783769_78.docx @ 305646 @ @ 1
KWT 11.22/10
Pos: 20.14 /BA/Einstellungen/Wender/Hinweis Grenzstreueinrichtung Sicherheitsventil @ 36\mod_1260346645410_78.docx @ 336367 @ @ 1
Note
Only as soon as the spread limiter is in central position, the safety valve will be opened in order
to bring the machine from transport to working position and vice versa.
Pos: 20.15 /BA/---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
2
4
5
A
B
1
KW6722021
KWT8828014_1
Operation
