Instructions for Series 5 / 10
GB

Quick instructions

QuiCk instruCtions
1.

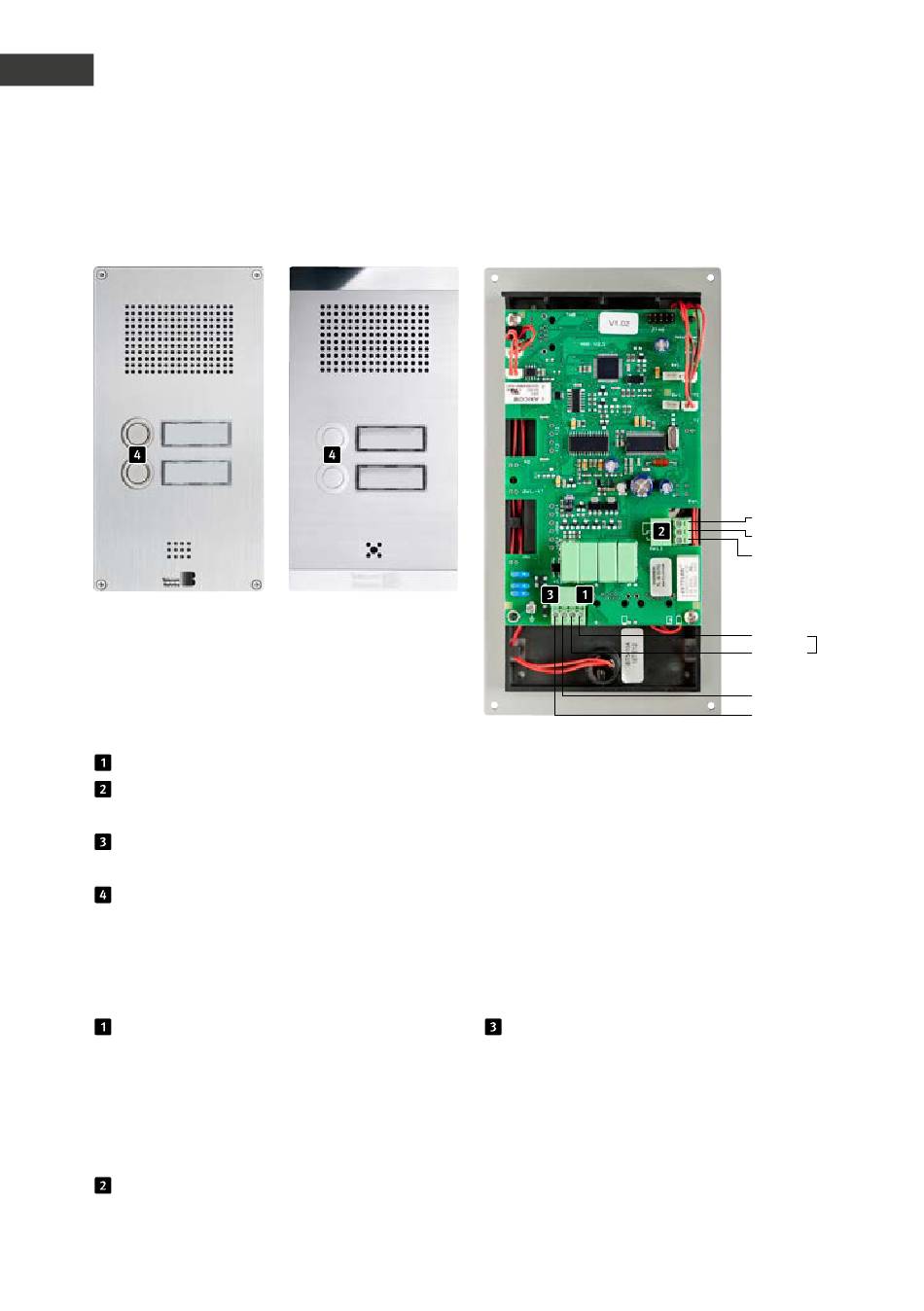

Series 5 door intercom
(figure shows device with two
call buttons)
Telephone line, analogue main line or extension of a telephone system
Relay; relay switch power: max. 60 VA/24 W: 0.5A, 120V~/1A, 24V=
(potential-free output circuits), usually the closing contact used to switch a door opener
Additional power supply; potential-free voltage, e.g. from a Behnke power supply unit
(20-9585, 20-9575)
Direct call buttons 1 and 2

1.1. Installation

Connect the telephone line to the screw
terminals marked "Tel." After connecting
the telephone line, the device will be set-up
automatically. During this process, the device
will produce a high-pitched tone for several
seconds.
Wire the relay to hold the open door function.
38
Series 10 door intercom
(figure shows device with two
call buttons)
Connect the additional 15V power supply,
if necessary. An additional power supply is
not necessary to use the basic functions;
only extra features (e.g. illuminated labels,
additional amplifiers or recorded messages)
require an additional power supply.
www.behnke-online.com
Control contact
Rest contact
Operating contact
Wire a
Tel.:
Wire b
–
15 V=
+
