Instructions for Series 10
GB

Quick instructions

Quick instructions
1.

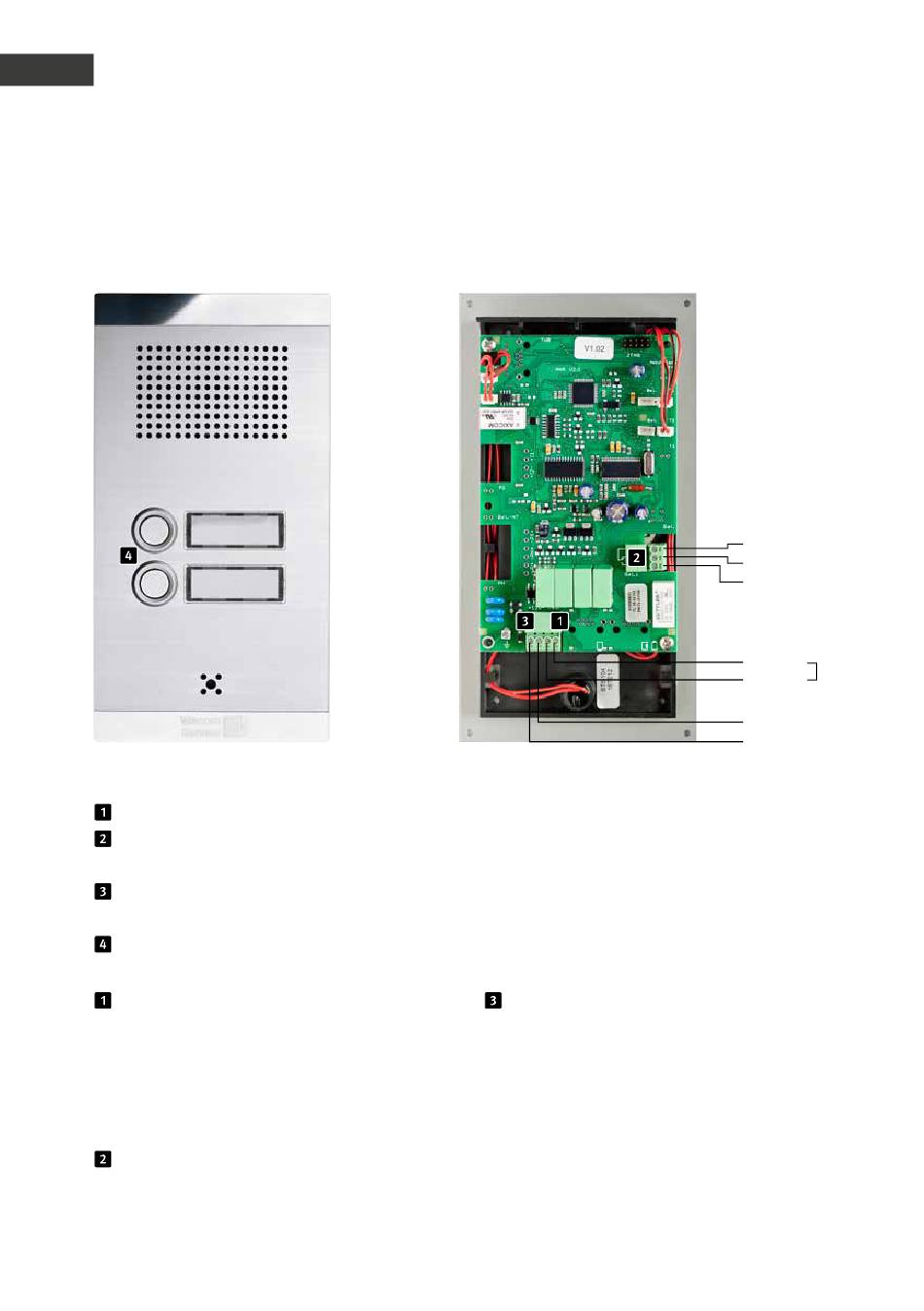

1.1. Installation

Telephone line, analogue main line or extension of a telephone system
Relay, relay switch power: max. 60 VA/24 W: 0.5A, 120 V~/1A, 24V=
(potential-free output circuits)
Additional power supply; potential-free voltage, e.g. from a Behnke power supply unit
(20-9585, 20-9575)
Direct dial buttons 1 and 2
Connect the telephone line to the screw
terminals marked "Tel." After connecting
the telephone line, the device will be
set-up automatically. During this process,
the device will produce a high-pitched
tone for several seconds.
Wire the relay to hold the open door
function.
34
All manuals and user guides at all-guides.com
Connect the additional 15V power supply,
if necessary. An additional power supply
is not necessary to use the basic func-
tions; only extra features (e.g. illuminated
labels, additional amplifiers or recorded
messages) require an additional power
supply.
www.behnke-online.com
Control contact
Rest contact
Operating
contact
Wire a
Tel.
Wire b
–
15 V=
+
