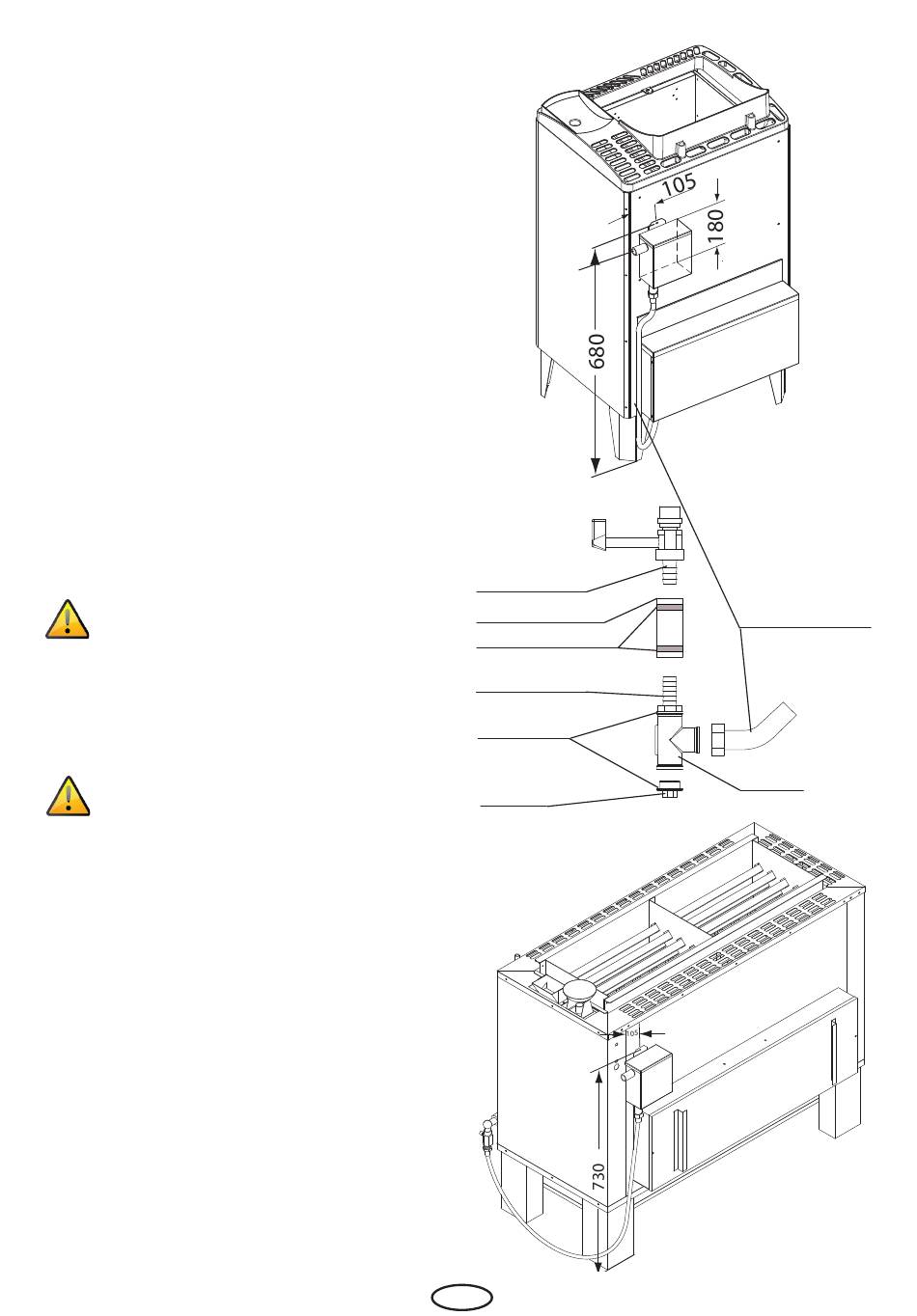

Assembly of the water tank on the
Bi-O-Max and Bi-O Star
• If mounting holes are not available on the
back of the sauna oven, drill 2 fixing holes Ø
3.4 mm into the back wall according to the
sizes provided.
• Screw the water tank onto the rear wall using
the 2 4.2 x 9.5 self-tapping screws provided.
• Now install the float valve into the tank. En-
sure that the float makes a vertical move-
ment and does not contact the tank wall.
• There is a 3/4" thread on the float valve out-
put. From here you can now connect your
supply line individually to the fixed water
connection.
Please observe:
A shut-off valve must be installed between
the mains and the fixed water connection.
If the fixed water connection is not used for a
longer period of time, the shut-off valve should
be closed.
Caution: operating pressure 0,3 - max.
10 bar.
Technical data
Material: chrome-nickel-steel
Height: 180 mm
Width: 150 mm
Depth: 75 mm
Capactiy of ca. 1.2 liter
Connection pressure: 0,3 - max. 10 bar
A pressure reducer must be used above 10 bar.
3/4"
Drainage tap
(mounted on
the
heater)
Hose nozzle
Silicone hose
Hose clips
Hose nozzle
Seals
Stoppers
EN
Fig. 7
Reinforced hose
T-joint
Fig. 8
