Technical Data

Voltage: 400 V AC 3N 50 Hz
Power consumption: 6.0*; 7.5**; 9.0** kW
depending on the version
Evaporation capacity: *1.5; **2,0 kW
Height: 760 mm with 160 mm up from the
fl oor
Width: 450 mm
Depth: 380 mm
Stone fi ll: 15 kg
Leakage current: max. 0.75 mA per kW
heating capacity
Sauna oven for use in a family sauna
Enclosed in the supplier's pack:
1 sauna oven with evaporator
1 wall fi tting
1 junction-box cover
1 accessory bag with
2 PG 16 cable screw fi ttings
3 B 4.2 x 9.5 sheet metal screws
4 chipboard screws
2 seals
1
drain valve
1 sauna stones unit separately in cloth bag
Stone basket
Herb dish
22
Steam escape
drain valve

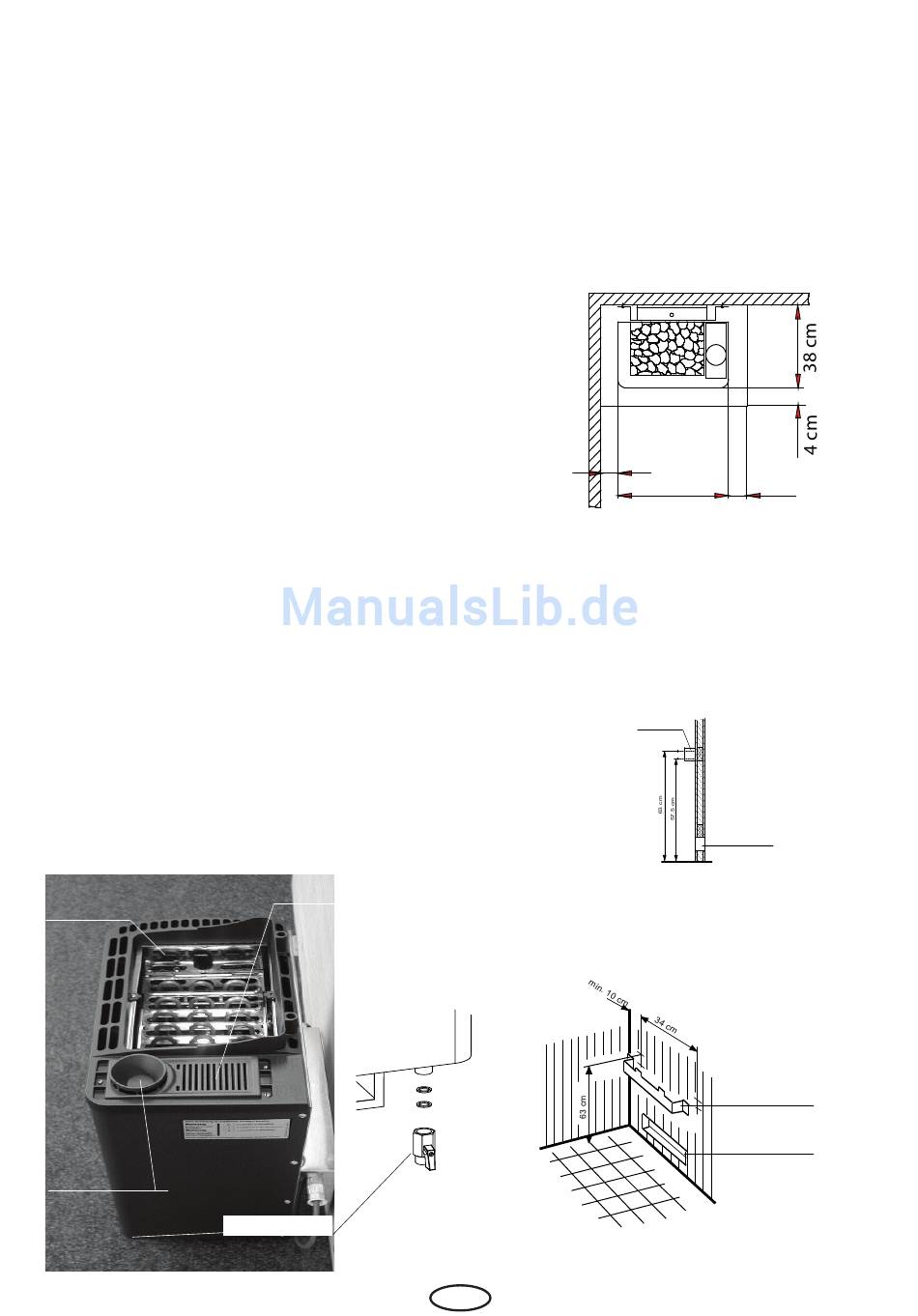

Minimum clearances

The minimum interior height of the sauna
booth is 1.90 m
When assembling the sauna oven, attention
must be paid to the fact that the vertical
distance between the upper edge of the
oven and the sauna roof must be at least
90 cm.
4 cm
1. Screw the wall bracket tight per Fig. 2 +
3 centrally over the air inlet opening with
the enclosed chipboard screws.
Wall suspension
GB
booth wall
oven protec-
tive grille
45 cm
4 cm
Air inlet ope-
ning
Wall suspension
Air inlet ope-
ning
Fig. 1
Fig. 2
Fig. 3
