Assembly of the water tank near the oven
Initially select a fixing option according to (fig.
3 - fig. 5).
This applies to all sauna ovens with a vaporiser.
The ovens described later are the exceptions
• Drill the fixing holes Ø 3.4 mm according to
the sizes in fig. 6
• Screw the water tank onto the rear wall using
the 2 B4.2x 9.5 self-tapping screws provided.
• Now install the float valve into the tank. En-
sure that the float makes a vertical move-
ment and does not contact the tank wall.
• Make the connection between the water tank
and vaporiser according to fig. 2 and fig. 6.
Screw in the drainage tap instead of the stop-
pers (2) (fig. 2).
• There is a 3/4" thread on the float valve out-
put. From here you can now connect your
supply line individually to the fixed water
connection.
Please observe:
A shut-off valve must be installed
between the mains and the fixed water con-
nection. If the fixed water connection is not
used for a longer period of time, the shut-off
valve should be closed.
Please make sure, that the FWA01 top
up device is filled with water for cooling at all
times when the heater if operated.
Caution:
operating pressure 0,3 - max. 10 bar.
8

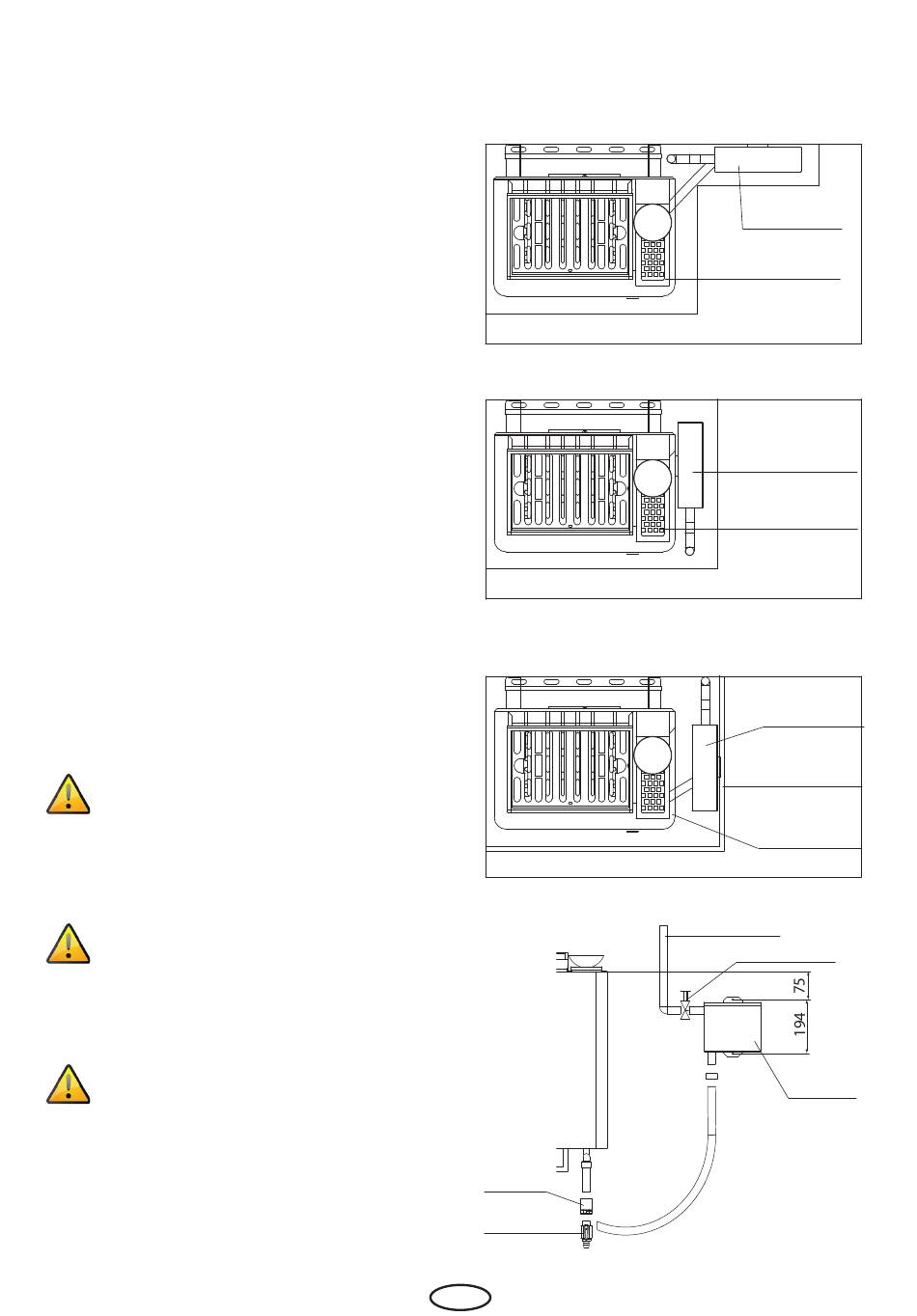

Mounting: wall-mounting Befestigungsmöglichkeit: Wand
