Installation

Technical Data

SVoltage: 400 V AC 3N 50 Hz
Power consumption: 7,5 kW
Height: 870
Width: 920 mm
Depth: 200 mm
Stone fi ll: 10 kg
Leakage current: max. 0.75 mA per kW
heating capacity
Sauna oven for use in a family sauna
Enclosed in the supplier's pack:
1 sauna oven
Enclosed in the supplier's pack:
4 St. sheet metal screws
1 sauna stones unit separately in cloth
bag
The sauna oven is intended for a connec-
tion voltage of 400 V AC 3 N via a sauna
controller.

Minimum clearances

The minimum height of the sauna cabin must
be 1.90 m on the inside.
When assembling the sauna oven, attention
must be paid to the fact that the vertical di-
stance between the upper edge of the oven
and the sauna roof must be at least 90 cm,
and the horizontal (lateral) distance between
the oven and the booth wall at least 7cm
The distance between the oven protective gril-
le and the sauna bench or other combustible
materials must be at least 2 cm from the oven.
The provided safety grate has to be installed
above the oven at the upper edge of the
partition to the rear wall.
care, that objects do not fall onto the heater
unintentionally.

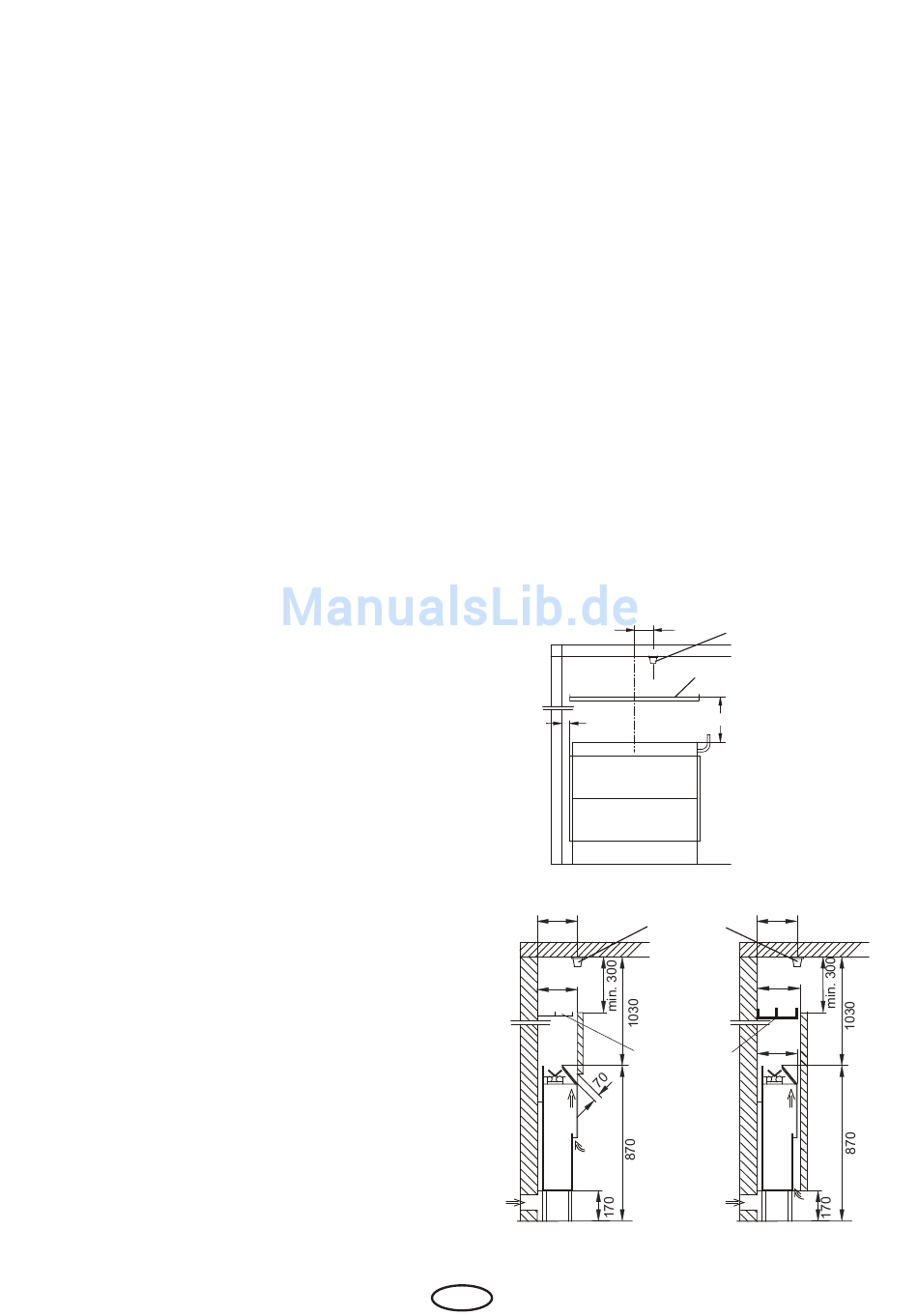

Contradictory to the specifi cations concerning
the mounting of the sensor of your sauna
control unit, the heater sensor is not mounted
centrically above the sauna heater but, as
shown in the diagram.
70
* for cubicles up to 2 x 2 m
190*
**for bigger cubicles
390**
200
air
intak
Fig. 2
GB
This is to take
200
heater sensor
safety grate
730
Fig. 1
190*
390**
heater sensor
220
200
Heater safety
grate
air intak
Maße in mmAll
Fig. 2a
dimensions in mm
