Dantherm CDT 30 MKII Servicehandbuch Seite 5

Product and function descriptions,

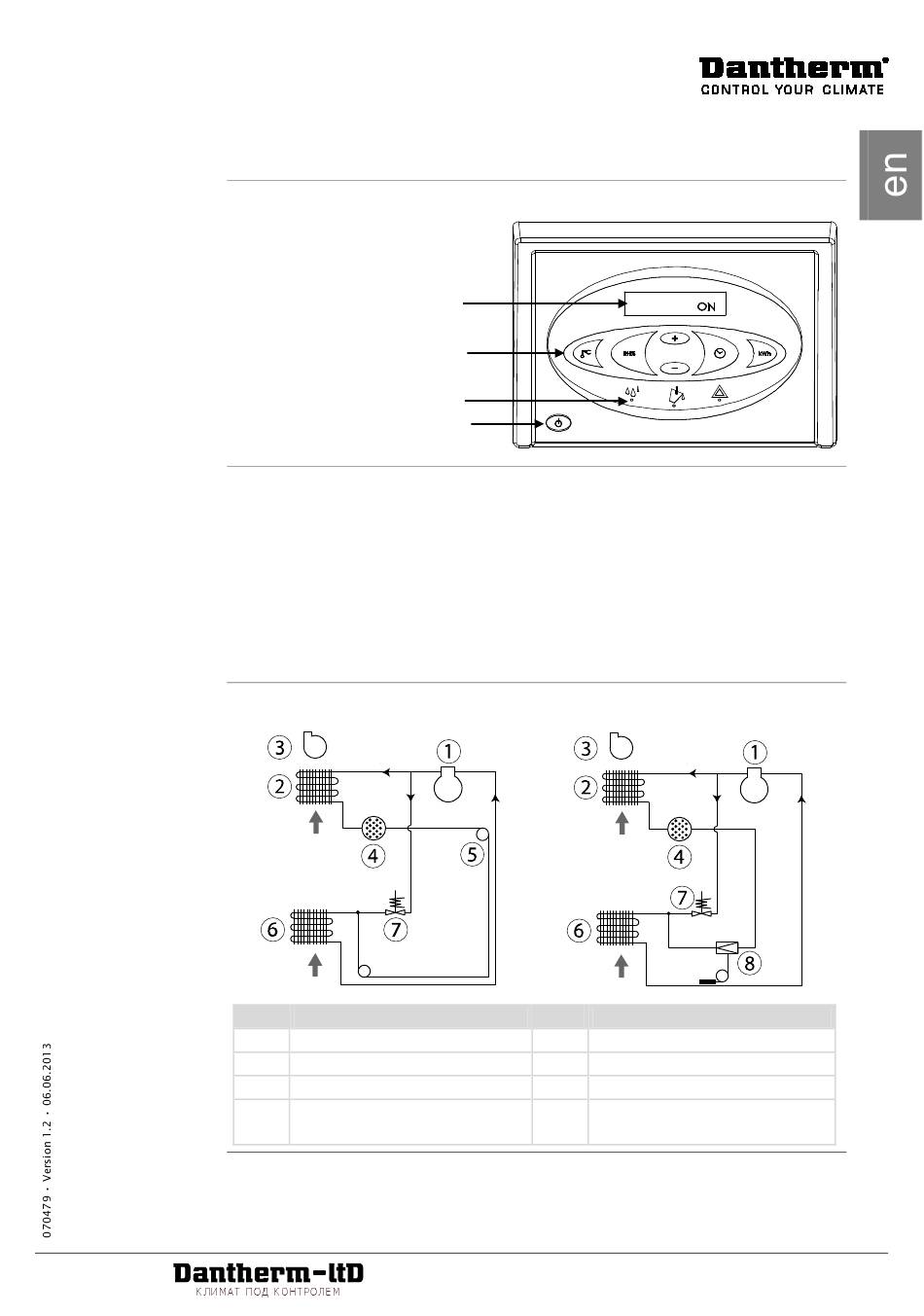

Control panel Illustration of control panel:
Functions Main functions:
Operation described in the user guide in this manual.
Cooling circuit dia-
gram
Pos.
Display
Function keys
Status indicators
Main switch
Manual or auto operation (built-in adjustable hygrostat).
•
External hygrostat socket.
•
Display of temperature, relative air humidity, hours and kWh consumption.
•
Hour counter and kWh consumed without 230V connection.
•
Adjustable service interval counter.
•
CDT 30
Description
1 Compressor
2 Condenser
3 Fan
4 Dry filter
www.dantherm-ltd.ru • info@dantherm-ltd.ru • +7 (495) 545-48-79
Москва. Каширский проезд д. 19 стр. 2
cont.
Pos.
5 Capillary tube (CDT 30 only)
6 Evaporator
7 Solenoid valve
8 Thermostatic expansion valve
(not CDT30)
CDT 40/60
Description
3
