Wiring Diagram - Dantherm CDT 30 MKII Servicehandbuch

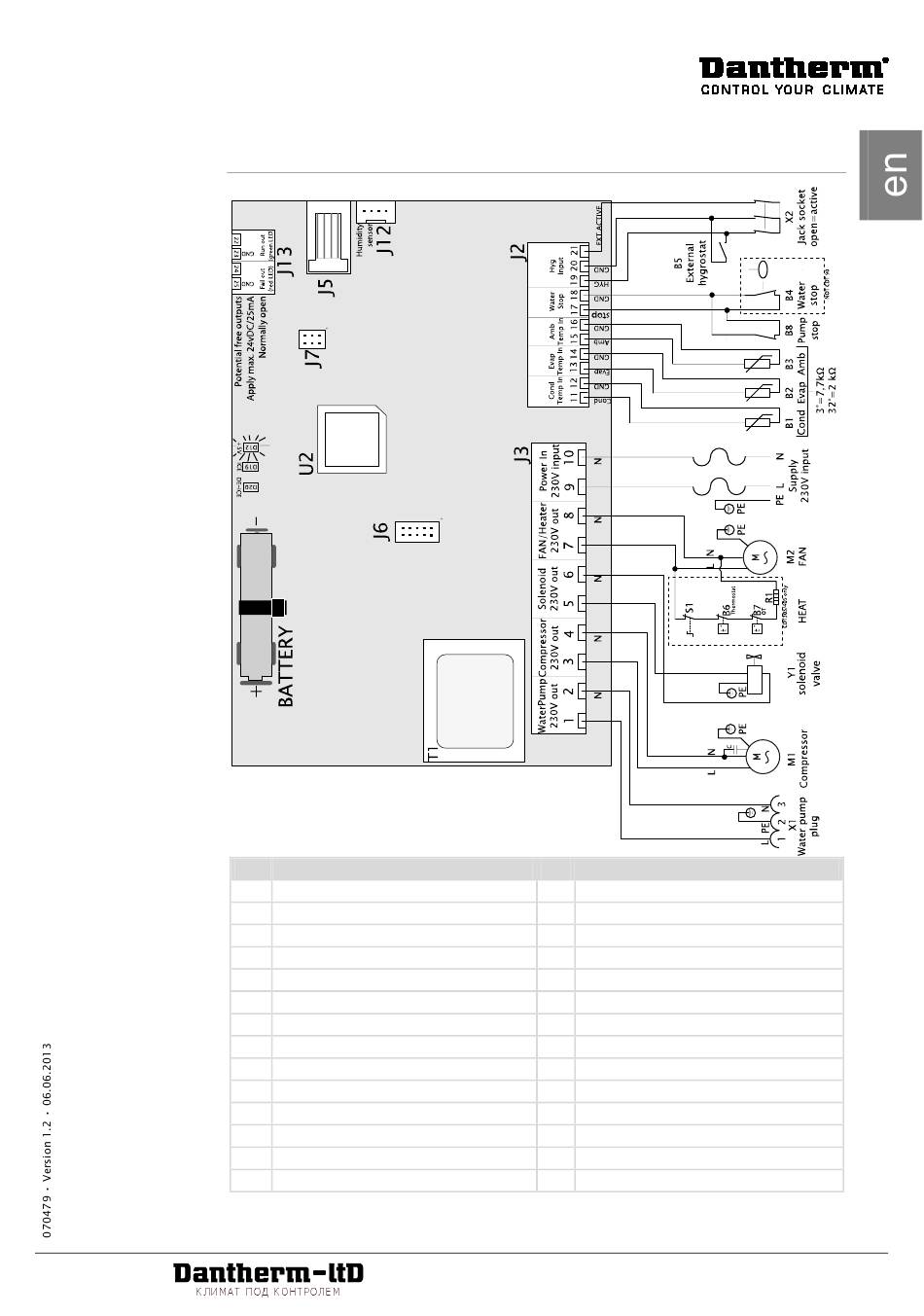

Wiring diagram

Diagram
Pos.
B1
B2
B3
B4
B5
B6
B7
B8
D12
D19
D20
J2
J3
J5
Description
Condenser surface temperature sensor J6
Evaporator surface temperature sensor J7
Ambient temperature sensor
"Full water tank" sensor
External hygrostat (accessory)
Thermostat (30S/40S only)
Over Temperature (30S/40Sonly)
External pump alarm (accessory)
LED +5V DC supply control
LED Ice on evaporator surface
LED Defrosting active
Low voltage connections
230V connections
Not in use
www.dantherm-ltd.ru • info@dantherm-ltd.ru • +7 (495) 545-48-79
Москва. Каширский проезд д. 19 стр. 2
Pos. Description
Not in use
Factory settings
J12 Internal hygrostat
J13 Extra output
M1 Cooler compressor
M2 Fan motor
R1 Heating element (30S/40S only)
S1 Heating element on/off (30S/40S only)
T1 Transformer
U2 CPU
X1 Water pump plug
X2 Jack plug for external hygrostat
Y1 Solenoid valve(pressure equalisation)
