Compatible Transmitters - simu T3.5EBHz Anleitung

1
2

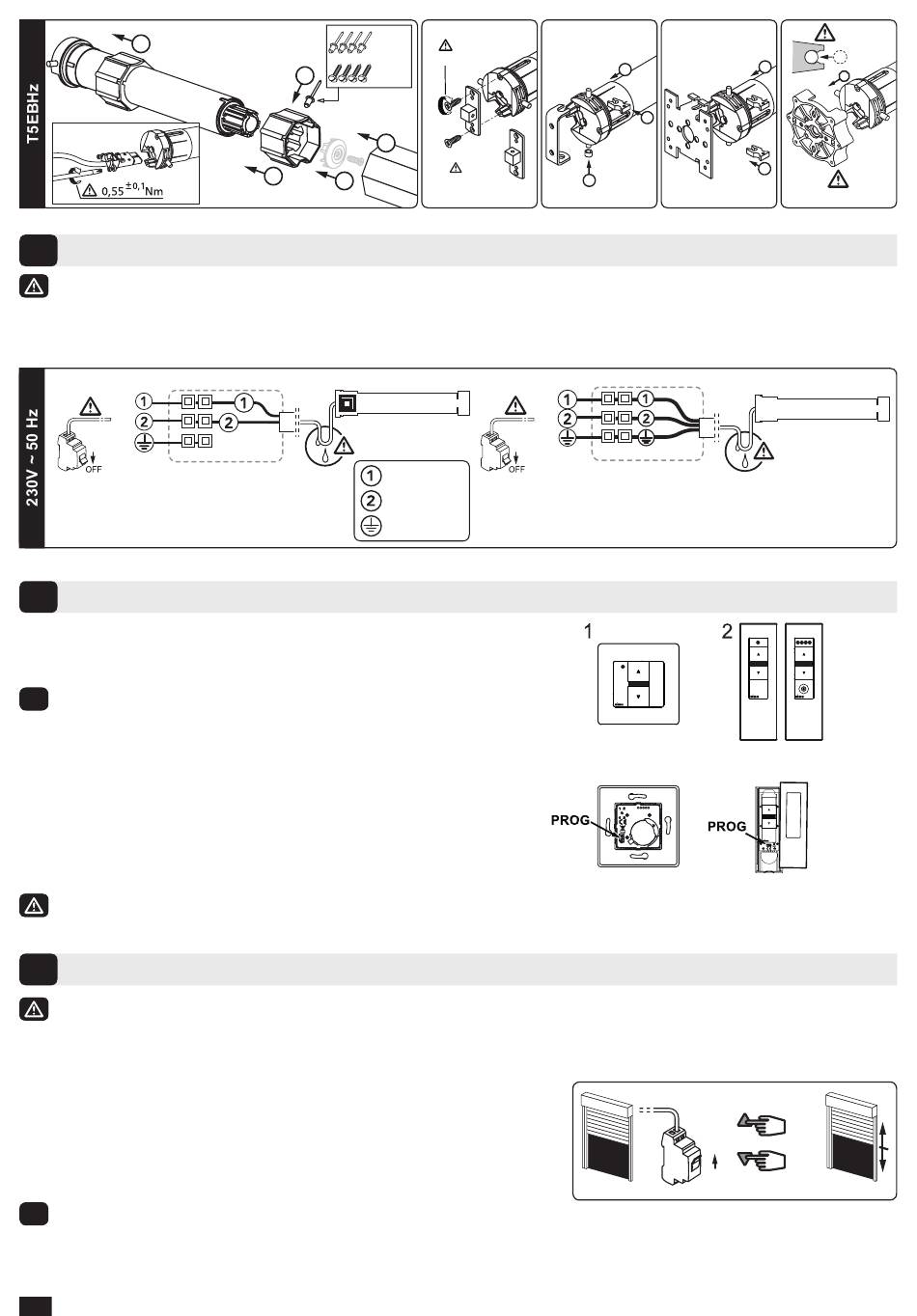

Wiring
You must have the possibility to switch off individually each motor.
- Attach cables to prevent any contact with moving parts.
- If the motor is used outdoors and if the power supply cable is of the H05-VVF type, then run the cable in a
UV- resistant conduit, e.g. trunking.
N
L
PE
3

Compatible transmitters

1 : 1 channels Wall BHz transmitter
2 : 1/5 channels Mobile BHz transmitter
i
Compatible with io-homecontrol
Location of the PROG button on BHz transmitters:
Do not position the transmitter near metal in order to avoid range losses.
4
End limit adjustment
If the installation includes several motors, only one motor is to be powered during this programming
procedure. It will avoid interferences with the other motor during the procedure.
4.1- Learning mode:
- Switch ON the motor.
- Simultaneously press the "UP" and "DOWN" buttons of a BHz
transmitter. The motor will run for 0,5 second in one direction and
then in the other.
i
The transmitter now controls the motor in unstable mode. Go to stage 4.2.
EN
2/6
Ø4,8 x 10
STEEL
5.3 Nm max
5
Ø5 x 10
4
2
25N.m max.
3
T3.5BHz
Blue
Brown
Green / Yellow
(9 transmitters (1 channel) max. for one motor.)
transmitters.
®
2
9910013
1
9910014
N
L
PE
1
3
2
35N.m max.
T5EBHz
>>
ON
1
