simu T3.5EBHz Anleitung Seite 12

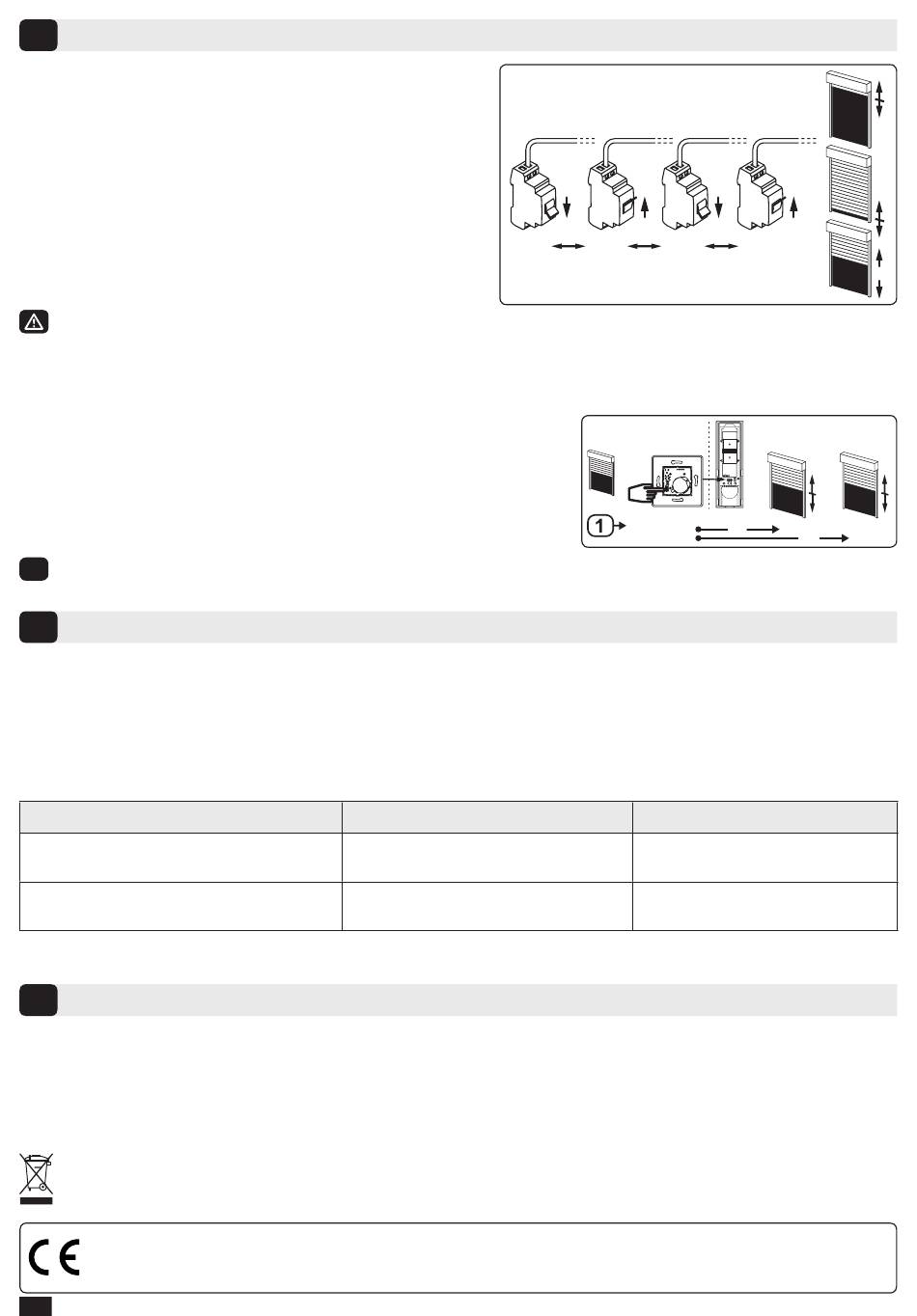

Cancelling programming
9
9.1- Switch off the power supply to the motor for 2 seconds.
9.2- Switch the power to the motor back on for 7 seconds.
9.3- Switch off the power supply to the motor for 2 seconds.
9.4- Switch the power to the motor back on.
If the motor is on the end limit position (up or down),
the motor will run briefly in one direction and then in the
other, otherwise, the motor runs for 5 seconds in random
direction.
The motor is now in the "cancelling" mode".
If you switch off the power to several motors, they will all be in cancelling mode. That is why,
you must "eject" out of this mode all the motors that are not to be deprogrammed by sending a
command from their individual control transmitter (UP or Down).
9.5- Then, confirm the cancelling of the concerned motor from the individual control:
- Press the "PROG" button of the transmitter more than 7 seconds.
Maintain the pressure until the motor will first run for 0,5 second in
one direction and then in the other, and a few second later, it will
run again in both direction.
i
The motor is now as it was originally configured, and no transmitter and no settings is saved in its memory
and is ready for a new programming.
10 Operation and maintenance
- This drive is maintenance-free.
- Press the ▲ button on the control point to raise the motorised product.
- Press the ▼ button on the control point to lower the motorised product.
- If the motorised product is moving, briefly press the "Stop" button, the motorised product stop automatically.
- The motorised product is then stopped, briefly press the "Stop" button, the motorised product moves to the
programmed intermediate position. (To modify or delete an intermediate position, see the section §7).
Tips and recommendations for use:
PROBLEMS
The motorised product does not operate.
If the motorised product still does not work, contact a drive and home automation professional.
Technical data
11
- Radio frequency 868-870 MHz, tri-band two-way.
- Frequency bands and Maximum power used:
868.000 MHz - 868.600 MHz ERP <25 mW
868.700 MHz - 869.200 MHz ERP <25 mW
869.700 MHz - 870.000 MHz ERP <25 mW
We care about our environment. Do not dispose of the appliance with usual household waste. Give it to an approved
collection point for recycling.
SIMU SAS, F-70103 GRAY as manufacturer hereby declares that the drive covered by these instructions when marked for input voltage
230V~50Hz and used as intended according to these instructions, is in compliance with the essential requirements of the applicable
European Directives and in particular of the Machinery Directive 2006/42/EC, and the Radio Directive 2014/53/EU. The full text of the
EU declaration of conformity is available at www.simu.com. Emmanuel CARMIER, general director, GRAY, 01/2018.
EN
6/6
9.1
POSSIBLE CAUSES
The overheating protection on the drive
has been activated.
The BHz control point battery is low.
- Power supply 230 V ~ 50 Hz
- Operating temperature : - 20 °C to + 60 °C
- Protection rating : IP44
- Safety level:
T3.5EBHz: Class II; T5EBHz: Class I
9.2 9.3
OFF ON OFF
2 s 7s 2s
9.5
PROG >7s
SOLUTIONS
Wait for the drive to cool down.
Check the battery and replace it as
required.
9.4
ON
5s
>> >>
2s
7s
