These instructions apply to all T3.5EBHz/T5EBHz drive, the different versions of which are available in the
current catalogue.
Field: T3.5EBHz/T5EBHz drive are designed to drive all types of roller shutters. The installer, who must be a motorisation
and home automation professional, must ensure that the drive product is installed in accordance with the standards in
force in the country in which it is installed such as EN 13659 relating to roller shutters.
Liability: Before installing and using the drive, please read operating and installation guide carefully. Please
read these instructions carefully before installing and using the drive. In addition to following the instructions given in this
guide, the instructions detailed in the attached Safety instructions document must also be observed. The drive must be
installed by a motorisation and home automation professional, according to instructions from SIMU and the regulations
applicable in the country in which it is commissioned. It is prohibited to use the drive outside the field of application
described above. Such use, and any failure to comply with the instructions given in this guide and in the attached
Safety instructions document, absolves SIMU of any liability and invalidates the warranty. The installer must inform
its customers of the operating and maintenance conditions for the drive and must provide them with the instructions
for use and maintenance, and the attached Safety instructions document, after installing the drive. Any After-Sales
Service operation on the drive must be performed by a motorisation and home automation professional. If in doubt when
installing the drive, or to obtain additional information, contact a SIMU adviser or go to the website www.simu.com.
1

Installation

Instructions which must be followed by the drive and home automation professional installing the drive:
- Methods of wiring are given by national standards or IEC 60364 standard.
- Cables which pass through a metal wall must be protected and isolated using a sheath or sleeve.
- T3.5EBHz: The cable for the motor cannot be removed. If it is damaged, return the drive to the After-Sales department.
- T5EBHz:The cable for the motor can be removed. If it is damaged, replace by the same. The cable
may only be connected to the motor by qualified personnel. The connector is to be assembled without
damaging the contacts. The continuity of the earth connection must be ensured.
Recommendations : Keep a minimum distance of 20 cm between two EBHz motors. Keep a minimum
distance of 30 cm between EBHz motors and BHz transmitters. A radio appliance using the same frequency
(868-870 MHz) may deteriorate our product's performance.

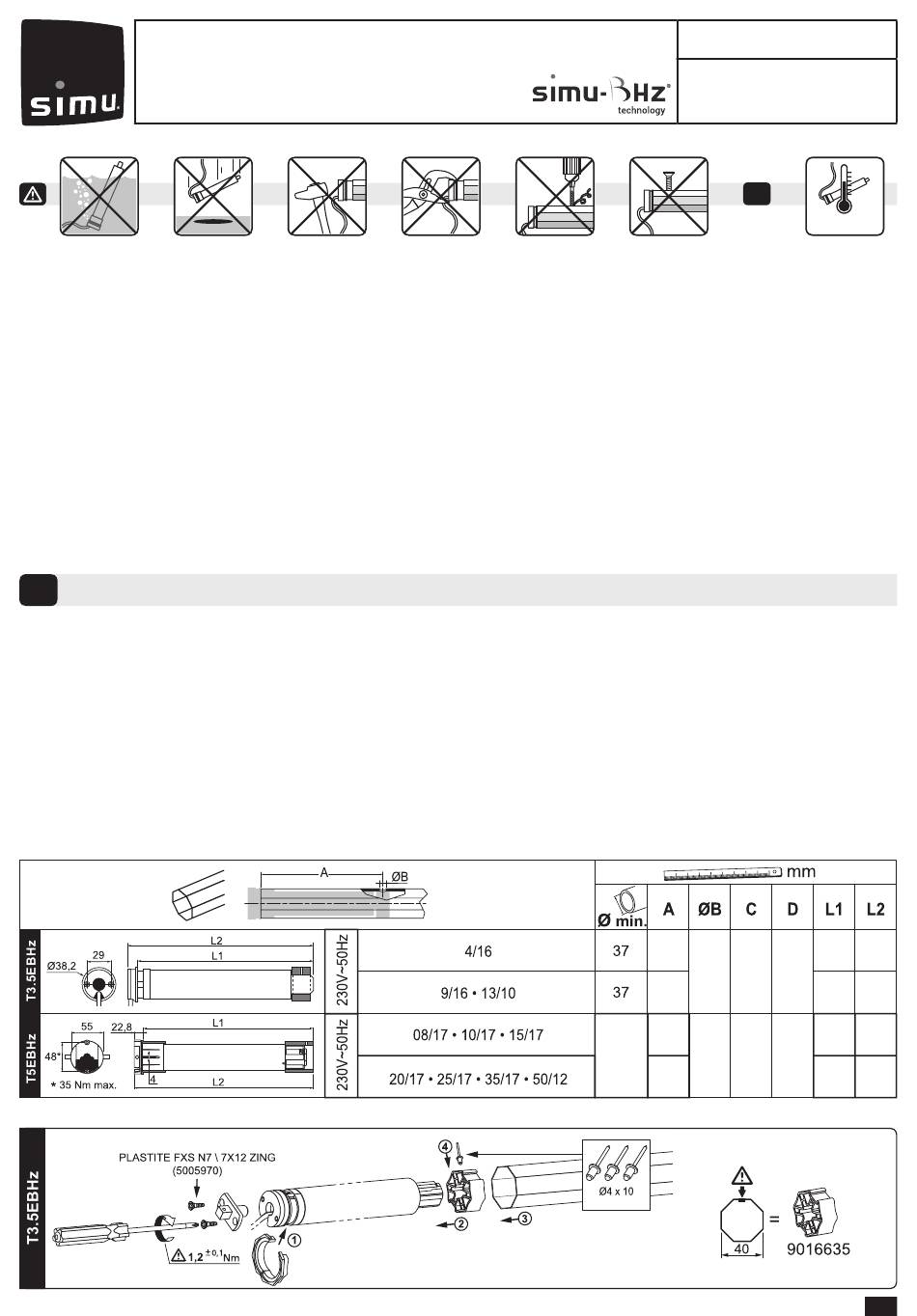

Drilling of the tube:
Montage :
T3.5EBHz/T5EBHz
(230V ~ 50Hz)
IP44
IP44
5140362B
Original instructions
i
437
4,2 8
472
583
47 5 26
657
STEEL
-20°C / +60°C
460 475
5,5
495 510
596 619
4,2
670 693
EN
