Channel 1

3.2.1

Specifications

X3A
Interface type
Inputs / tracks
Limiting frequency
Increments per re-
volution
Input resistance
Max. line length
3.2.2

Description of X3A

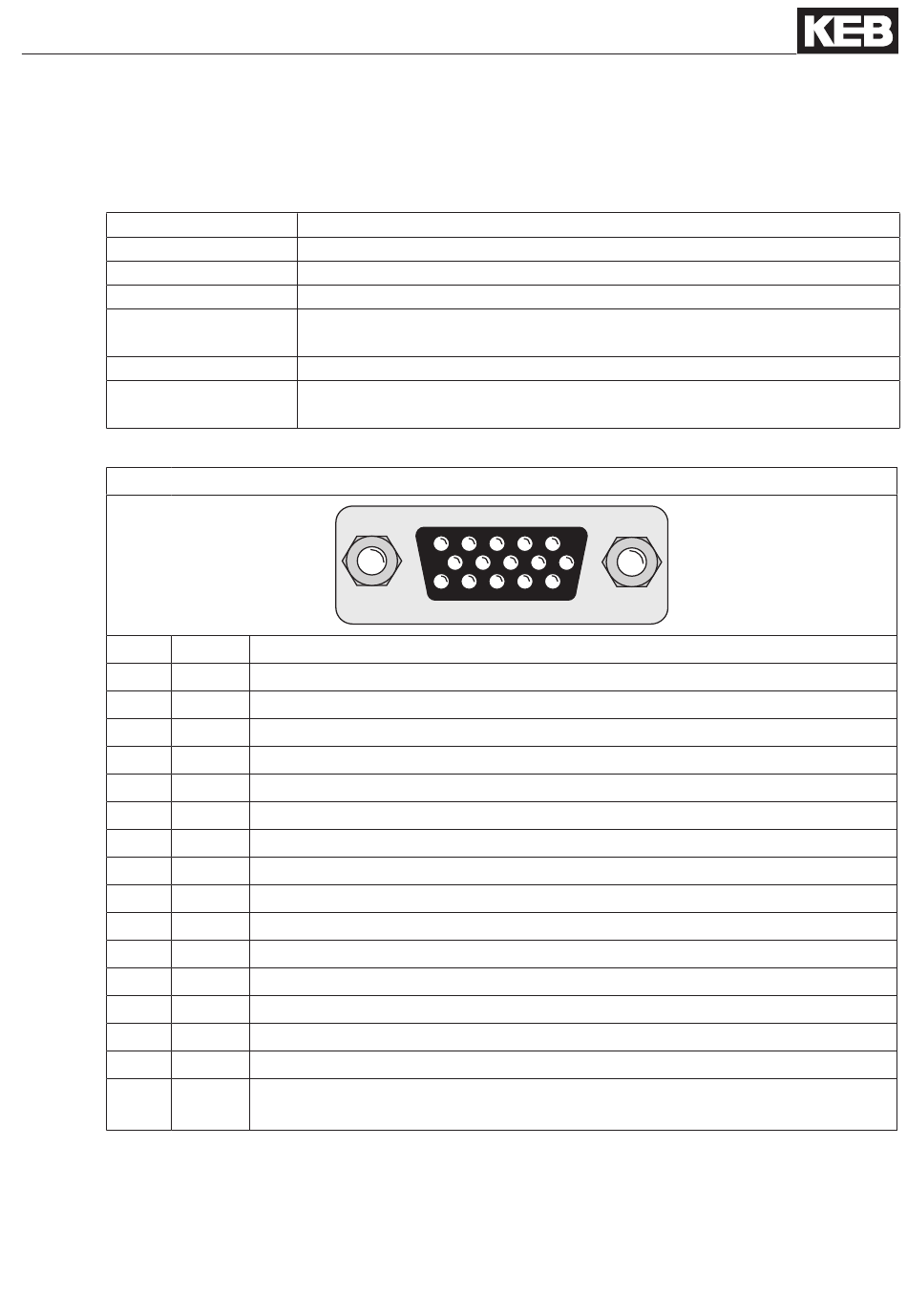

Figure 3.2.2 Socket X3A
PIN Name Description
1
2
3
4
5
6
7
8
9
10
11 24 V
12 +5.25 V Power supply for encoder
13 COM
14
15
– GND
3.2.3

Input signals

Tracks C and D are giving an absolute signal to the control unit. The period is correspond
exactly to one mechanical revolution of the encoder. At starting the control unit will start
with this relative inaccurate absolute value. With the first zero pulse the position will be cor-
rected. Thus approach to reference point is not necessary.
Socket SUB-D15
SIN/COS
1 Vss typical (0.6...1.2)
200 kHz
1...2048 inc (recommendation 1024 inc for speed upto 4500 rpm
120 Ω
50 m, the value is additionally limited by the signal frequency, cable
capacity and supply voltage (see chapter „encoder line length").
C- Signal input C- (difference signal to C+)
D- Signal input D- (difference signal to D+)
A- Signal input A- (difference signal to A+)
B- Signal input B- (difference signal to B+)
- -
Absolute track for initial position and angular calculation
C+
Absolute track for initial position and angular calculation
D+
A+ Incremental encoder input track A for counter and direction detection
B+ Incremental encoder input B for counter and direction detection
- -
Power supply for encoder
Reference potential for voltage supply
-R Signal input R- (difference signal to R+)
+R Zero track
Connection for shield at the connector housing (is directly connected
with the inverter earth).
SIN/COS at Channel 1
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
