Encoder interface HTL input / HTL output
3.2.1

Description of terminal strip X3A

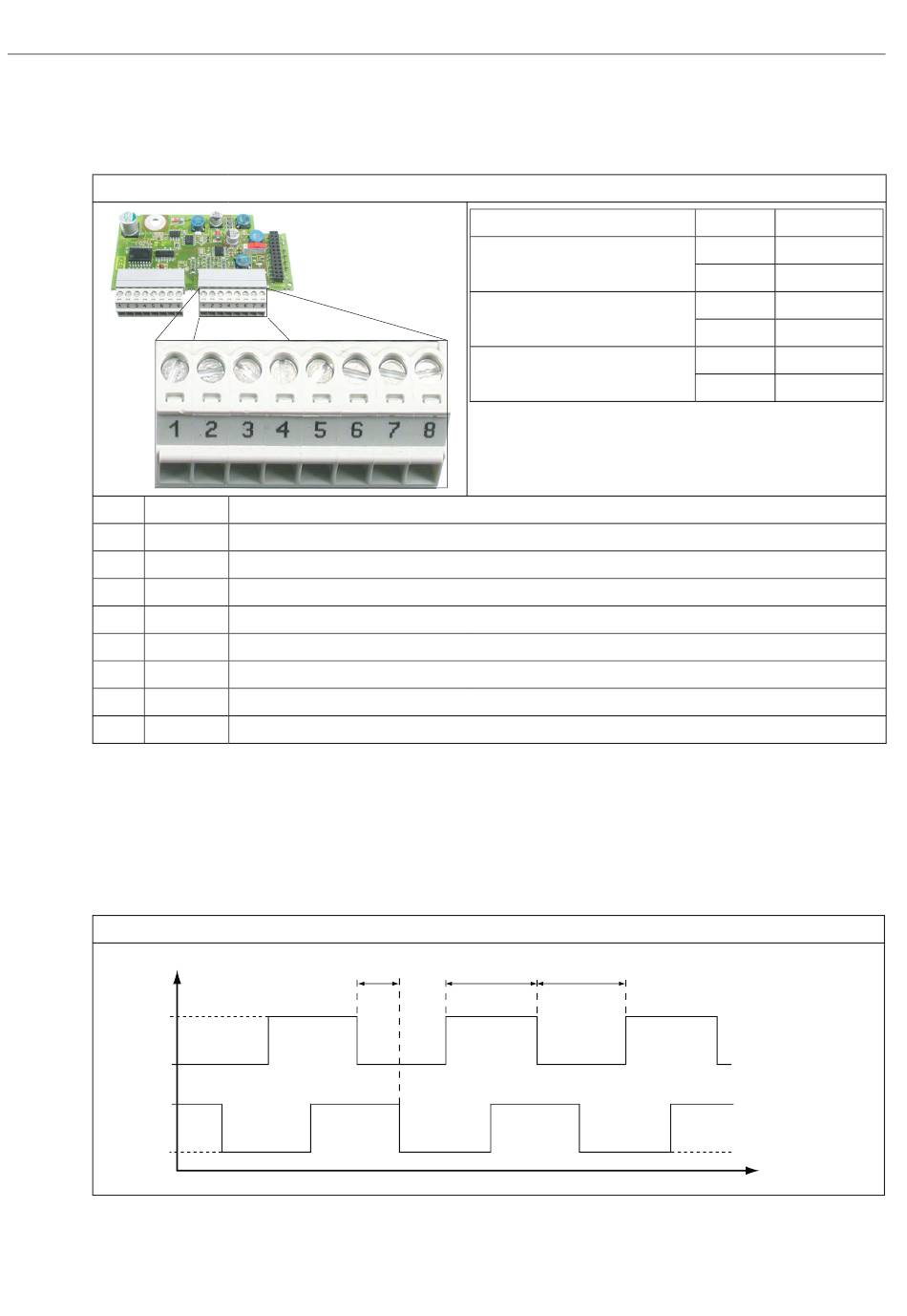

Figure 2.1.1 Terminal strip X3A
PIN Name
1 A+
2
3 B+
4
5 N+
6
7 15/24 V Voltage output for encoder supply
8 COM
3.2.2

Input signals channel 1

3.2.2.1

Signal tracks

In case of HTL encoder interface the signals A+ and B+ are rectangular signals with a pha-
se-angle displacement by 90 degrees. The inverted signals will be generated internally and
does not need to be provided by the encoder. The pulse width and the phase diff erence
must be 2 µs at least.
Figure 2.2.2.1
+A
COM
+B
COM
GB-8
Description
Encoder track A
– reserved
Encoder track B
– reserved
Zero track
– reserved
Reference potential for encoder tracks and voltage supply
Signal tracks A+ and B+
Phase diffe-
Stripping length
Tightening torque
Conductor cross-sec-
tion (min)
Conductor cross-sec-
tion (max)
Pulse width
rence
lb inch
Pulse width
mm 7
Nm 0,22
2
mm² 0,14
AWG 28
mm² 1,5
AWG 16
15...30 V
0 V
15...30 V
0 V
t
