Technical Data

(measured in accordance with EN 13786 under Truma test
conditions)
Gas type
Liquid gas (propane / butane)
Admission pressure
0.6 – 16 bar
Output pressure
30 mbar or 50 mbar, according to variant
Regulator capacity
1.5 kg/h
Regulator inlet
Male threads M20 x 1.5 (G.13)
Regulator outlet
Olive screw connection, 8 mm or 10 mm
Recommended tightening torque
3 – 5 Nm for union nut M20 x 1.5 (G.13)
Horizontal triggering value
3.5 g ± 0.5 g
Conformity Declaration
The DuoControl CS gas pressure regulation system complies
with the pressure-device directive 97/23/EC under application
of EN 13786/B and directive 2004/78/EC Annex VIII "Safety
Requirements for LPG-Operated Combustion Heating Devices".
Product Identification Number
CE-0085BQ0102
DG approval number: 3894
Right reserved to make technical changes!
18

Installation instructions

Residual gas: Do not smoke, avoid open flames!
Installation must be conducted by a technician!
In order to ensure that the equipment operates correctly,
the regulation system must be securely screwed to a
stable wall / ceiling (with 4 screws).
Always read and the installation instructions before installa-
tion and observe them.
Depending on the version, the DuoControl CS must be fitted
to a stable wall in a vertical position or fitted to the top of the
gas cylinder box in a horizontal position. The triggering ele-
ment (A) must always be in a vertical position.

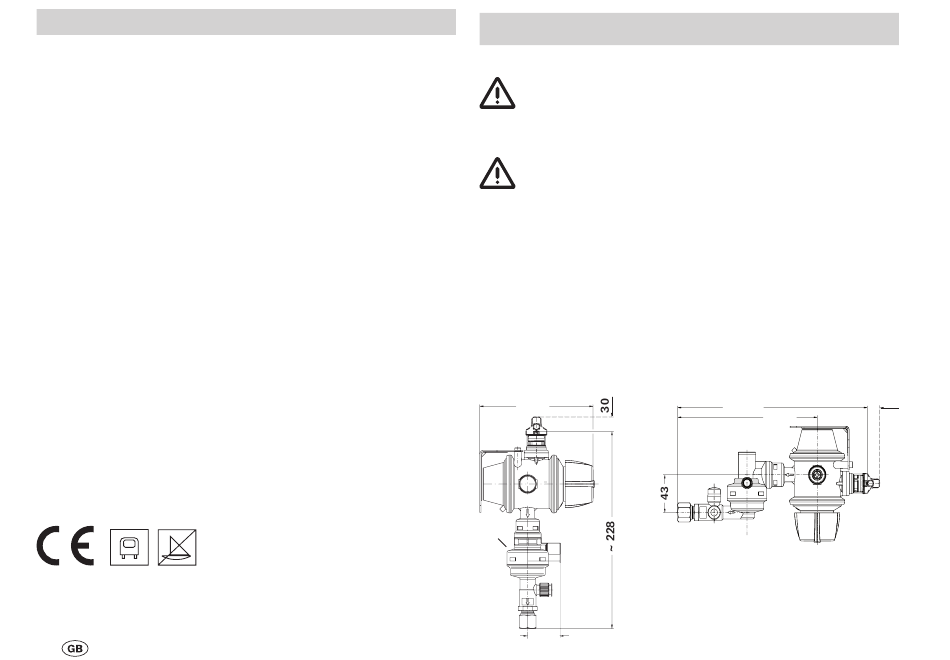

Installation dimensions

~ 131
A
37.5
30
~ 231
~ 170
A
The dimensions are in mm.
