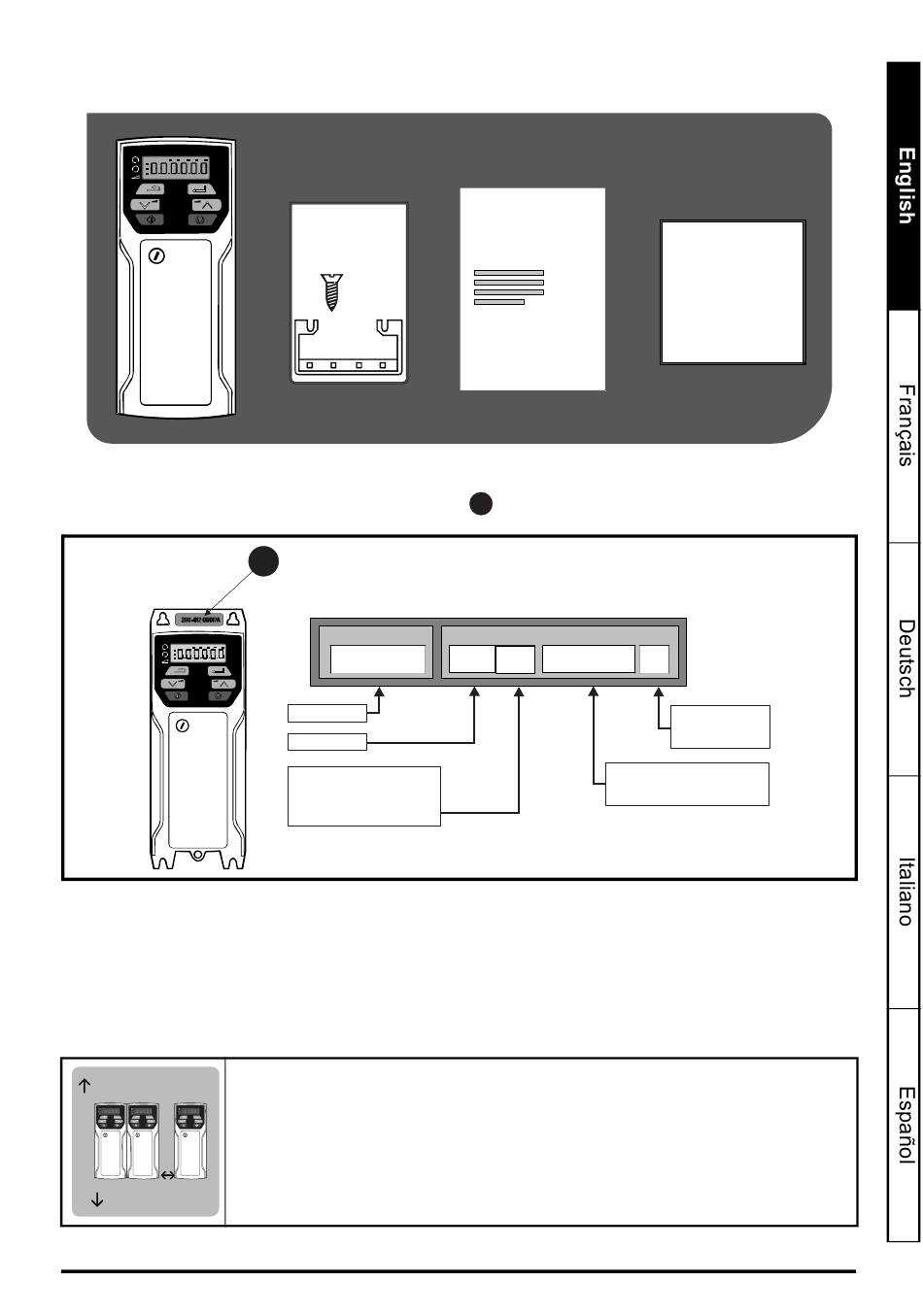

STEP 1: Check the contents of the box
Check you have all the components and your drive has not been damaged during transportation.
STEP 2: Check model and voltage
The model number can be found on the identification label
and the drive voltage range is suitable for the installation.
C
STEP 3: Mount the drive
The drive should be mounted in an ambient temperature range of - 20 °C to 60 °C (- 4 °F to 140 °F).
Output current derating may be required at ambient temperatures > 40 °C (104 °F). Refer to the Power Installation
Guide (section 5.1). For UL installations, the maximum ambient temperature permitted is 50 °C (104 °F) with any
specified derating applied.
Drives can be panel mounted with 0 mm space between them. A minimum clearance of 100 mm (3.94 in)
is required above and below the drive. Refer to section 3.4 in the Power Installation Guide for information on
derating for reduced clearances.
100 mm (3.94 in)
0 mm
100 mm
(3.94 in)
C200/C300 Step By Step Guide
Issue Number: 1
KIT BAG
CABLE BRACKET
x4
+
1
Product
C 200 -
Product line:
Frame size:
:
Voltage rating
1 - 100 V (100 - 120 ± 10 %)
2 - 200 V (200 - 240 ± 10 %)
4 - 400 V (380 - 480 ± 10 %)
The Drive can be screwed onto a backplate or mounted on a DIN rail (size 1 and 2 only).
If you choose to mount it on a rail use 2 screws to secure the drive to the back plate.
SAFETY
INFORMATION
+
on the top of the drive. Please check that the model
1
Electrical Specifications
03
4
00073
STEP BY STEP GUIDE
+
A
Drive Format :
A – AC in AC out
Current Rating :
Heavy Duty current rating x10
3
