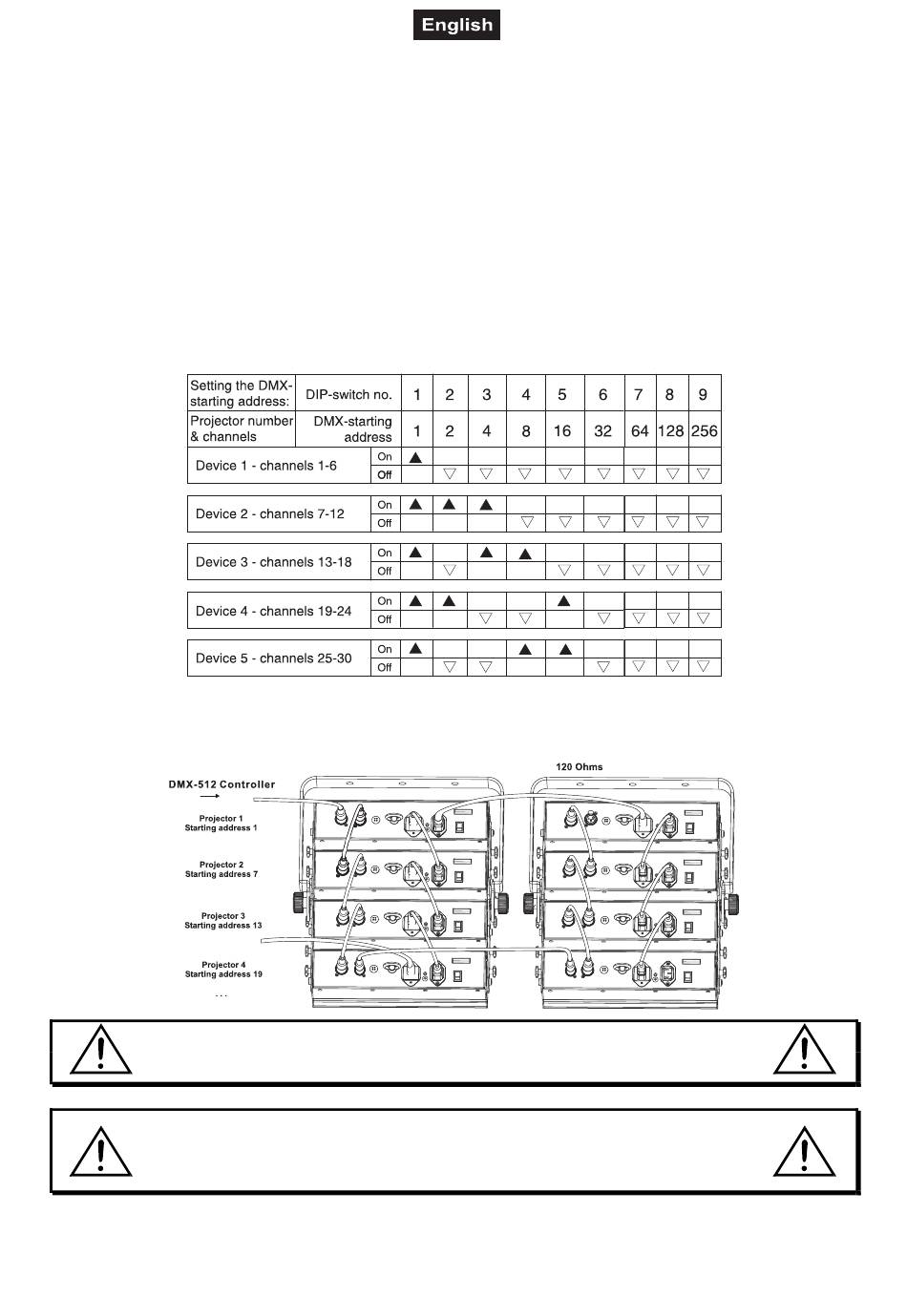

Addressing

Depending on the DMX-mode (see table 4), each bar of the CL-48 LED-CLUSTER occupies 15, 12 or 6
DMX-channels. If you select program "R, G, B control per group" for example, one bar of the Cluster
occupies 6 DMX-channels. To ensure that the control signals are properly directed to each device, it requires
adressing. This is to be done for every single bar by changing the DIP-switches as set out in this table.
The starting address is defined as the first channel from which the CL-48 LED-CLUSTER will respond to the
controller.
Please make sure that you don't have any overlapping channels in order to control each CL-48 LED-
CLUSTER correctly and independently from any other fixture on the DMX data link. If two, three or more CL-
48 LED-CLUSTERs are addressed similarly, they will work similarly.
Occupation des interrupteurs DIP:

DMX-512 connection / connection between fixtures

The wires must not come into contact with each other, otherwise
the fixtures will not work at all, or will not work properly.
Please note, the starting address depends upon which controller is being used.
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with
the fixture or one fixture with another.
