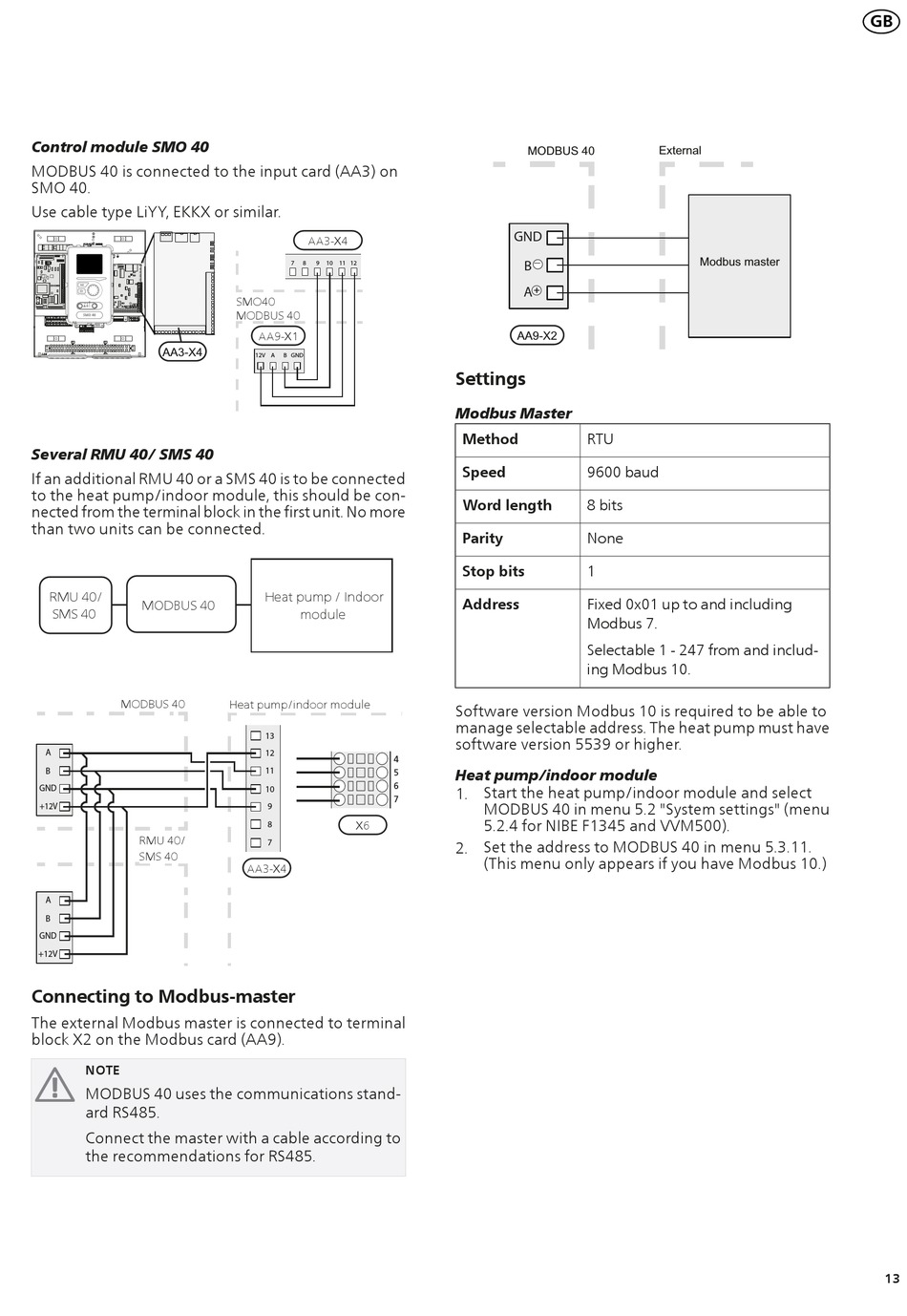

Control module SMO 40
MODBUS 40 is connected to the input card (AA3) on
SMO 40.
Use cable type LiYY, EKKX or similar.
1 2 3 4
L N 1 1 0 PE 2 3 4
LEK
Several RMU 40/ SMS 40
If an additional RMU 40 or a SMS 40 is to be connected
to the heat pump/indoor module, this should be con-
nected from the terminal block in the first unit. No more
than two units can be connected.
RMU 40/
MODBUS 40
SMS 40
MODBUS 40
A
B
GND
+12V
RMU 40/
RMU 40
SMS 40
A
B
GND
+12V
Connecting to Modbus-master
The external Modbus master is connected to terminal
block X2 on the Modbus card (AA9).
NOTE
MODBUS 40 uses the communications stand-
ard RS485.
Connect the master with a cable according to
the recommendations for RS485.
AA3-X4
7 8 9 10 11 12
SMO40
MODBUS 40
AA9-X1
12V A B GND
Heat pump / Indoor
module
Heat pump/indoor module
13
12
4
11
5
6
10
7
9
8 X6
7
AA3-X4
MODBUS 40
GND
B
A
Settings
Modbus Master
Method RTU
Speed 9600 baud
Word length 8 bits
Parity None
Stop bits 1
Address Fixed 0x01 up to and including
Modbus 7.
Selectable 1 - 247 from and includ-
ing Modbus 10.
Software version Modbus 10 is required to be able to
manage selectable address. The heat pump must have
software version 5539 or higher.
Heat pump/indoor module
1. Start the heat pump/indoor module and select
MODBUS 40 in menu 5.2 "System settings" (menu
5.2.4 for NIBE F1345 and VVM500).
2. Set the address to MODBUS 40 in menu 5.3.11.
(This menu only appears if you have Modbus 10.)
