Item
Description

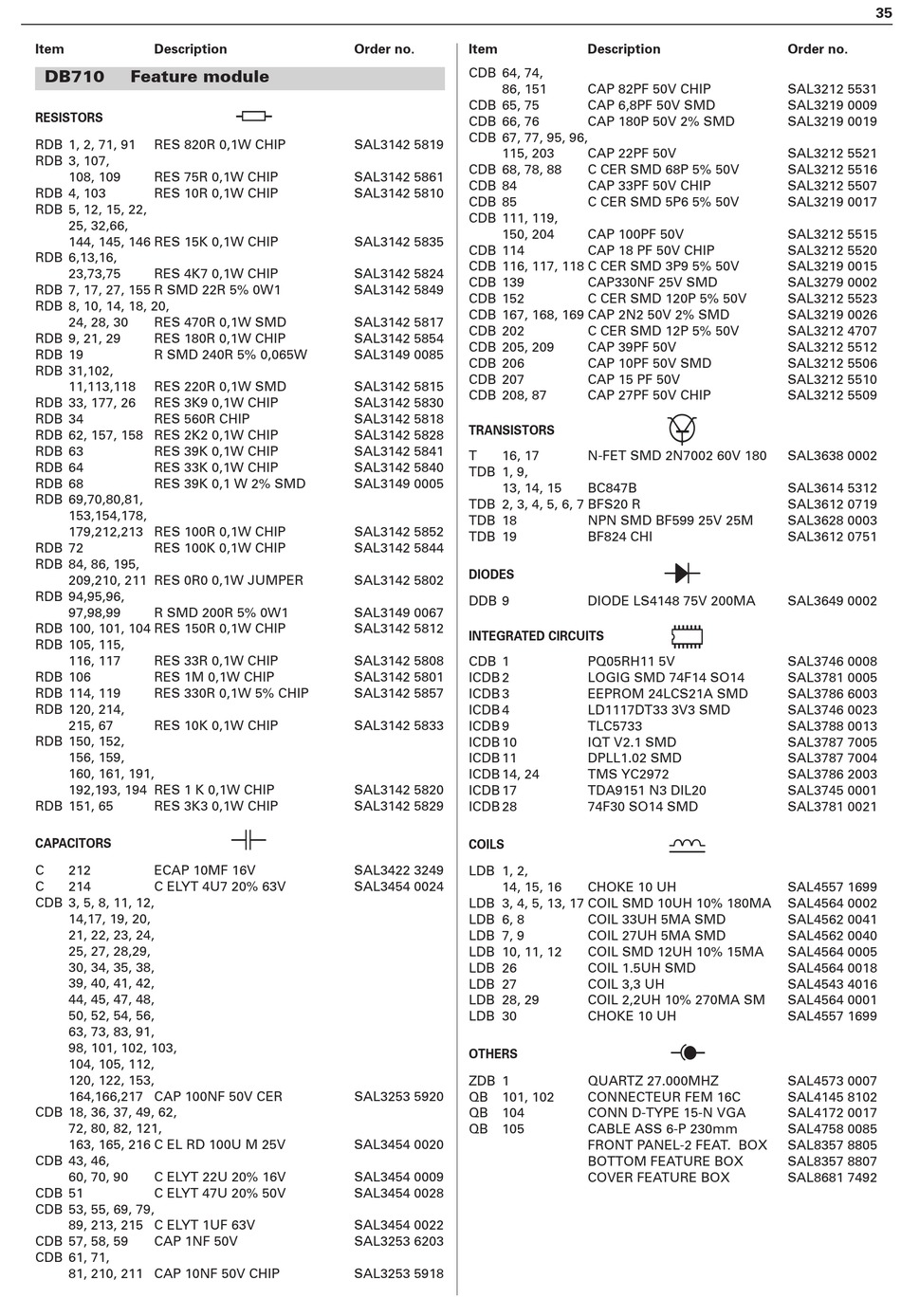

DB710
Feature module
RESISTORS
RDB 1, 2, 71, 91
RES 820R 0,1W CHIP
RDB 3, 107,
108, 109
RES 75R 0,1W CHIP
RDB 4, 103
RES 10R 0,1W CHIP
RDB 5, 12, 15, 22,
25, 32,66,
144, 145, 146 RES 15K 0,1W CHIP
RDB 6,13,16,
23,73,75
RES 4K7 0,1W CHIP
RDB 7, 17, 27, 155 R SMD 22R 5% 0W1
RDB 8, 10, 14, 18, 20,
24, 28, 30
RES 470R 0,1W SMD
RDB 9, 21, 29
RES 180R 0,1W CHIP
RDB 19
R SMD 240R 5% 0,065W
RDB 31,102,
11,113,118
RES 220R 0,1W SMD
RDB 33, 177, 26
RES 3K9 0,1W CHIP
RDB 34
RES 560R CHIP
RDB 62, 157, 158 RES 2K2 0,1W CHIP
RDB 63
RES 39K 0,1W CHIP
RDB 64
RES 33K 0,1W CHIP
RDB 68
RES 39K 0,1 W 2% SMD
RDB 69,70,80,81,
153,154,178,
179,212,213 RES 100R 0,1W CHIP
RDB 72
RES 100K 0,1W CHIP
RDB 84, 86, 195,
209,210, 211 RES 0R0 0,1W JUMPER
RDB 94,95,96,
97,98,99
R SMD 200R 5% 0W1
RDB 100, 101, 104 RES 150R 0,1W CHIP
RDB 105, 115,
116, 117
RES 33R 0,1W CHIP
RDB 106
RES 1M 0,1W CHIP
RDB 114, 119
RES 330R 0,1W 5% CHIP
RDB 120, 214,
215, 67
RES 10K 0,1W CHIP
RDB 150, 152,
156, 159,
160, 161, 191,
192,193, 194 RES 1 K 0,1W CHIP
RDB 151, 65
RES 3K3 0,1W CHIP
CAPACITORS
C
212
ECAP 10MF 16V
C
214
C ELYT 4U7 20% 63V
CDB 3, 5, 8, 11, 12,
14,17, 19, 20,
21, 22, 23, 24,
25, 27, 28,29,
30, 34, 35, 38,
39, 40, 41, 42,
44, 45, 47, 48,
50, 52, 54, 56,
63, 73, 83, 91,
98, 101, 102, 103,
104, 105, 112,
120, 122, 153,
164,166,217 CAP 100NF 50V CER
CDB 18, 36, 37, 49, 62,
72, 80, 82, 121,
163, 165, 216 C EL RD 100U M 25V
CDB 43, 46,
60, 70, 90
C ELYT 22U 20% 16V
CDB 51
C ELYT 47U 20% 50V
CDB 53, 55, 69, 79,
89, 213, 215 C ELYT 1UF 63V
CDB 57, 58, 59
CAP 1NF 50V
CDB 61, 71,
81, 210, 211 CAP 10NF 50V CHIP
Order no.
R
SAL3142 5819
SAL3142 5861
SAL3142 5810
SAL3142 5835
SAL3142 5824
SAL3142 5849
SAL3142 5817
SAL3142 5854
SAL3149 0085
SAL3142 5815
SAL3142 5830
SAL3142 5818
SAL3142 5828
SAL3142 5841
SAL3142 5840
SAL3149 0005
SAL3142 5852
SAL3142 5844
SAL3142 5802
SAL3149 0067
SAL3142 5812
SAL3142 5808
SAL3142 5801
SAL3142 5857
SAL3142 5833
SAL3142 5820
SAL3142 5829
K
SAL3422 3249
SAL3454 0024
SAL3253 5920
SAL3454 0020
SAL3454 0009
SAL3454 0028
SAL3454 0022
SAL3253 6203
SAL3253 5918
Item
Description
CDB 64, 74,
86, 151
CAP 82PF 50V CHIP
CDB 65, 75
CAP 6,8PF 50V SMD
CDB 66, 76
CAP 180P 50V 2% SMD
CDB 67, 77, 95, 96,
115, 203
CAP 22PF 50V
CDB 68, 78, 88
C CER SMD 68P 5% 50V
CDB 84
CAP 33PF 50V CHIP
CDB 85
C CER SMD 5P6 5% 50V
CDB 111, 119,
150, 204
CAP 100PF 50V
CDB 114
CAP 18 PF 50V CHIP
CDB 116, 117, 118 C CER SMD 3P9 5% 50V
CDB 139
CAP330NF 25V SMD
CDB 152
C CER SMD 120P 5% 50V
CDB 167, 168, 169 CAP 2N2 50V 2% SMD
CDB 202
C CER SMD 12P 5% 50V
CDB 205, 209
CAP 39PF 50V
CDB 206
CAP 10PF 50V SMD
CDB 207
CAP 15 PF 50V
CDB 208, 87
CAP 27PF 50V CHIP
TRANSISTORS
T
16, 17
N-FET SMD 2N7002 60V 180
TDB 1, 9,
13, 14, 15
BC847B
TDB 2, 3, 4, 5, 6, 7 BFS20 R
TDB 18
NPN SMD BF599 25V 25M
TDB 19
BF824 CHI
DIODES
DDB 9
DIODE LS4148 75V 200MA
INTEGRATED CIRCUITS
CDB 1
PQ05RH11 5V
ICDB 2
LOGIG SMD 74F14 SO14
ICDB 3
EEPROM 24LCS21A SMD
ICDB 4
LD1117DT33 3V3 SMD
ICDB 9
TLC5733
ICDB 10
IQT V2.1 SMD
ICDB 11
DPLL1.02 SMD
ICDB 14, 24
TMS YC2972
ICDB 17
TDA9151 N3 DIL20
ICDB 28
74F30 SO14 SMD
COILS
LDB 1, 2,
14, 15, 16
CHOKE 10 UH
LDB 3, 4, 5, 13, 17 COIL SMD 10UH 10% 180MA
LDB 6, 8
COIL 33UH 5MA SMD
LDB 7, 9
COIL 27UH 5MA SMD
LDB 10, 11, 12
COIL SMD 12UH 10% 15MA
LDB 26
COIL 1.5UH SMD
LDB 27
COIL 3,3 UH
LDB 28, 29
COIL 2,2UH 10% 270MA SM
LDB 30
CHOKE 10 UH
OTHERS
ZDB 1
QUARTZ 27.000MHZ
QB 101, 102
CONNECTEUR FEM 16C
QB 104
CONN D-TYPE 15-N VGA
QB 105
CABLE ASS 6-P 230mm
FRONT PANEL-2 FEAT. BOX
BOTTOM FEATURE BOX
COVER FEATURE BOX
Order no.
SAL3212 5531
SAL3219 0009
SAL3219 0019
SAL3212 5521
SAL3212 5516
SAL3212 5507
SAL3219 0017
SAL3212 5515
SAL3212 5520
SAL3219 0015
SAL3279 0002
SAL3212 5523
SAL3219 0026
SAL3212 4707
SAL3212 5512
SAL3212 5506
SAL3212 5510
SAL3212 5509
T
SAL3638 0002
SAL3614 5312
SAL3612 0719
SAL3628 0003
SAL3612 0751
D
SAL3649 0002
I
SAL3746 0008
SAL3781 0005
SAL3786 6003
SAL3746 0023
SAL3788 0013
SAL3787 7005
SAL3787 7004
SAL3786 2003
SAL3745 0001
SAL3781 0021
C
SAL4557 1699
SAL4564 0002
SAL4562 0041
SAL4562 0040
SAL4564 0005
SAL4564 0018
SAL4543 4016
SAL4564 0001
SAL4557 1699
L
SAL4573 0007
SAL4145 8102
SAL4172 0017
SAL4758 0085
SAL8357 8805
SAL8357 8807
SAL8681 7492
35
