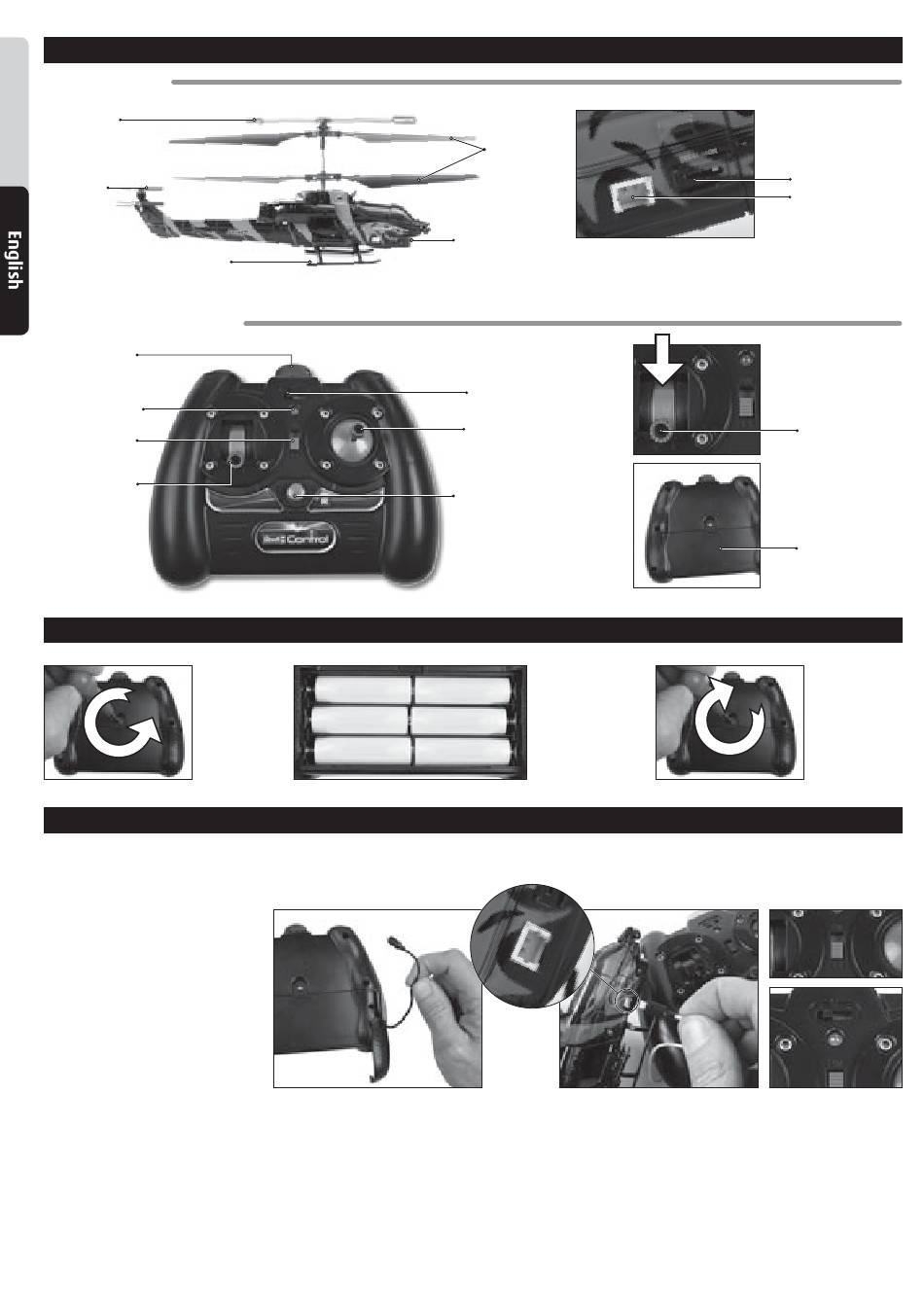

HeLiCoPter:
Stabiliser
Tail rotor
Landing skids
reMote CoNtroLLer:
Infrared transmitter
charging status LED
and POWER ON LED
Switch for power ON/OFF
Actuating regulator
(up & down)
Caution: The battery has to cool off 10-15 minutes before charging and after each flight to prevent the flight battery from being damaged. Always monitor the charging procedure.
1. Switch off the helicopter and the remote
control unit.
2. Pull the charging cable from the compartment on
the lower side of the remote control unit (Fig. 1).
3. Carefully insert the charging cable plug into the
charging socket on the helicopter (Fig. 2). The
plug should fit into the charging socket easily
- DO NOT USE FORCE. If the plug is not inserted
correctly into the charging socket, the helicopter
may be damaged and there may be a risk of
injury.
4. Put the power switch on the remote control unit
to ON (Fig. 3).
5. The charging status LED will now light up orange
to indicate the charging procedure (Fig. 4).
6. As soon as the LED lights up yellow, the charging
procedure is complete.
7. Set the power switch to OFF after the charging
procedure and disconnect the charging cable
from the helicopter again.
6
Helicopter and remote control unit
1. Loosen the
screw on the
battery compart-
ment cover and
push the cover
downwards.
After a charging period of approx. 30 minutes,
the helicopter is able to fly for approximately
8 minutes.
Contradirectional
rotor blades
Searchlight
Channel selector (A, B)
Forward/backward flight
Fly to the right/left
Trimming regulator for
turning to the right/left

Insert Batteries

2. Insert 6 x 1.5 V AA
batteries and observe
the polarity information
as shown in the
battery compartment.
Charging the Helicopter
Pic. 1 Pic. 2
You can also charge your helicopter with the enclosed USB cable:
a. Switch off the helicopter
b. Insert the charging cable plug carefully into the charging socket on the
helicopter. The plug should fit into the charging socket easily - DO NOT USE
FORCE. If the plug is not inserted correctly into the charging socket, the
helicopter may be damaged and there may be a risk of injury.
c. Insert the USB plug into a free USB port
d. The charging procedure is complete as soon as the USB plug lights up
e. After charging, remove the USB plug from the USB port
ON/OFF switch
Supercharging
bushing
Initial position
Caution: This
regulator has
to point down-
wards before
switching on
the remote
control unit.
Battery
compartment
cover
3. Push the battery
compartment
cover up again
and screw it shut.
Pic. 3
Pic. 4
