HELICOPTER
Stabilizer
CONTROLLER
Starting position
Note: The throttle stick and
trimming dial must be in
the down position when
the controller is turned on.
Antenna
Forward/backward
trim dial
Throttle stick
Throttle trim dial
ON/OFF
switch
1. To open the battery cover,
2. Remove the battery holder.
slide it downwards
Note: Before recharging and after every fl ight, always wait 30 minutes for the battery to cool down in order to avoid damage. Never leave the helicopter unattended when recharging.
Always charge the battery on a fi reproof surface and in a fi re-resistant environment.
1. Turn off the helicopter and the controller (pic. 1).
2. Carefully disconnect the helicopter's fl ight cable. (pic. 2).
3. Connect the 220 V mains adapter to the LiPo charger. Insert the mains adapter into
a plug socket. The RED LED on the charger lights up.
4. Insert the white plug on the LiPo battery carefully into the LiPo charger.
Do not force (pic. 3).
5. The battery takes approx. 150 minutes to charge. Never leave charging batteries
unattended. When the battery is fully charged, the green LED on the charger lights up.
Remove the battery from the charger immediately.
Warning: The LiPo battery warms up during the charge process. If it becomes extremely hot or exhibits changes to the outer surface, stop charging immediately.
The helicopter can fl y for about 10 minutes after approximately 150 minutes of charging.
Chinook_Anleitung_03.indd 7
Chinook_Anleitung_03.indd 7

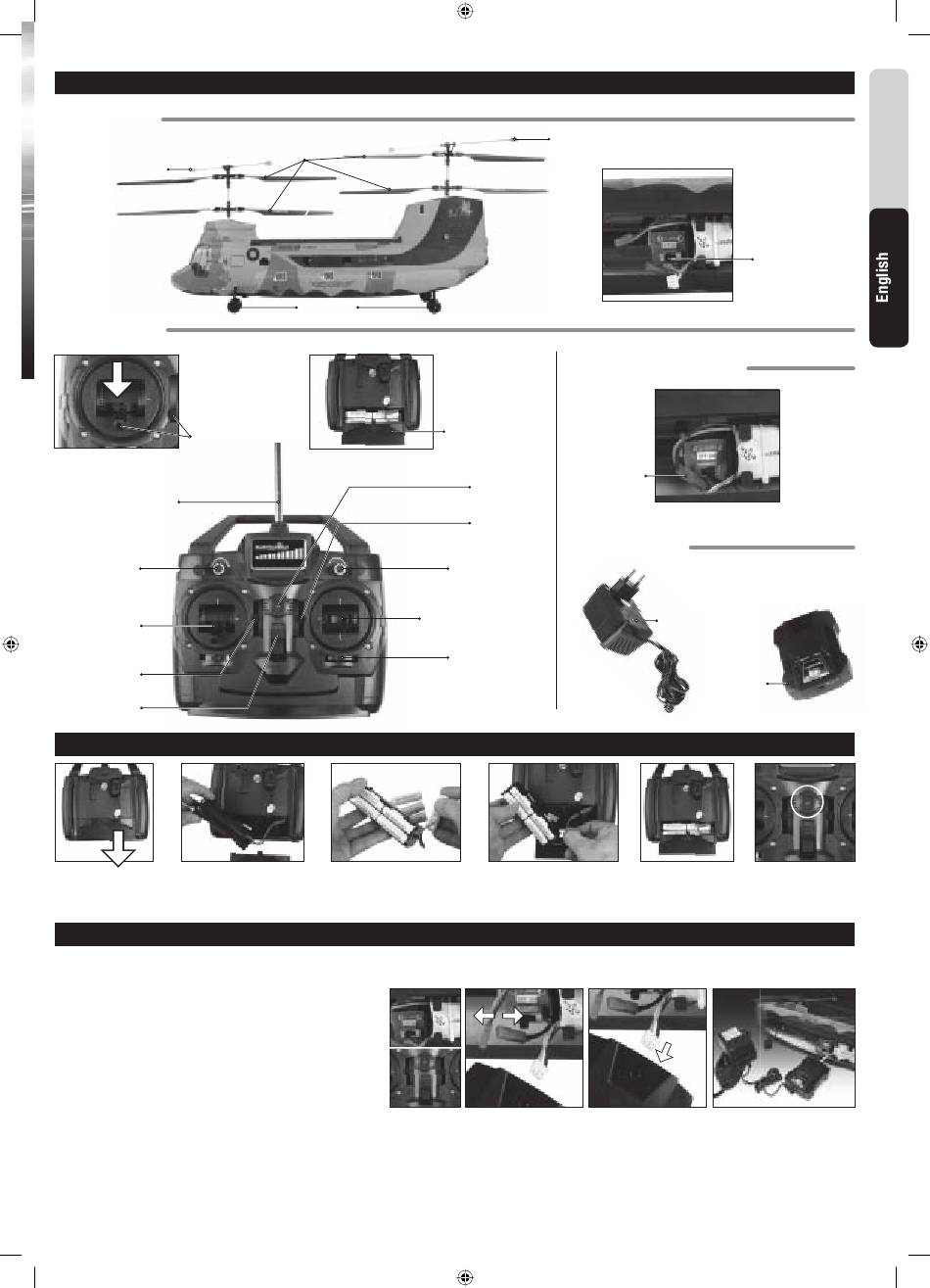

Helicopter and Controller
Coaxial
rotor system
Undercarriage
Battery cover
Left/right
trim dial
Forwards/backwards
fl ight (pitch)
Left/right fl ight (roll)
Roll trim dial
Insert batteries
3. Insert eight 1.5 V AA batteries
according to the polarity in the
battery compartment.
Charging the helicopter battery
pic. 1
Stabilizer
HELICOPTER BATTERY:
Flight cable
LED display
Pitch trimming
ACCESSORIES:
4. Replace the battery holder in the
5. Slide the battery
compartment.
pic. 2
pic. 3
ON/OFF button for
the LiPo battery
on underside of
helicopter
220 V AC adapter
LiPo charger
6. If the LED emits a
compartment cover
continuous green light,
back up and close.
the battery charge is OK.
