3. Layout, Connections & Jumper Settings
3.2 Connections
USB 2.0 B-Port:

3.3 Jumper Settings

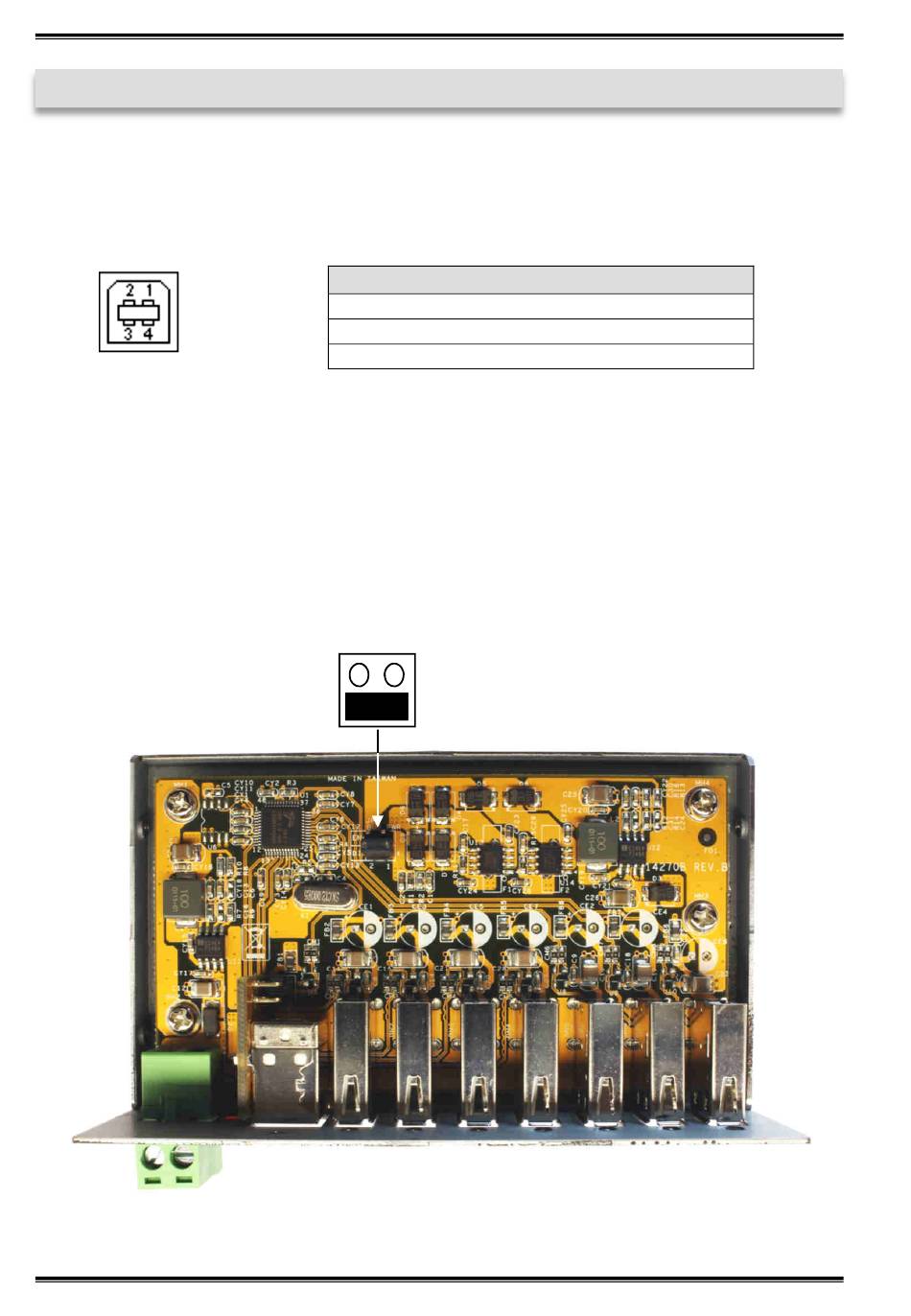

The EX-1177HMV comes with the setting Self-Power. You also have the possibility
the EX-1177HMV to supply with Bus-Power. For this you open the case with the four
screws on both sides. Then you must set the jumper JP1 from DIS (Disable) to ENA
(Enable). See the following picture.
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
USB 2.0 B-Port
Pin Signal
1 VCC
2 DATA-
JP1
ENA
DIS
10
EX-1177HMV
Pin Signal
3 DATA+
4 GND
