DeVilbiss iFill 535D Servicehandbuch Seite 78

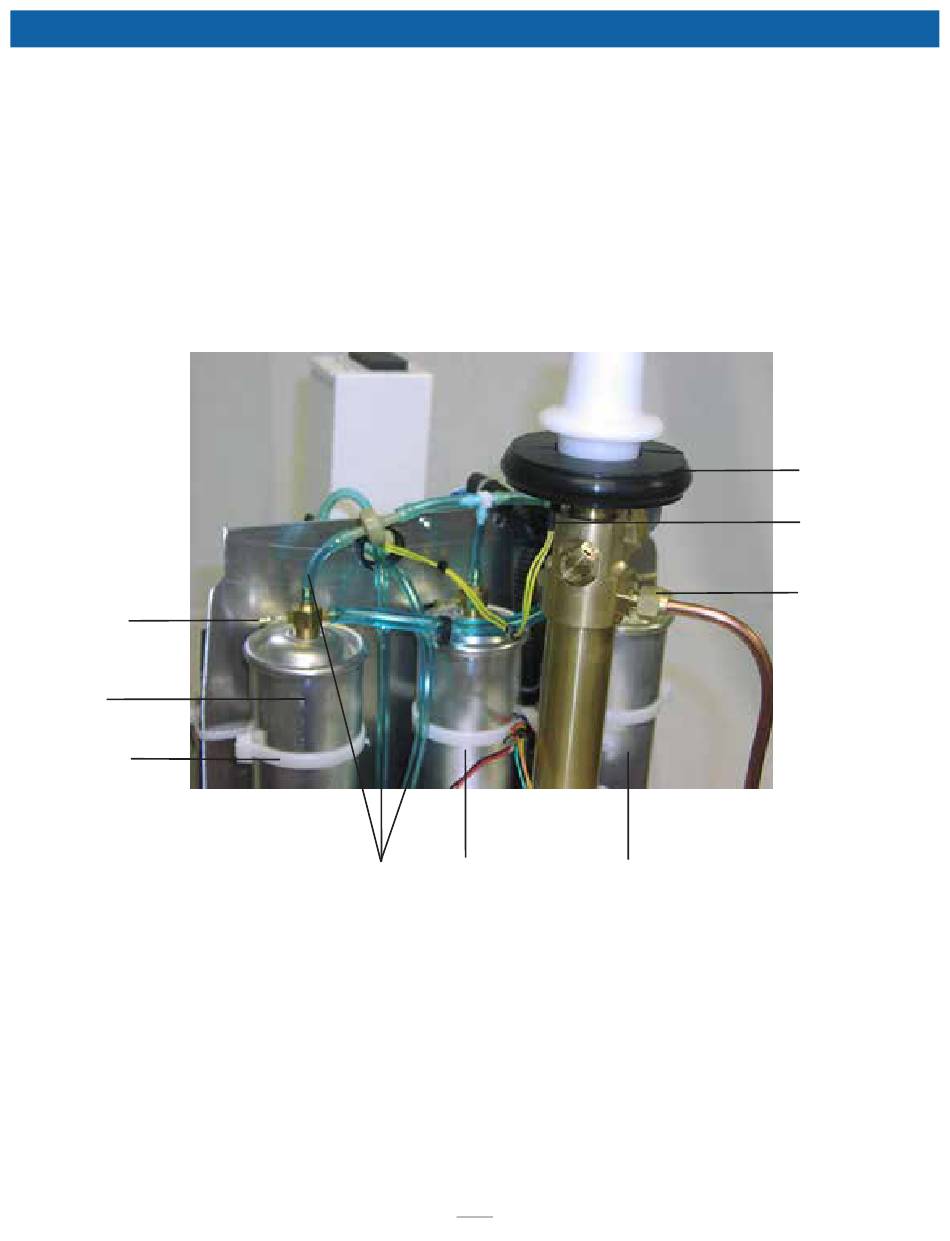

figure 11 - interior, BeDs anD accumuLator tank
Sieve Bed
Test Point
Left Sieve
Bed
Cable Tie
LT-1929
F I G U R E S , D I A G R A M S , A N D V I E W S
Tubing 1/8" ID Accumulator Right
Tank Sieve Bed
30
Support Grommet
Cylinder Detect
Switch
O2 Inlet to
2nd Stage
