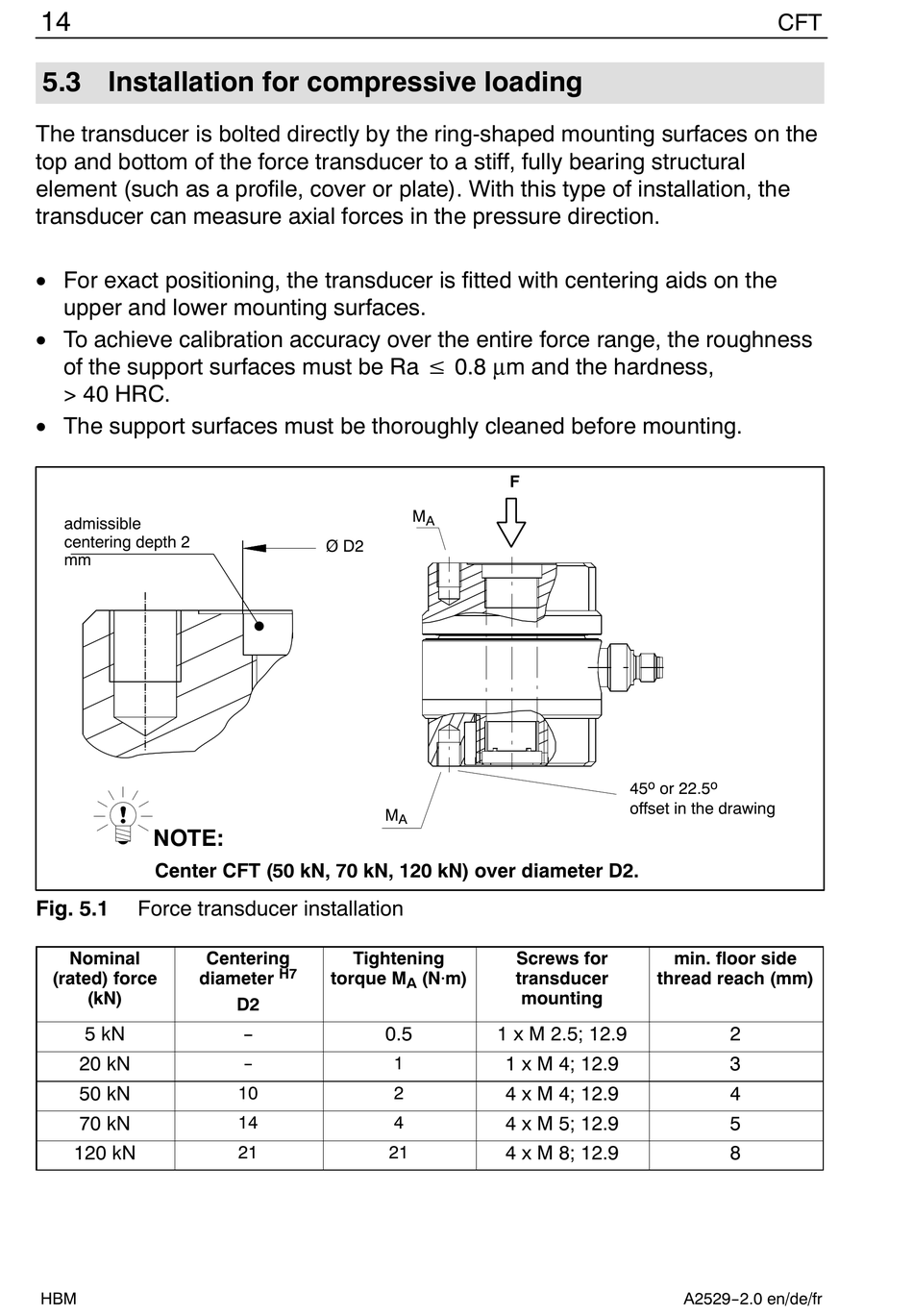

5.3 Installation for compressive loading

The transducer is bolted directly by the ring‐shaped mounting surfaces on the
top and bottom of the force transducer to a stiff, fully bearing structural
element (such as a profile, cover or plate). With this type of installation, the
transducer can measure axial forces in the pressure direction.
• For exact positioning, the transducer is fitted with centering aids on the
upper and lower mounting surfaces.
• To achieve calibration accuracy over the entire force range, the roughness
of the support surfaces must be Ra v 0.8 μm and the hardness,
> 40 HRC.
• The support surfaces must be thoroughly cleaned before mounting.
admissible
centering depth 2
mm
NOTE:
Center CFT (50 kN, 70 kN, 120 kN) over diameter D2.
Fig. 5.1 Force transducer installation
Nominal Centering
(rated) force diameter
(kN)
5 kN
20 kN
50 kN
70 kN
120 kN
HBM
Ø D2
M
A
Tightening
H7
torque M
A
D2
- 0.5
- 1
10 2
14 4
21 21
F
M
A
Screws for
(NVm) transducer
mounting
1 x M 2.5; 12.9
1 x M 4; 12.9
4 x M 4; 12.9
4 x M 5; 12.9
4 x M 8; 12.9
CFT
o o
45 or 22.5
offset in the drawing
min. floor side
thread reach (mm)
2
3
4
5
8
