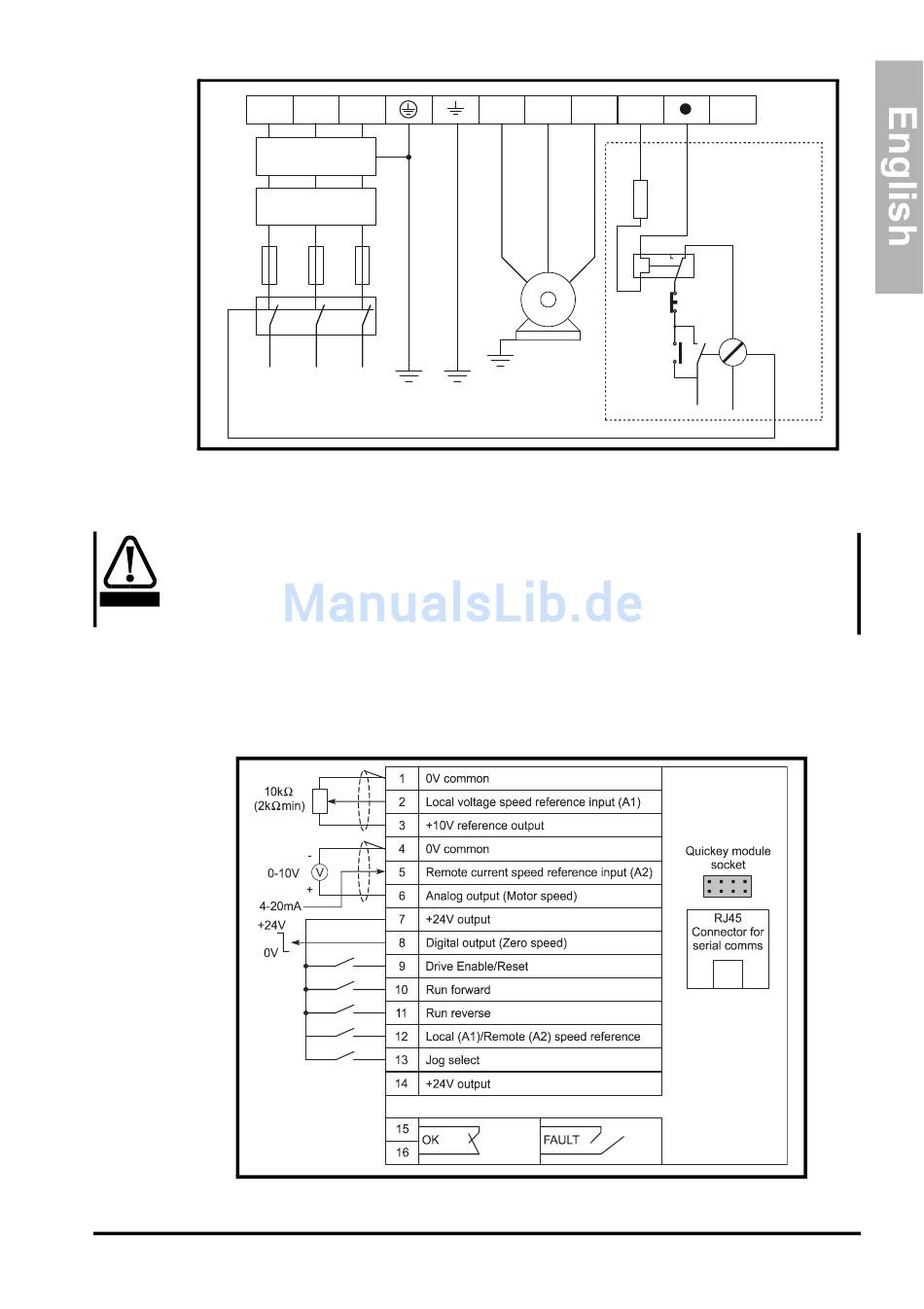

Figure 5.3 Commander SE Size 5 power terminal connections
5.1.1

Thermal protection for an optional braking resistor

Figure 5.3 shows a typical circuit arrangement for braking resistor protection.
This thermal protection must disconnect the AC supply from the drive if the
resistor becomes overloaded. (Do not use overload opening contact in line with
WARNING
braking resistor).
For further information on braking and braking resistor sizing, refer to the Commander
SE Advanced User Guide.
5.2

Control terminal connections

The terminal connections are shown in Figure 5.4. As default - in positive logic.
Maximum control terminal screw torque: 0.6 Nm (5.5 lb in)
Commander SE User Guide
Issue Number 9
L2 L3
Optional RFI
filter
Optional
line reactor
L2 L3
Mains
Supply Motor
Supply
Ground Ground
Figure 5.4 Control terminal connections
