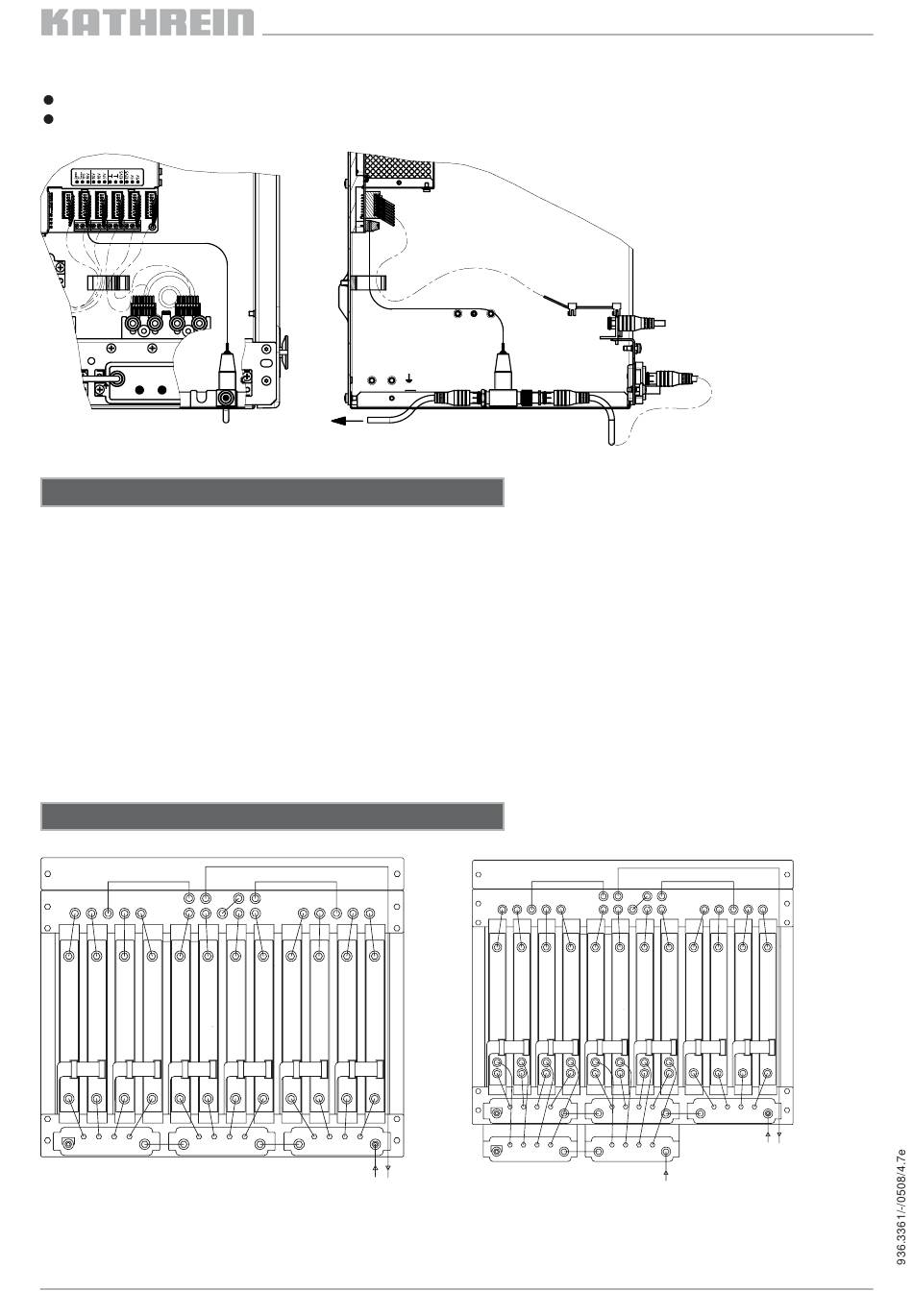

Mounting the remote feed diplexer:
Secure the remote feed diplexer, with the RF cables attached, to the clip in the fl oor plate
Connect the remote feed diplexer to the power supply terminal (18 V) on the power supply:

Getting started

1. Install the system as described under "Installation procedure"
2. Attach the channel units and secure them with screws. For identifi cation, use the labels supplied
3. Connect the RF cables to the channel units
4. Plug the power supply bus into the connections on the channel units
5. Connect the system to the mains.
6. If necessary, program the channel units with the controller UFG 300 (not included), equalise the input levels
(see maximum operating level and operating level range for the channel units) and save the settings. To do this,
connect the controller to the 6-pin socket on the channel unit that is to be programmed, using the controller cable
7. On completion of programming, disconnect the controller cable from the channel unit
8. Alternatively the programming can be performed using the optional data bus de-multiplexer UFX 314 (BN 20610071;
not included). This can be operated in conjunction with the controller or with a PC and the controller software USW 30
(not included)
Confi guration variants with UFG 412
0/12
Please check that the input level for the channel units at
the H input does not fall below the min. permissible value
(see also the user instructions for the channel unit).
to the Satellite system
0/12 + 8
2 x UFZ 300 are necessary (not included with the
base units UFG 412).
R = Terminating resistor
