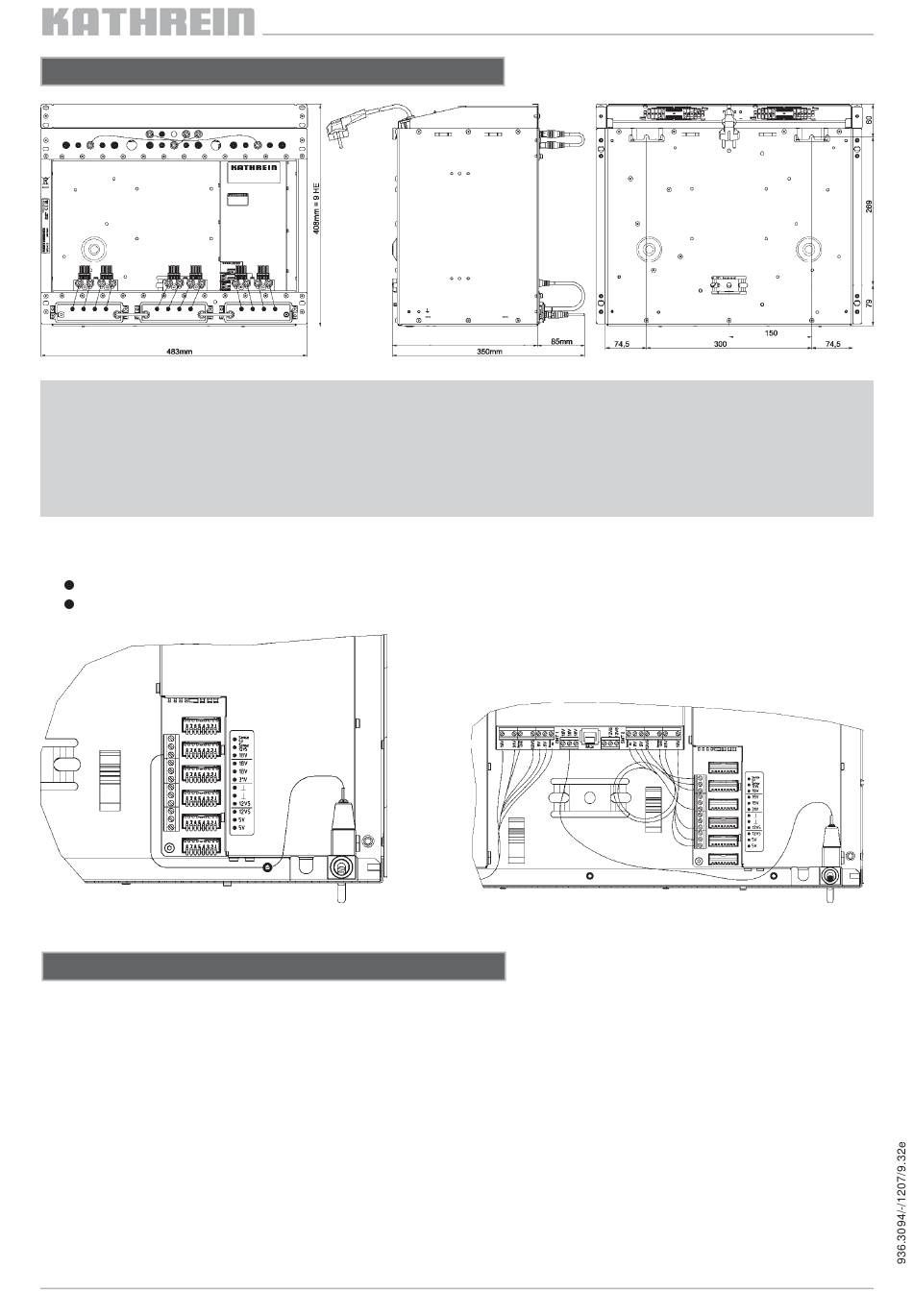

Installation dimensions

Note:
- If the LNB must be supplied from this base unit, and additional WFS 27
remote feed diplexer (not included) is necessary.
- Connect the LNB power supply (18 V) to the horizontal polarisation of the Sat-IF receiver.
- If a further LNB is present in the Sat reception system, a separate NCF 31 remote feed power supply unit
(not included) must be used.
Mounting the remote feed diplexer:
Secure the remote feed diplexer with the HF cables attached to the clip in the fl oor plate
Connect the remote feed diplexer to the power supply terminal (18 V):
UFG 412

Getting started

1. Install the system as described under "Installation procedure"
2. Attach the channel units and secure them with screws. For identifi cation, use the labels supplied
3. Insert the HF cables to the channel units
4. Plug the power supply bus into the connections on the channel units
5. Connect the system (power supply unit and fans) to the mains
6. If necessary, program the channel units with the UFG 300 controller (not included) programmer, equalise the input levels
(see maximum operating level and operating level range for the channel units) and save the settings. To do this, connect
the controller to the 6-pin socket on the channel unit that is to be programmed, using the controller cable
7. On completion of programming, disconnect the controller cable from the channel unit
8. Alternatively the programming can be performed using the optional UFX 314 data bus de-multiplexer (BN 20610071;
not included). This can be operated in conjunction with the controller or with a PC and the USW 30 controller software
(not included)
265mm (Installation depth in a
19" cabinet)
- On the UFG 412, to the power supply unit
- On the UFG 412/R to the redundancy unit
UFG 412/R
Dimensions for wall mounting
