3.4 PRODUCT INSTALLATION

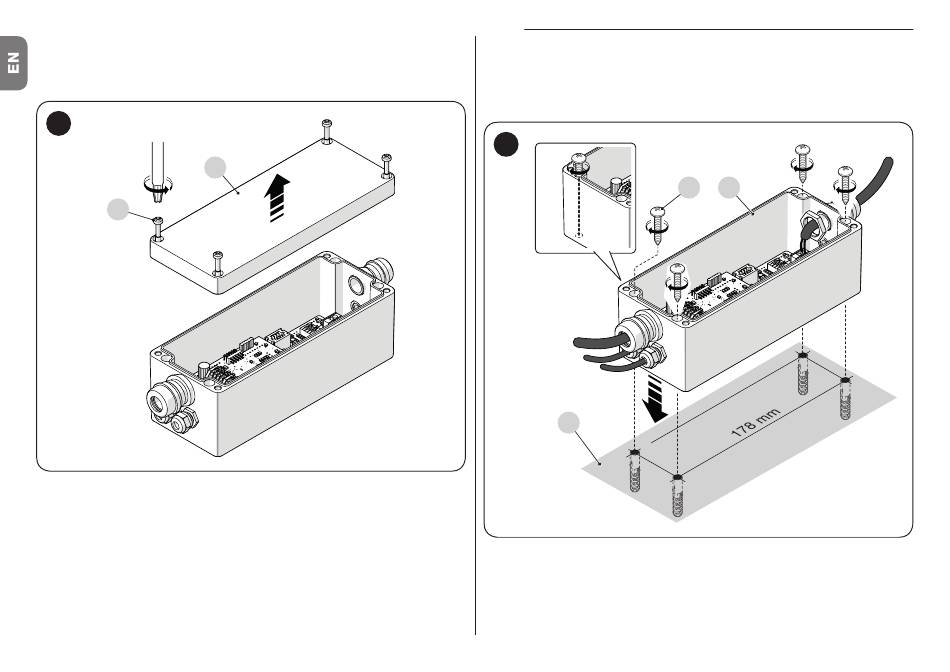

To secure the PatioControl ("Figure 4" and "Figure 5"):
1. loosen the screws (A) and remove the cover (B) of the box
4
B
A
drill the surface (C), observing the measurements shown
2.
in the figure, and fit suitable wall plugs (not supplied)
3. position the box (D) and fasten it with the screws (E) (not
supplied)
make the electrical connections by operating as de-
4.
scribed in the "ELECTRICAL CONNECTIONS" chapter.
8 – ENGLISH
l
To install any other devices used on the automated
system, refer to the respective instruction manuals.
5. after making the electrical connections, put the cover (B)
back on and tighten the screws (A).
5
C
4 5
m m
E D
