4.3 NUMBER OF MOTORS AND DIRECTION OF
ROTATION CHECK
7

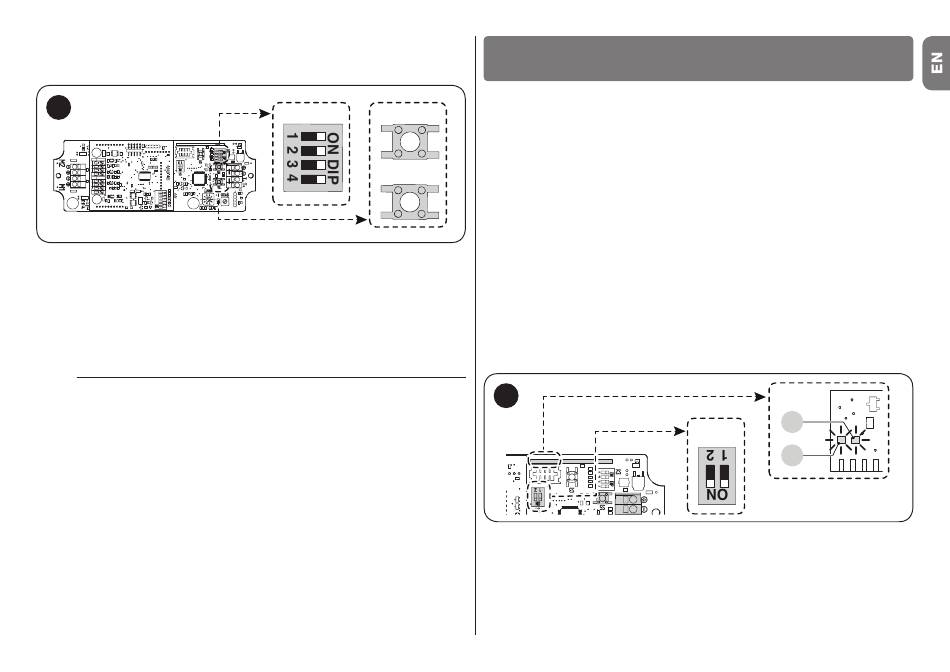

After having made the electrical connections, you must:
on the selector for accessory functions [S2]: if there
1.
is only one motor set switch 3 to "ON"; if there are two
motors set switch 3 to "OFF"
2. check the direction of the rotation of the motor: briefly
press button [S4] to open the patio; briefly press button
[S5] to close the patio.
a
In the event of inverted opening/closing, invert the
position of the two motor connection wires.
S2 S4
S5
5

PROGRAMMING

The receiver is set by default to control the motor. To use it to
5 PROGRAMMING
control the LEDs you need to program the LED channels.
The control of LED units can be set to two different configura-
tions:
– Option A: in this configuration, a command given to one or
more LED channels will switch off the other channels
– Option B: in this configuration, a command given to one or
more LED channels is exclusive and will not influence any oth-
er channels. They will remain in their previous condition (on
or off).

5.1 TRANSMITTER PAIRINGS

5.1.1 Mode I

8
Selector [S1]: remote unit (1 = ON); LED unit (2 = OFF).
Pairing the first transmitter:
on the transmitter to be memorised: press button [PRG]
1.
for 7 seconds; LED "L1" (red) will flash 3 times.
L2
S1
L1
ENGLISH – 11
